2. Acceptable width range must be within specifica-
tions.

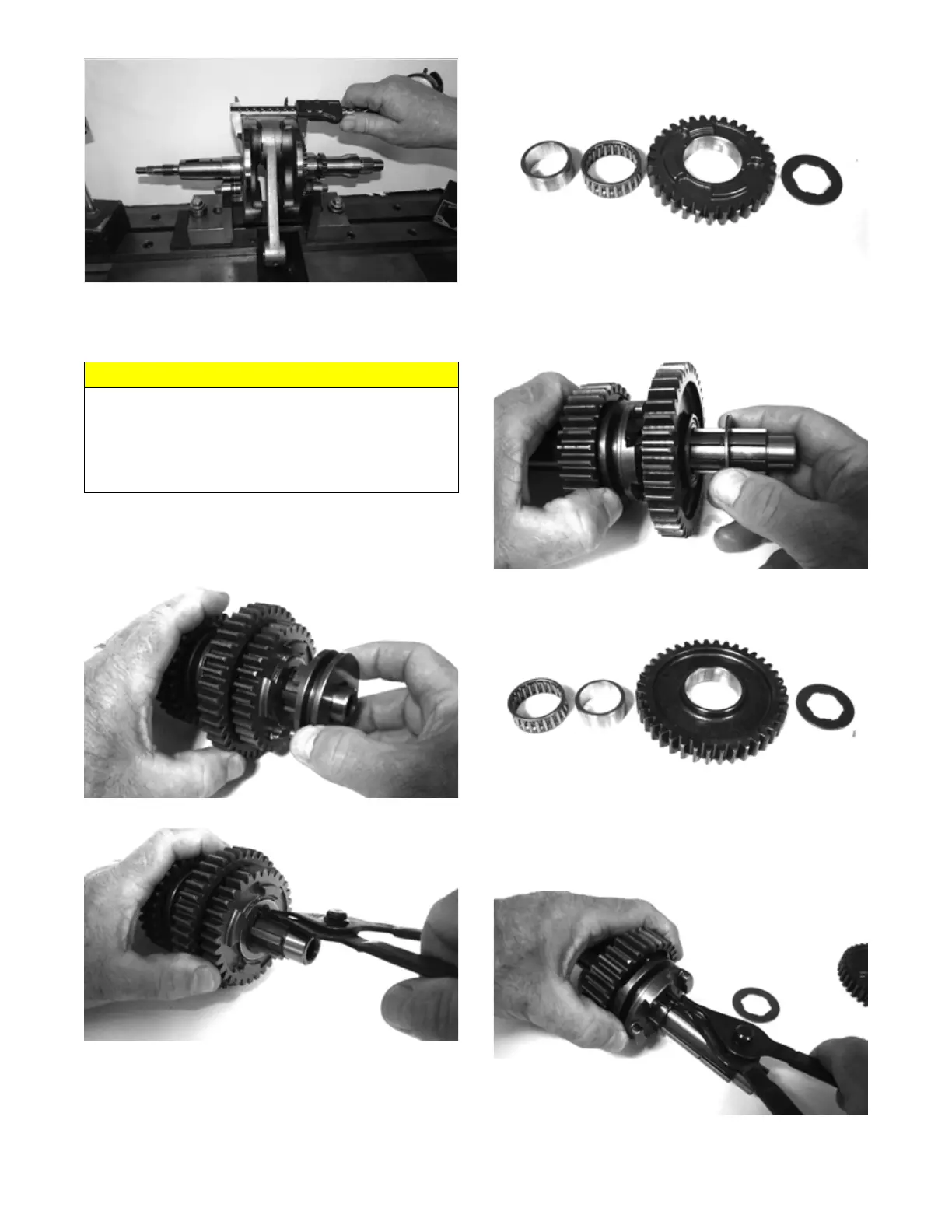

COUNTERSHAFT
Disassembling
1. Remove the reverse driven gear dog; then remove
the circlip securing the reverse driven gear.
FI663
FI664
2. Remove the splined washer; then remove the reverse
driven gear along with the bearing and bushing.
FI665
3. Remove the low driven gear washer; then remove the
low driven gear along with the bearing and bushing.
FI666
FI667
4. Remove the splined washer; then remove the circlip
securing the high-low sliding dog. Remove the slid-
ing dog.
FI668
CAUTION
When disassembling the countershaft, care must be
taken to note the direction each major component (dog,
gear) faces. If a major component is installed facing the
wrong direction, transmission damage may occur and/
or the transmission will malfunction. In either case,
complete disassembly and assembly will be required.
