Installing the Tracer AdaptiView
Display
During shipment, the Tracer AdaptiView display is boxed,
shrink-wrapped, and located behind the control panel. The
display must be installed at the site.
Important: For best results, Trane, or an agent of Trane,
must install the Tracer AdaptiView display and
support arm.
1. Unwrap the control panel and display arm. Locate the
box containing the Tracer® AdaptiView™ display
behind the control panel (labeled A in the following
figure).
2. After the box containing the display has been removed,
remove the shipping bracket from the back of the
control panel (labeled B in the following figure).
3. Remove the display from the box.
Note: Display screws are M4 (metric size 4), 6 to 8 mm
long, and are shipped with the display.
4. Plug the power cable (labeled C in the following figure)
and the Ethernet cable (labeled D in the following
figure) into the bottom of the display.
Note: Both cables are already present and extend from
the end of the display arm.
5. Adjust the Tracer AdaptiView display support arm so
the base plate that attaches to the display is horizontal.
CAUTION
Tension in Display Support Arm!
Failure to follow instructions below could result in
unexpected movement of the spring-loaded
support arm which could result in minor to
moderate injury.
Ensure that the support arm is in the full upright
position when removing the Tracer AdaptiView
display from the support arm.
Note: Review “Adjusting the Tracer
®
AdaptiView™
Display Arm,” p. 53 before attaching the display
as some adjustments may be required prior to
attaching the display to the support arm base.
6. Position the Tracer AdaptiView display—with the LCD
screen facing up—on top of the display support arm
base plate.
Note: Ensure the Trane logo is positioned so that it will
be at the top when the display is attached to the
display support arm.
Important: Use care when positioning the Tracer
AdaptiView display on top of the support
arm base plate and do NOT drop the
display.
7. Align the four holes in the display with the screw holes
in the display support arm base plate.
8. Attach the Tracer AdaptiView display to the display
support arm base plate (labeled E in the following
figure) using the M4 (metric size 4) screws referenced
in step 3.

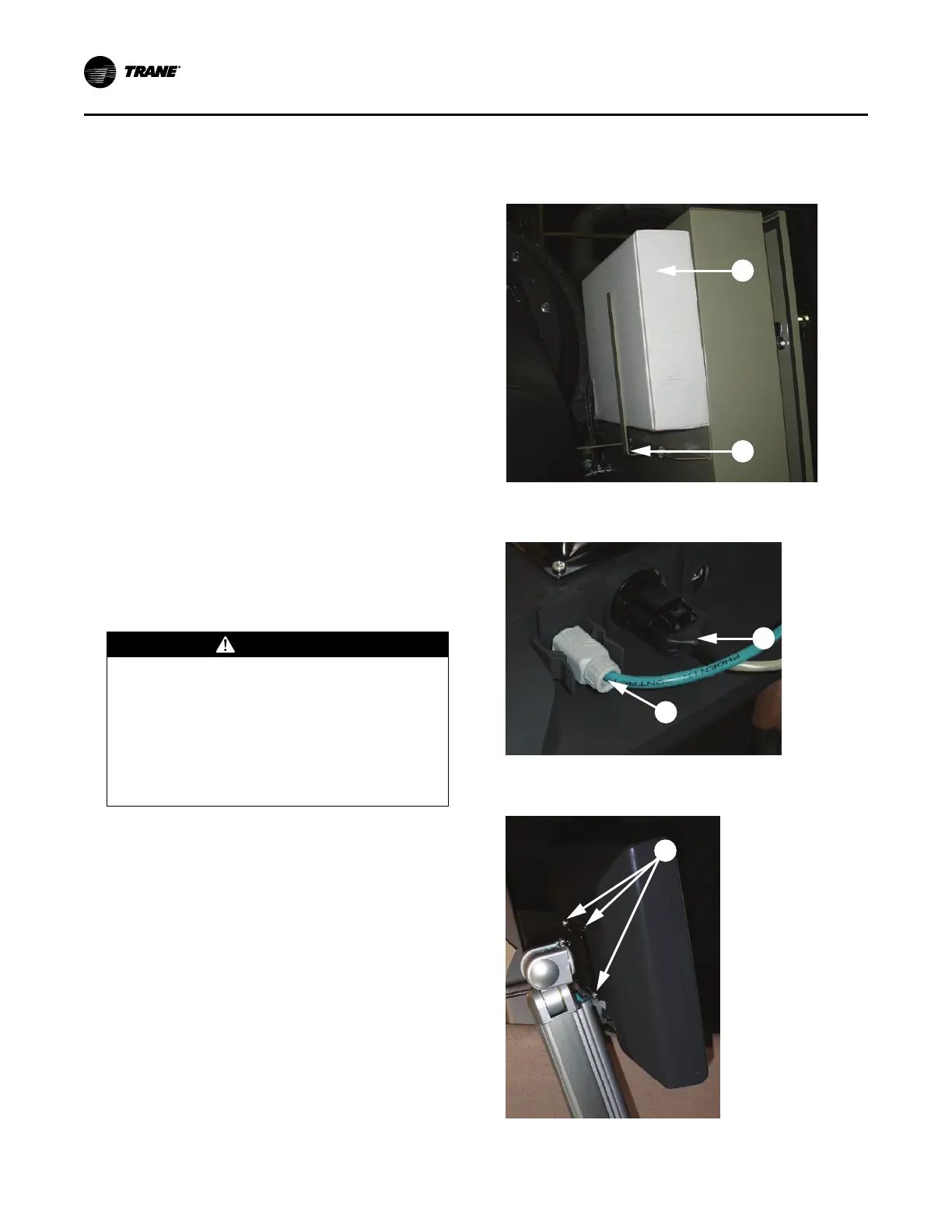

Figure 32. Tracer
®
AdaptiView™ shipping location
A
B
Figure 33. Power cable and Ethernet cable
connections
D
C
Figure 34. Display attachments to the support arm
base plate
E
