Trane CenTraVac CVHE - Condenser Water Piping Connection Sizes; Waterbox Locations Important Notice; Grooved Pipe Coupling

CVHE-SVX005C-EN
35

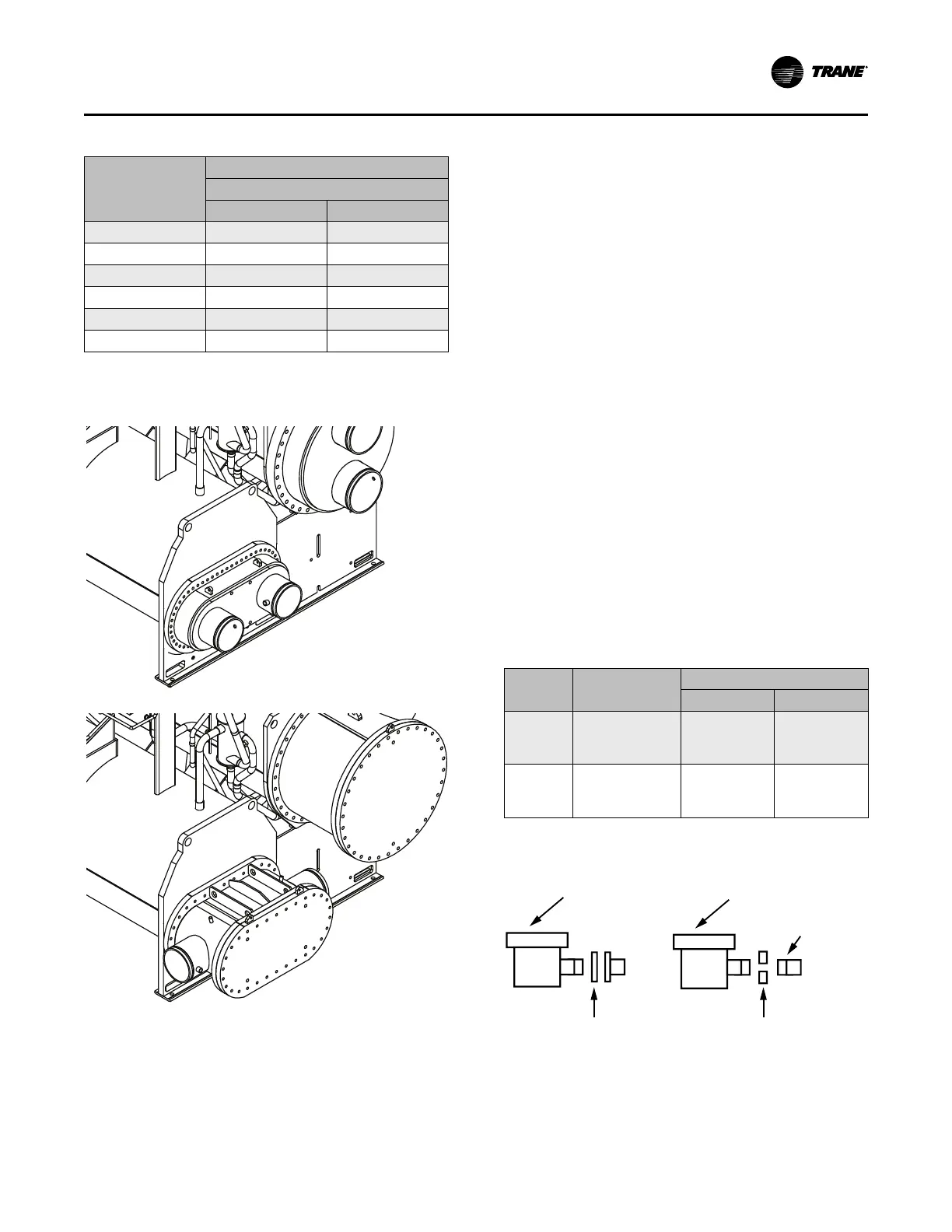

Table 7. Condenser water piping connection sizes
CDSZ
(a)
Nominal Pipe Size
2-Pass
in. mm
032 6 168.3
050 8 219.1
080 10 273.0
142 12 323.9
210 14 355.6
250 14 355.6
(a)
CDSZ =Condenser Shell Size; S = Short Shell, L = Long Shell, E = Extended
Shell
Figure 15. Typical grooved pipe connection
Waterbox Locations
Important: Do NOT exchange positions of marine-style
waterboxes. Proper unit operation and proper
water flow could be affected by repositioning
marine-style waterboxes. Contact
CenTraVac™ Chiller Technical Service for
more information.
If necessary, the non-marine-style waterboxes on each
shell—whether evaporator or condenser—can be switched
end-for-end to obtain the desired piping arrangement.
If removal of waterboxes is necessary, refer to “Waterbox
Removal and Installation,” p. 94.
If the waterboxes on any of the shells are exchanged end-
for-end, be sure to reinstall them right-side up to maintain
the correct baffle arrangements. Use a new gasket with
each waterbox cover.
Grooved Pipe Coupling
A customer-supplied, standard flexible grooved pipe
coupling (Victaulic
®
Style 77 or equivalent) should be used
to complete the Victaulic
®
connection for both 150 psig
(1034.2 kPaG) and 300 psig (2068.4 kPaG) waterboxes.
When a flexible coupling such as this is installed at the
waterbox connections, other flexible piping connectors (i.e.,
braided-steel, elastomeric arch, etc.) are not usually
required to attenuate vibration and/or prevent stress on the
connections.
Table 8. Water piping connection components
Unit Model
Unit Connection
Type
Customer Piping Connection
Victaulic
®
Flanged
CVHE and
CVHG
Flanged (Condenser
032–050 150 psig
[1034.2 kPaG] non-
marine only)
Customer
provided
Victaulic
®
coupling
No adapter
required
CVHE,
CVHF, and
CVHG
Victaulic
®
(all others)
Customer
provided
Victaulic
®
coupling
Trane provided
Victaulic
®
-to-
flange adapter
Figure 16. Customer piping connection types
Flanged Victaulic®
Waterbox
Waterbox
Customer
Flange Adaptor
Trane provided
Style 77 Flexible
Customer provided
Installation: Water Piping
