CVHE-SVX005C-EN
29
Leveling the Unit
The chiller must be set level within 1/16 in. (1.6 mm).
1. Measure and make a punch mark an equal distance up
from the bottom of each foot of the chiller.
2. Suspend a clear plastic tube along the length of the
chiller as shown in the following figure.
3. Fill the tube with water until the level aligns with the
punch mark at one end of the chiller.
4. Check the water level at the opposite mark. If the water
level does not align with the punch mark, use full length
shims to raise one end of the chiller until the water level
at each end of the tube aligns with the punch marks at
both ends of the chiller.
5. Once the unit is level across its length, repeat the first
three steps to level the unit across its width.

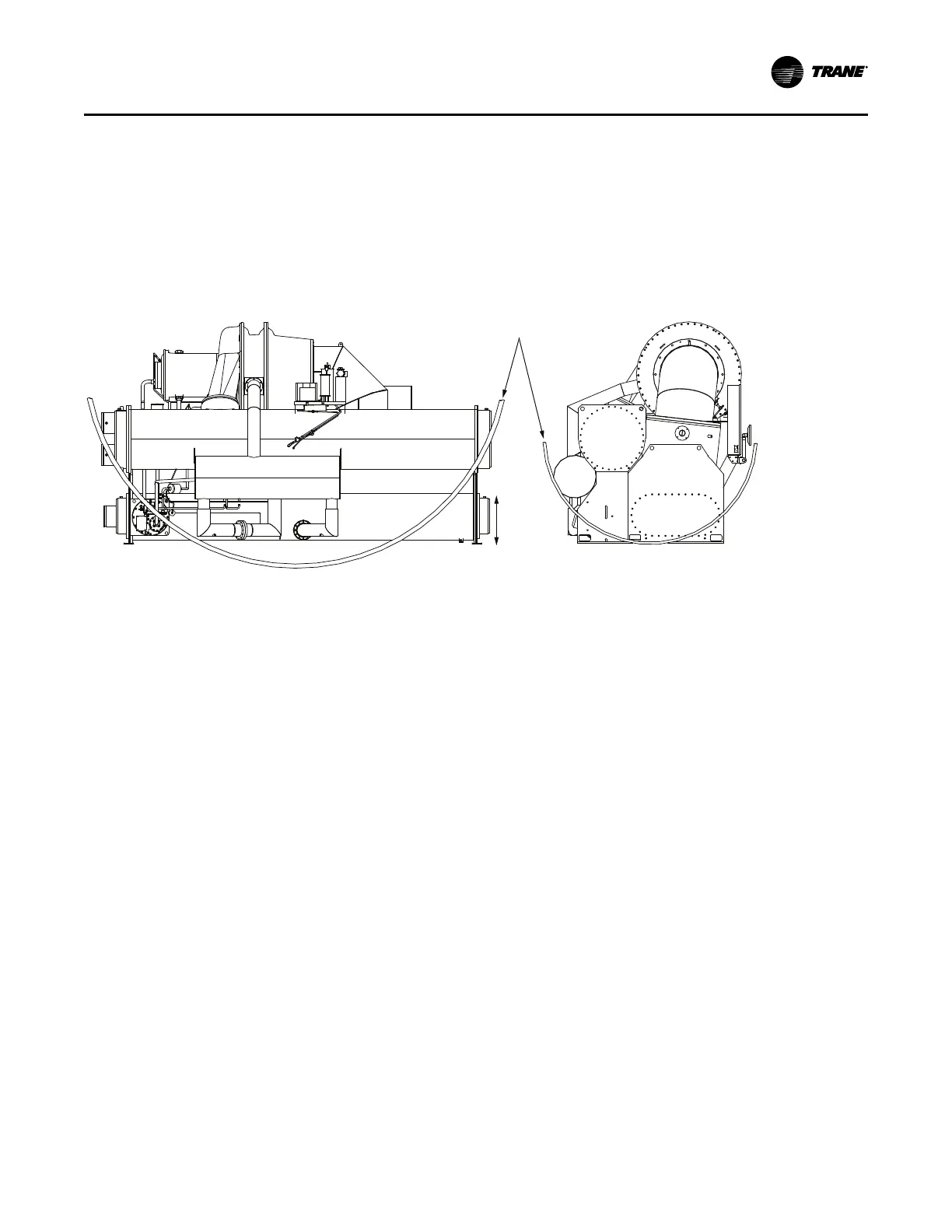

Figure 9. Leveling the chiller
Note: Use of a laser level is an acceptable alternative
method to level the unit.
Important: Immediately report any unit damage incurred
during handling or installation at the job site to
the Trane sales office.
Installation: Mechanical
