CVHE-SVX005C-EN
55
Wi-Fi
For installation instructions, see Trane
®
Wi-Fi Module
Installation Instructions (BAS-SVN042*-EN).
Recommended routing path for supplied Wi-Fi cable is
shown in figure below. Device may be remote mounted in
order to obtain a stronger signal.

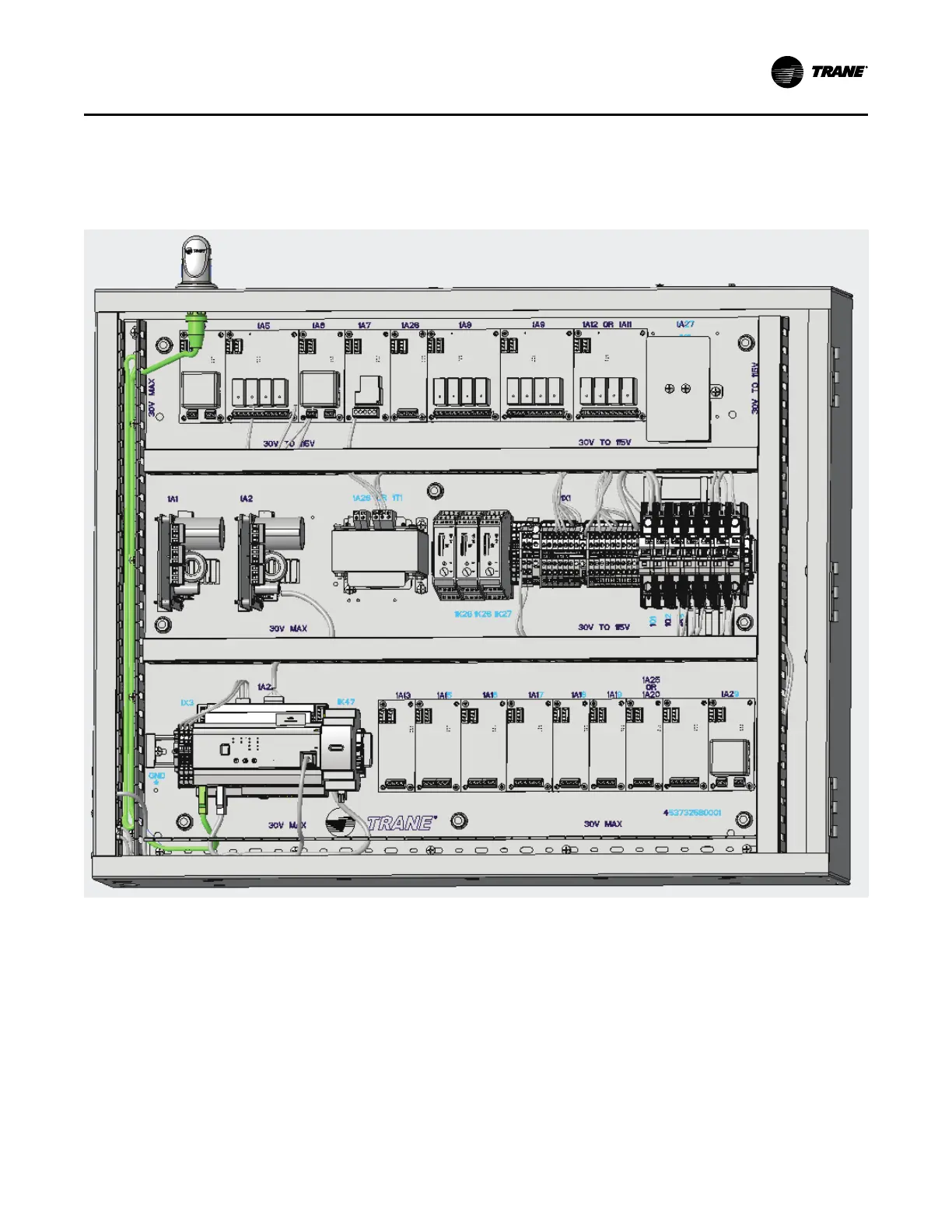

Figure 37. Wi-Fi wire harness routing path
Installation: Controls
