54
CVHE-SVX005C-EN
Module Installation
Air-Fi
®
For installation instructions, see Air-Fi
®
Wireless
Communications Interface (WCI) Installation Instructions
(BAS-SVN038*-EN).
Recommended routing path for supplied Air-Fi cable is
shown in figure below. Device may be remote mounted in
order to obtain a stronger signal.

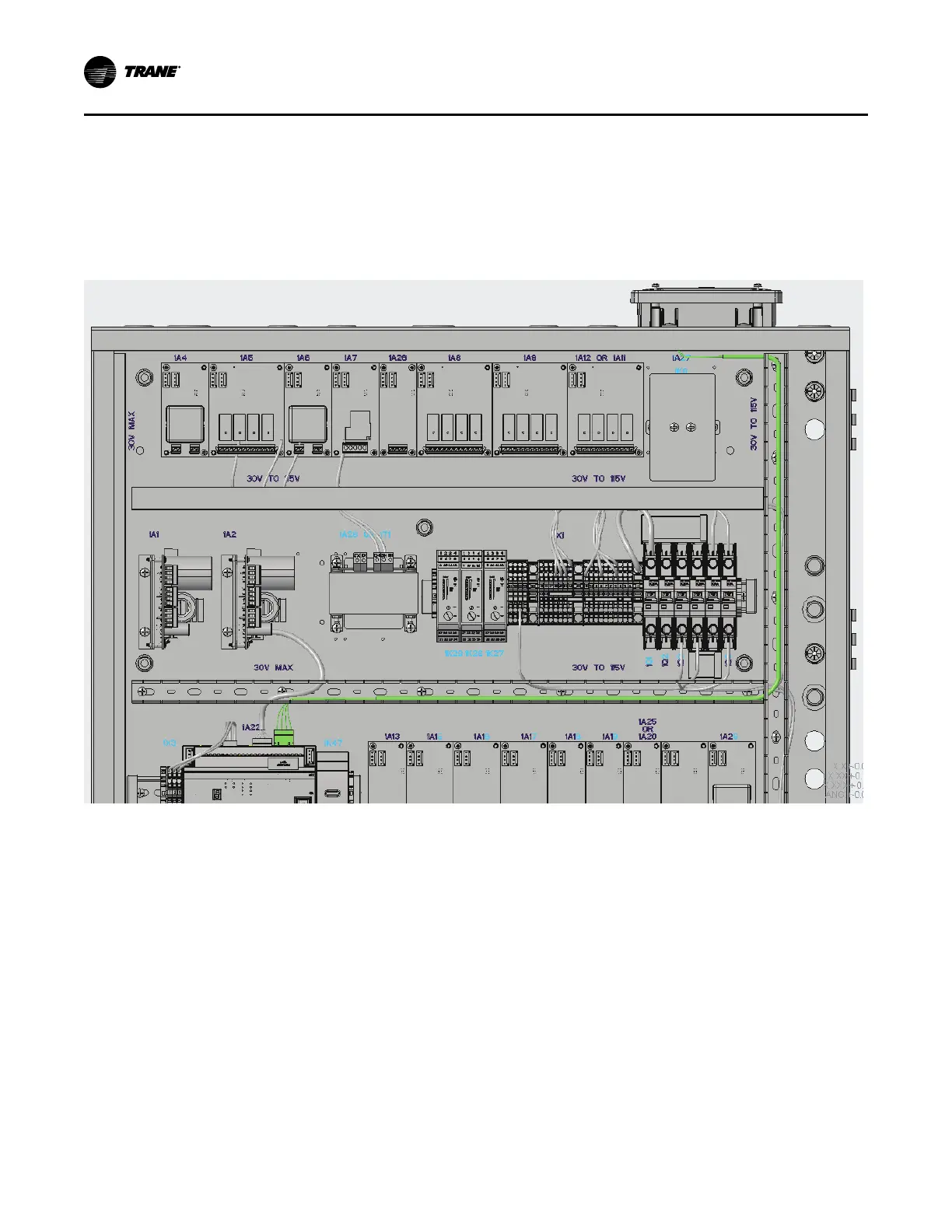

Figure 36. Air-Fi
®
wire harness routing path
Installation: Controls
To Next Page
