DISPLAY & KEYPAD DETAILS

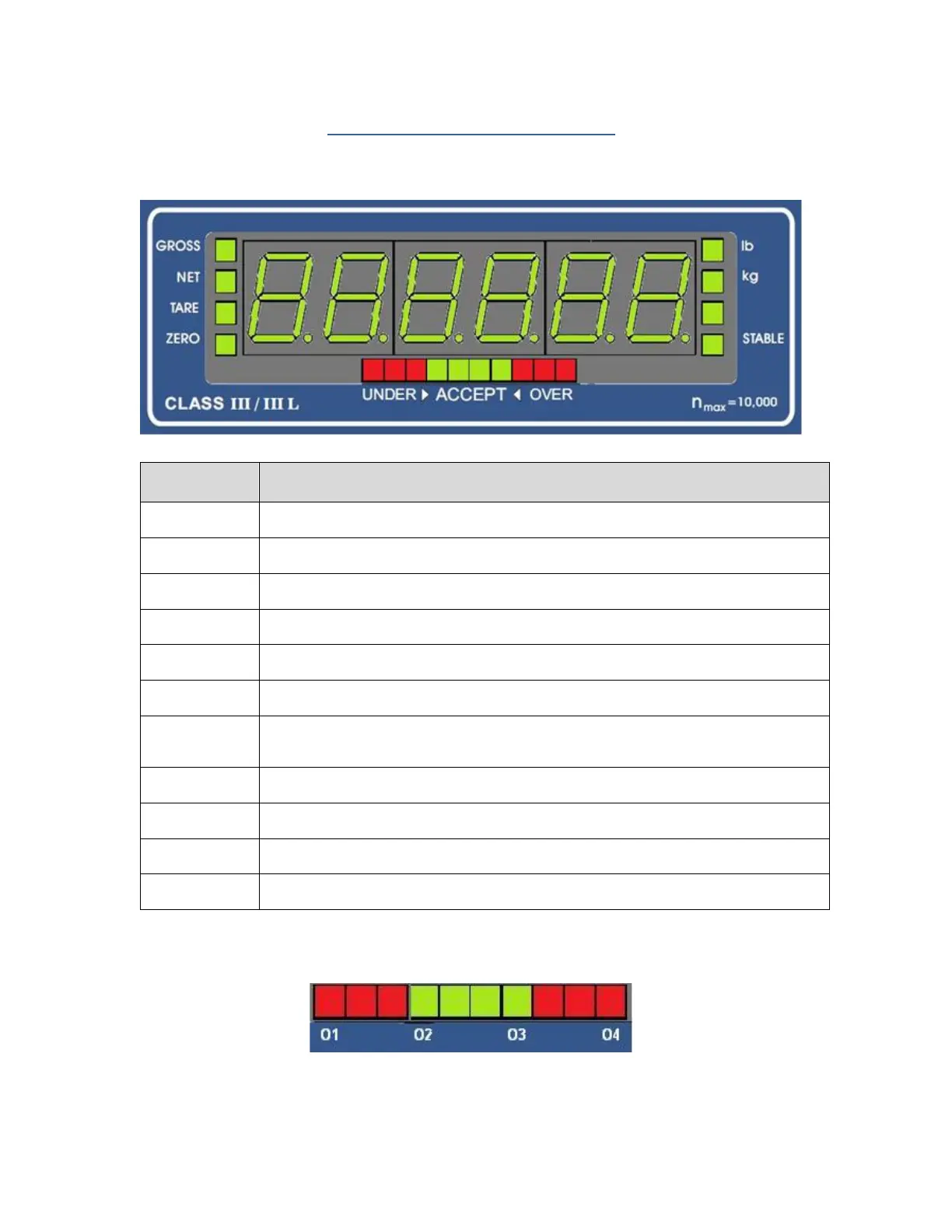

This model utilizes a 6-digit LED (Light Emitting Diode) display, an LED bar graph and eight (8)
annunciators.
The indicator is in Gross Weight mode.
The indicator is in Net Weight mode.
A tare weight has been established in the system.
Displays when the reading is at “Center of Zero”.
The displayed weight reading is in pounds (lb).
The displayed weight reading is in kilograms (kg).
The displayed reading is in pieces (piece counting). Also used to indicate that weight hold
/ peak hold mode is active.
Displays whenever the indicator reading is not in motion.
The weight of the item on the platform is below the target weight. (Checkweigher)
The weight of the item on the platform is within the target weight range. (Checkweigher)
The weight of the item on the platform is above the target weight. (Checkweigher)
When not in Checkweigher mode, the LED bar graph shows the status of each one of the four
digital outputs (O1 – O4):
