Chapter8 AT5720 Check Tag-to-MPRX
Required Supplies
Check Tag Kit (TransCore P/N 19114-00
Before assembling the check tag antenna kit, make sure you have the necessary supplies and tools for
this task.
You need the following additional materials and/or tools to complete the installation.
• AT5720 Check Tag(s)
• Wire stripper
• Multiprotocol Reader Extreme

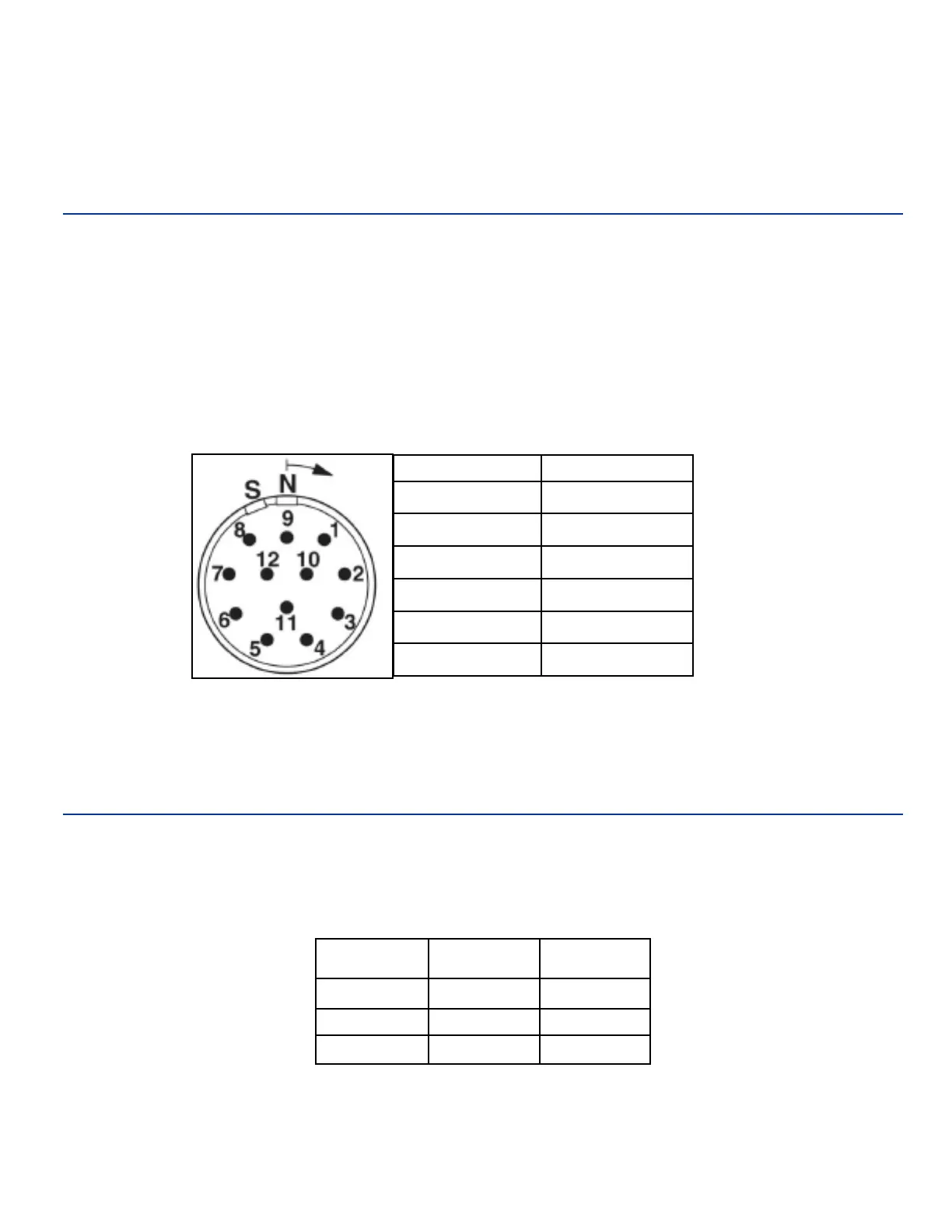

Figure 24 shows the check tag pinouts.
To assemble the kit for two check tags
1. Strip the cable insulation to expose the three check tag wires. Strip wire insulation approximately
1/4 inches to expose bare wire.
For Check Tag 0, connect wires as listed in Table 30.
Table 30 Check Tag 0 Wire Assignments
Wire Color Pin No.
Ground Blue 3
Power Brown 1
Data Gray 7
2. If connecting two check tags, connect wires as listed in Table 31.
Pin Number Operation
1 +12VDC OUT
3 I/O GROUND
5 PULSE OUT
7 CTAG 0 Data
8 CTAG 1 Data
10 I/O GROUND
Figure 24 Sense CTAG Pinouts
MPRX User Guide
TransCore Proprietary
8–104
