MPRX User Guide
TransCore Proprietary
1–18
Reader
The MPRX consists of an input/output (I/O) module, a power supply, a reader logic board (also called a tag
decoder), and a radio frequency (RF) transmitter/ receiver (called the RF module) in a compact enclosure.

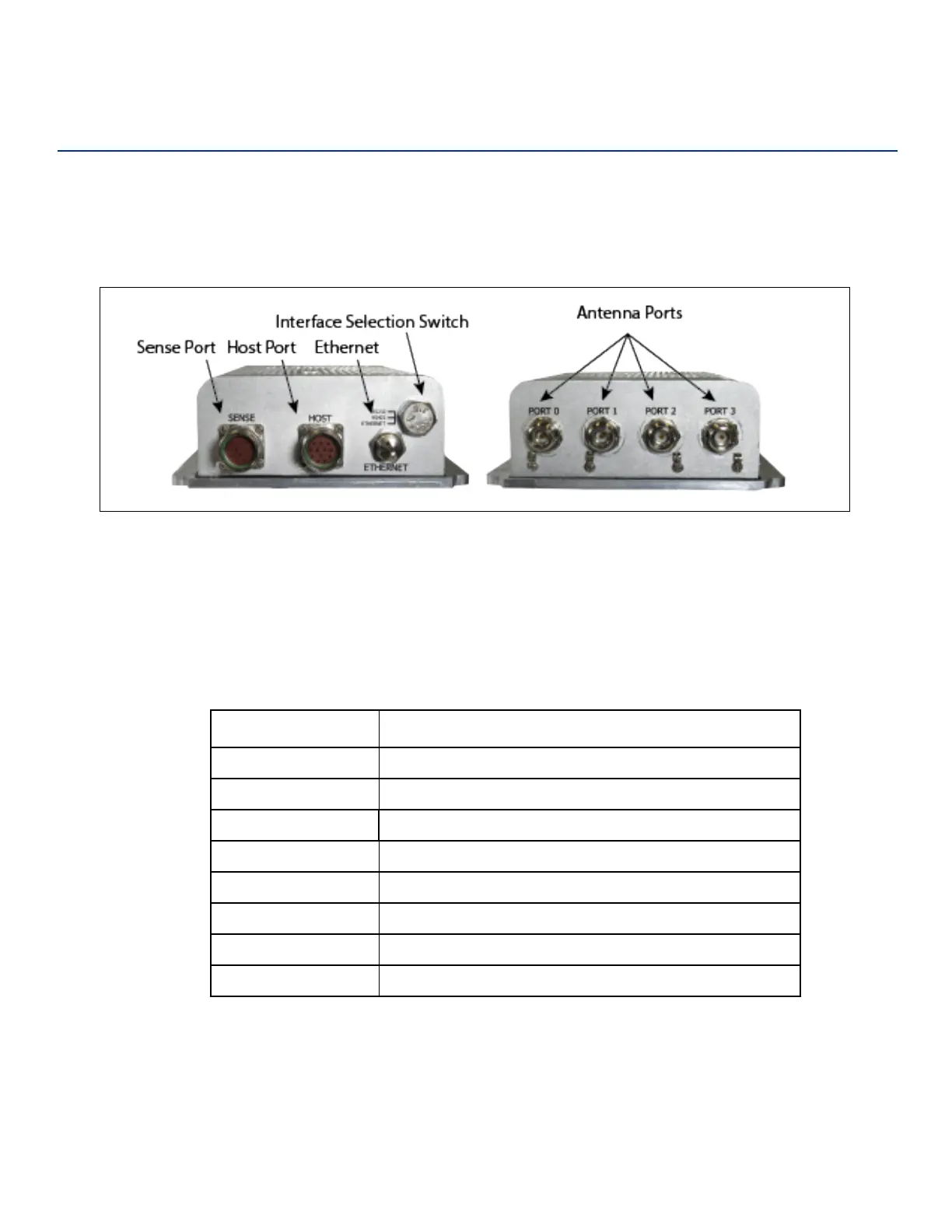

These components are contained in a highly reliable, compact, and easy-to-install package. Figure 1
shows the four port version of the MPRX. The host connector, sense connector, Ethernet connector, and
interface selection switch are on the opposite end of the MPRX from the four antenna port locations.
Power and Communications Cables
Cable length for power and communications depends on the physical characteristics of the MPRX
installation site. Table 1 lists accessory kits available for cabling options based on your site’s requirements.
Table 1 Connector Cabling Accessory Kits
Part Number Description
58-7200-001 MPRX host connector leads 0.15m (6in)
58-7200-002 MPRX host cable assembly 3m (120in)
58-7200-003 MPRX host cable assembly 5m (200in)
58-7200-004 MPRX host cable assembly 10m (400in)
58-7201-001 MPRX sense connector leads 0.15m (6in)
58-7201-002 MPRX sense cable assembly 3m (120in)
58-7201-003 MPRX sense cable assembly 5m (200in)
58-7201-004 MPRX sense cable assembly 10m (400in)
Figure 1 MPRX End Views
