Maintenance and repair
Replacing the conveyor belt
64
Operating instructions: Indexing conveyor/short track conveyor TS 1300
Version 3.6ENG, 28.02.2019

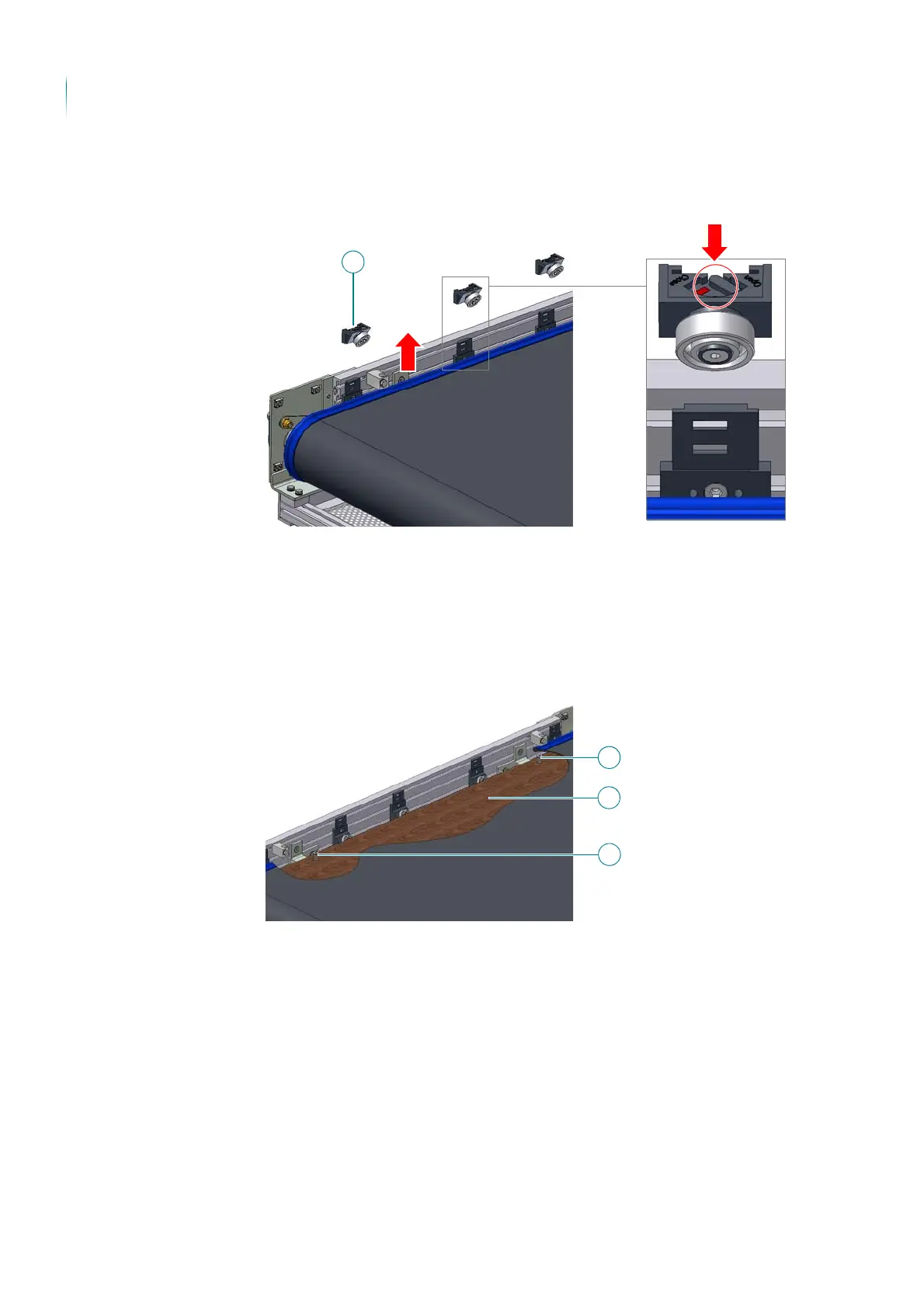

 Disassemble the
upper belt edge
holder parts - upper
run
Complete the following steps:
1. Turn the locking lever to "Open".
2. Remove the upper belt edge holder parts (1).
 The upper belt edge holder parts have been disassembled - upper run.
 Disassemble the bed
Complete the following steps:
1. Remove the joining elements (1) from the bed.
2. Lift the bed (2) and remove it to the side.
 The bed has been disassembled.
1
1
2
1
