Maintenance and repair
Replacing the conveyor belt
67
Insert the belt
Complete the following steps:
Place the belt onto the centre of the basic frame from above and roll it
out.
The belt has been inserted.
Assemble the drive
pulley and tail pulley
Complete the following steps:
Assembly must be carried out in the reverse order.
The drive pulley and tail pulley have been assembled.
Assemble the upper
belt edge holder
parts - lower run
Complete the following steps:

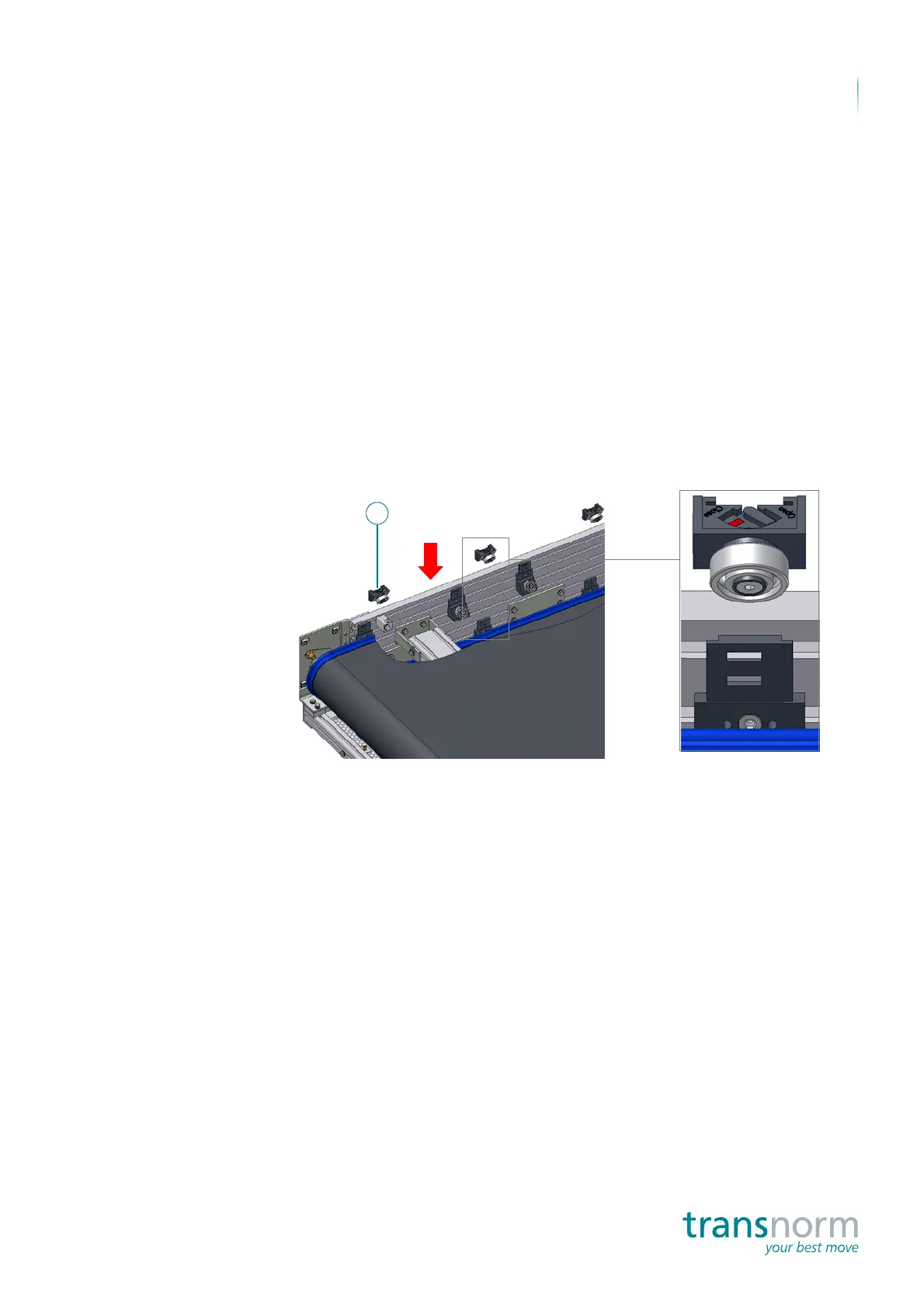

1. Insert the upper belt edge holder parts (1).
