Maintenance and repair
Replacing the flange bearings
78
Operating instructions: Indexing conveyor/short track conveyor TS 1300
Version 3.6ENG, 28.02.2019

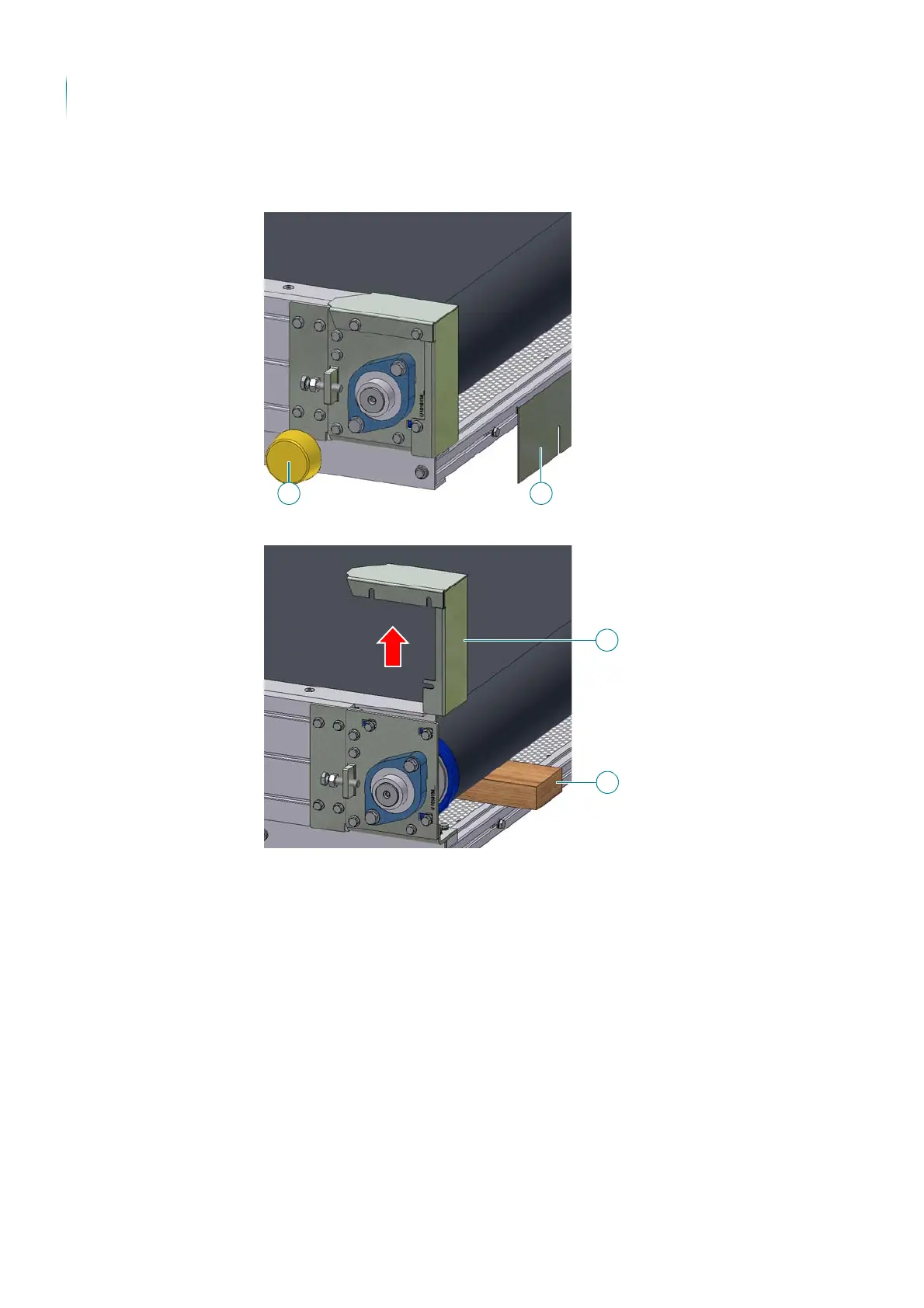

3. Remove the protective cap (4) and disassemble the finger guard plate
(5).
4. Release the joining elements and remove the bearing cover (6).
5. Support the pulley with suitable workshop equipment (7).
6. Release the grub screw of the flange bearing and remove the joining
elements from the flange bearing.
7. Remove the flange bearing from the shaft journal.
The flange bearing has been disassembled.
