V. SP430 Pressure Amp Module
The SP430 Transonic Scisense Pressure
Amplier Module is a specialized amplier
for compatible Pressure Catheters and
Transducers to measure arterial or venous
blood pressure in the research setting. The
Module accepts two Pressure Transducers for
simultaneous measurement of two channels
of pressure with separate controls for zero
offset balance of each Transducer. This
Module incorporates an internal barometric
pressure reference for use with fully sealed
chronic pressure implants. Analog output
signals may be recorded via front panel BNC
connectors or the Console’s rear terminal
block.
A. Compatible Pressure Catheters and
Transducers
The SP430 Pressure Module is equipped to work with Transonic Scisense solid-state Pressure Catheters. The
Module is also compatible with Transpac IV pressure transducers Transonic PART # YS100 when used with
the YS100-ADPT.
1. TRANSONIC SCISENSE PRESSURE CATHETERS
Transonic Scisense solid-state Pressure Catheters provide
high delity pressure measurements directly at the source.
Their high frequency response makes them suitable for
physiological measurements in animal sizes ranging from
mice to cows. These Catheters are available in catheter sizes
ranging from 1.2F to 7.0F and can be connected directly to
the SP430 Module using the supplied HDMI style cable.
FTH-SERIES: SMALL ANIMAL PRESSURE CATHETERS
1.2F, 1.6F, Single and Dual Sensor Catheters
1.9F (available as PV catheter only)
3.5F for large animals
NOTE: The SP430 Pressure Module will operate only the
pressure sensor of PV catheters.
FDH-SERIES: LARGE ANIMAL PRESSURE CATHETERS
Sizes: 5F, 7F Single and Dual Sensor Catheters, Straight or
Pigtail
NOTE: The SP430 Pressure Module will operate only the
pressure sensor of PV catheters.
2. TRANSPAC
®
IV PRESSURE TRANSDUCER (TRANSONIC
®
PART # YS100)
The Transpac
®
IV Pressure Transducer provides a measurement of arterial or venous blood pressure
by Luer Lock connection to an indwelling uid-lled catheter or inline connection for in vitro
applications. The Transpac
®
connects to the SP430 Module using the RJ11-HDMI connector adaptor
(Transonic
®
part YS100-ADPT). The disposable Transpac
®
IV is supplied in sterile packaging and may
be reordered. See http://www.icumed.com/products/critical-care/blood-pressure-monitoring/transpac-iv.aspx for more
information and specication. Transpac
®
IV is a registered trademark of ICU Medical, Inc.

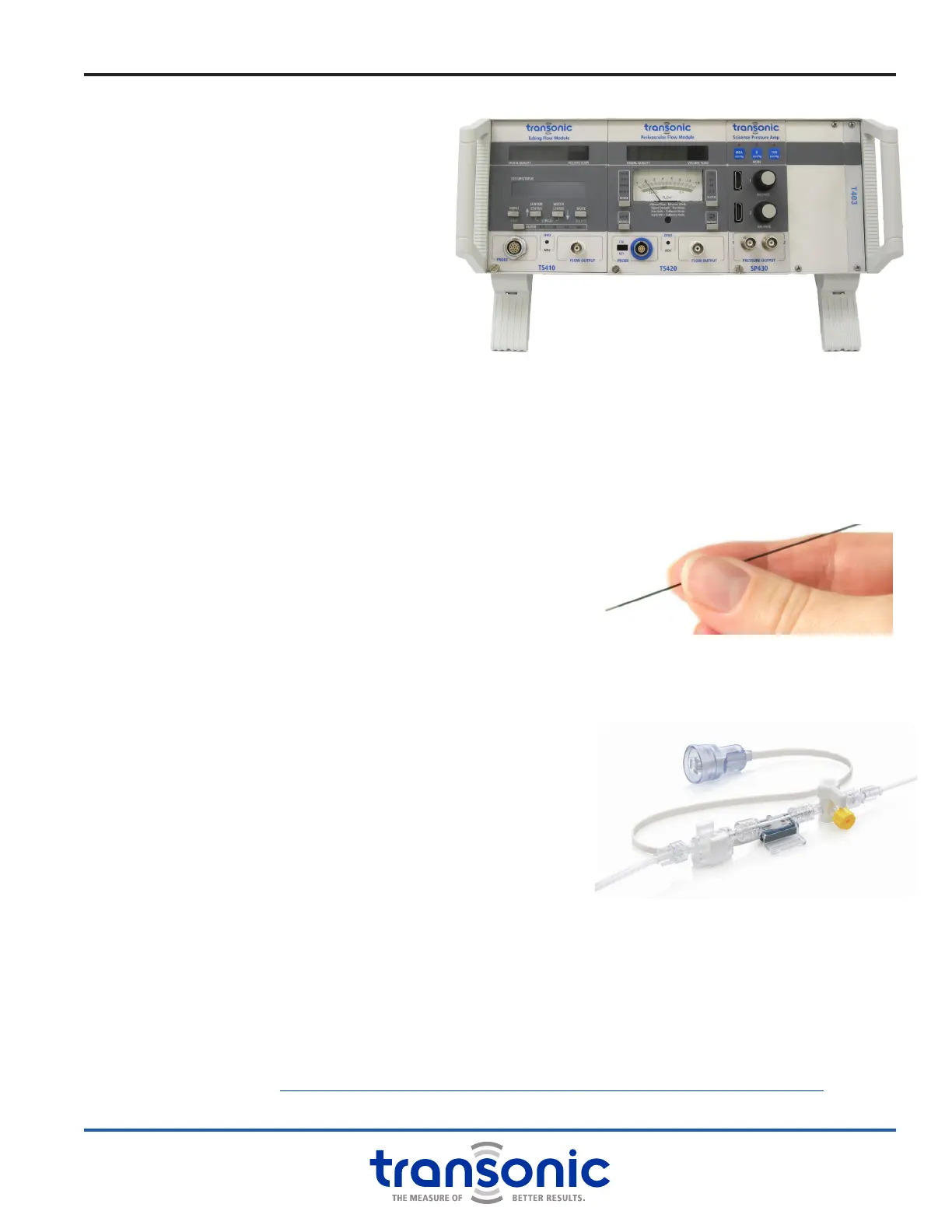

Fig. 5.1: Transonic T403 with TS410, TS420 and SP430 modules installed
* Note: Power Supply circuitry could interfere with pressure output
signal quality if the SP430 Module is placed in slot 1 or 2, the bay
farthest to the left (from the front).
Fig. 5.2: Transonic Scisense 1.6F FTH Pressure
Catheter
Fig. 5.3: Transpac
®
IV Pressure Transducer
