10 Installation (for qualified installers only)
© Travis Industries 3/13/18 - 1474 42 & 54PB GSB2 Aust.
Using a Buildout Above Fireplace and Television
IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE
Most television manufacturers instruct the homeowner to not place the television above a heat source. Doing so may
negatively affect the longevity of the television and may negate the warranty. If you do place a television above the fireplace,
please be aware of the large amount of heat generated by the fireplace and consider placing the television above a mantel to
reduce the amount of heat that reaches the television. The homeowner must understand that Travis Industries does not take
responsibility for any negative impact to televisions placed near this fireplace.

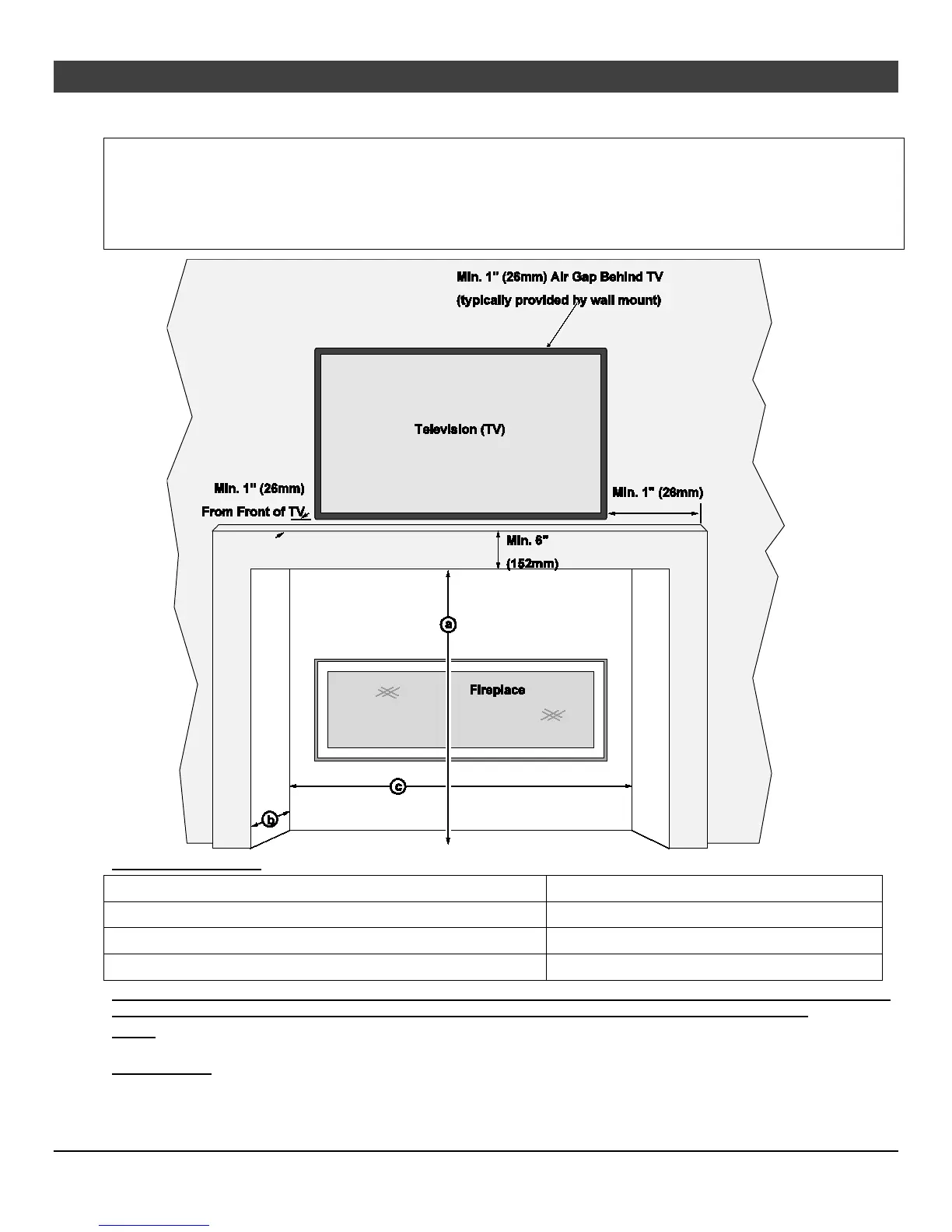

Minimum Dimensions:
(a) Minimum Mantel Height above Base of Fireplace* 39” (991mm) with 4” (102mm) mantel depth
(b) Minimum Mantel Depth* 4” (102mm)*
(c) Minimum Fireplace Recess Width 42PB 47-1/8” (1197mm)
(c) Minimum Fireplace Recess Width 54PB 59-1/8” (1502mm)
* Mantel depth is 4”(102mm) minimum to allow heat to travel forward and dissipate. If using more than an 4”(102mm)
mantel, make sure to make the mantel height (a) higher (see mantel requirements on page 42 for details).
NOTE: The mantel must extend 1”(26mm) in front of the TV and 1”(26mm) to both sides. If you have a TV that is greater than
3”(77mm) deep (including the 1”(26mm) gap behind), you will need to alter the mantel depth and height.
WIRING NOTE: If running wiring into the enclosure, use thermal insulating wrap around the wiring. Secure the wiring to
protect from contact with hot surfaces.
