42 Installation (for qualified installers only)
© Travis Industries 3/13/18 - 1474 42 & 54PB GSB2 Aust.
Mantel Requirements

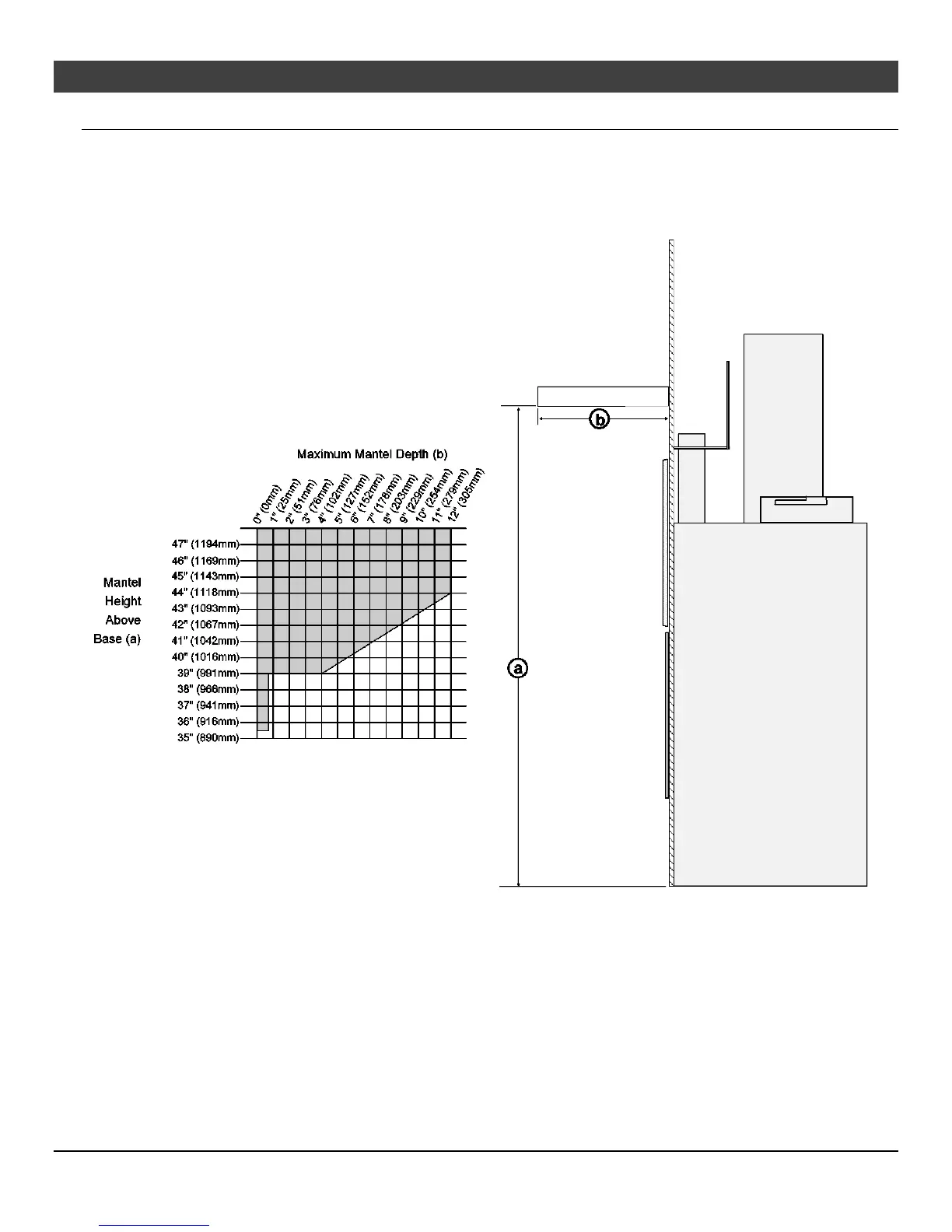

• Use the table below to determine the maximum mantel depth allowed. The mantel depth (measured from the
non-combustible facing) must fall within the shaded portion of the table.
• Any material above the fireplace that protrudes more than 3/4” (19mm) from the non-combustible facing is
considered a mantel and must meet the mantel requirements.
Mantel Column Clearances
• Combustible mantel columns (legs) require a 0” (0mm) clearance to the side of the fireplace (they must
be to the side of the fireplace).
• Non-combustible mantel columns do not have a minimum clearance.
