20 Installation (for qualified installers only)

Corner Installations

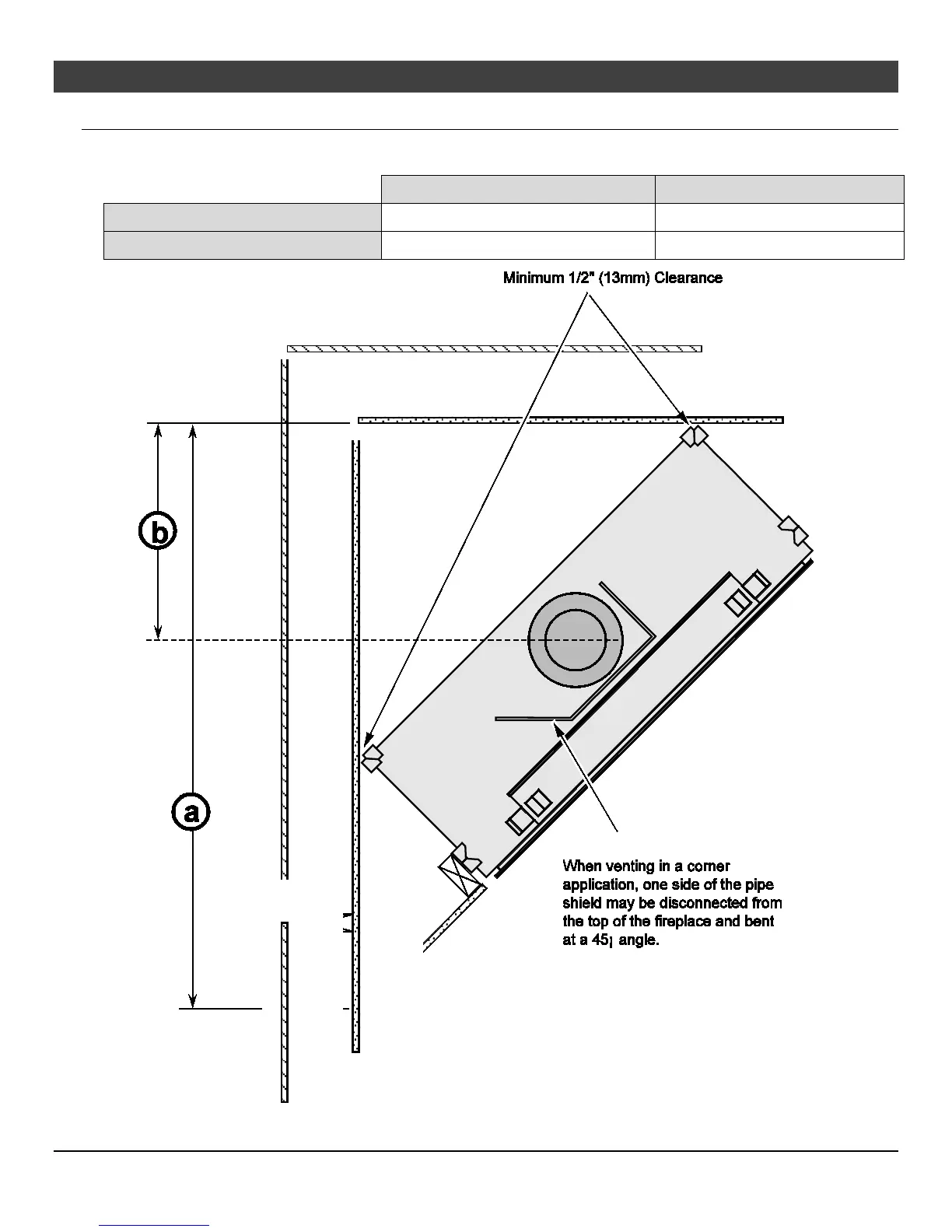

A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances still

apply).

42PB 54PB

(a) Corner to Wall (minimum) 53-1/2” 1359mm 63-3/4” 1619mm

(b) Corner to Center of Flue (typical) 20-3/4” 528mm 25” 635mm
