Installation (for qualified installers only) 39
© Travis Industries 3/13/18 - 1474 42 & 54PB GSB2 Aust.
Facing Thicker than 1-1/2” (38mm).
The screen assembly may be positioned 1/2” (13mm) to 1-1/2” (38mm) from the front of the fireplace to allow
facing to tuck under the screen assembly. Facing thicker than 1-1/2” (38mm) may also be used, however the
screen assembly will be recessed into the facing rather than overlapping facing.
NOTE: Pay close attention to the following thick facing requirements when planning installation of facing
material over 1-1/2” (38mm) thick.

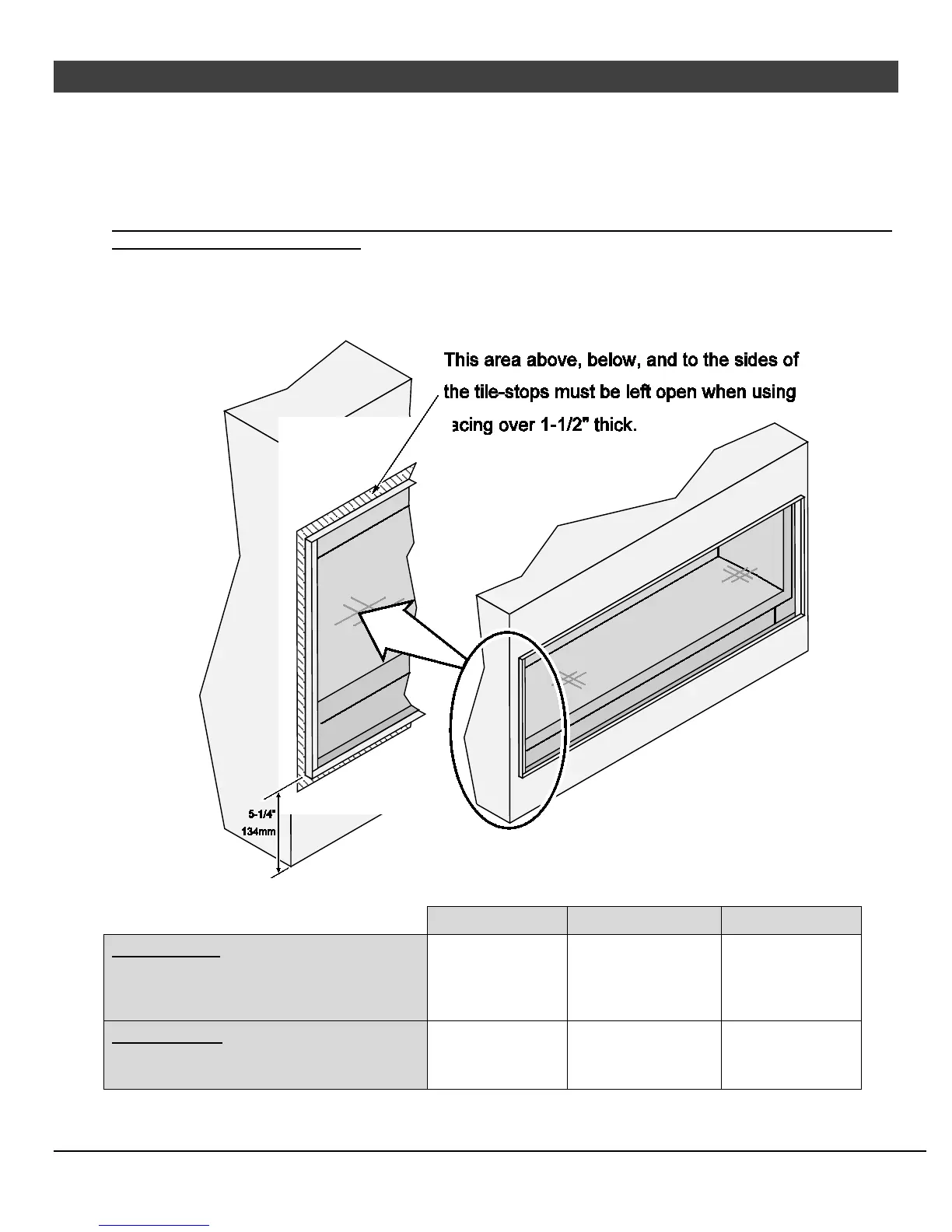

If facing greater than 1-1/2” (38mm) is used, make sure to leave a 3/8" (9.5mm) gap above the screen assembly
and 1/8” (3.18mm) to the sides and below. This gap is required to allow for the screen assembly to be removed.
Above Tile Stop Sides of Tile Stop Below Tile Stop
MINIMUM GAP
This provides 3/8” (9.5mm) gap above
screen assembly, 1/8” (3.2mm) gap to the
sides and below.
3/4” (19mm) 5/8” (16mm) 3/8” (9.5mm)
UNIFORM GAP
This provides 3/8” (9.5mm) gap around all
sides of the screen assembly.
3/4" (19mm) 7/8” (22.5mm) 5/8” (16mm)
