Travis Industries ProBuilder 42 - Vent Configurations for 54 PB ONLY for 42 PB; Minimum Vent Configuration

32 Installation (for qualified installers only)
© Travis Industries 3/13/18 - 1474 42 & 54PB GSB2 Aust.
Vent Configurations for 54 PB ONLY For 42 PB see page 29
Minimum Vent Configuration
• Use 5x8” Diameter Coaxial Vent
• NOTE: Use the included thimble assembly whenever passing through a wall (use on front
and back of wall penetration). See picture below.
• The termination must fall within the shaded area shown in the chart. Use the indicated
restrictor positions.
• One 45° elbow may be used on the horizontal run.
• HINT: Use minimum vent kit “H” (96200332) from Travis Industries (additional vent may be
required).

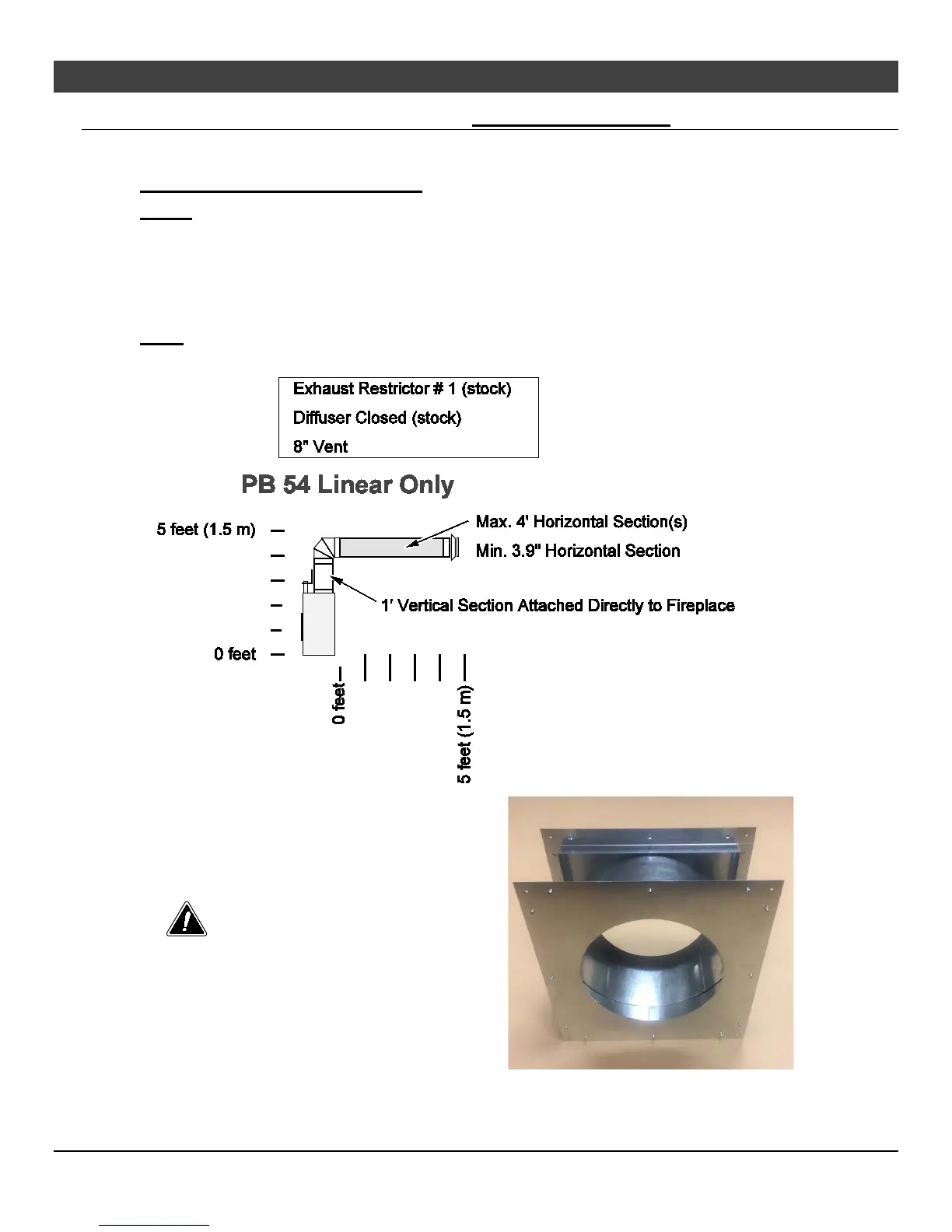

Use the included wall thimble when
penetrating a wall. Part #96200101
