Travis Industries ProBuilder 42 - Optional Wall Switch or Thermostat Installation; Parallel Connection Series Connection

Installation (for qualified installers only) 25
© Travis Industries 3/13/18 - 1474 42 & 54PB GSB2 Aust.

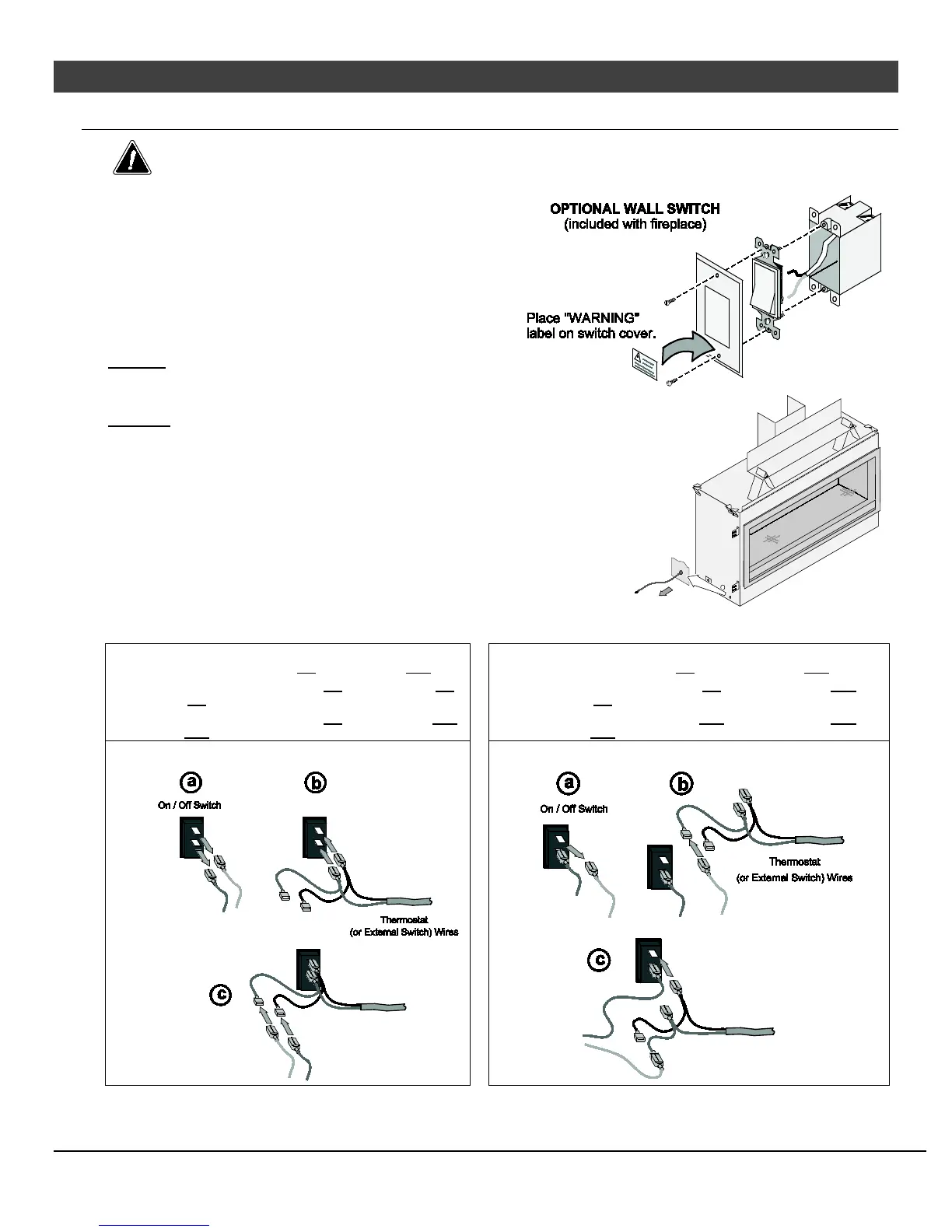

Optional Wall Switch or Thermostat Installation
Do not connect 240 VAC to the gas control valve or wiring system of this fireplace. The switch and
wiring must be installed by a qualified installer.
This fireplace includes an optional wall switch (with wire) to
operate the fireplace burner without accessing the internal
on/off switch. A thermostat may be used instead.
Route the wire from inside the fireplace, through the grommet
on either side of the fireplace (see illustration to the right) to
the switch. The wall switch (or thermostat) may bypass the
fireplace on/off switch or be installed in parallel or series
configuration (see below).
Caution: Label all wires prior to disconnection when
servicing controls. Wiring errors can cause
improper and dangerous operation.
Warning: Make sure all wiring is secure and does not
contact hot or moving components.
Parallel Connection Series Connection
On / Off Switch
ON
On / Off Switch
OFF
On / Off Switch
ON
On / Off Switch
OFF
Thermostat / External
Switch
ON
Heater is ON
Heater is ON
Thermostat /
External Switch
ON
Heater is ON
Heater is OFF
Thermostat / External
Switch
OFF
Heater is ON
Heater is OFF
Thermostat /
External Switch
OFF
Heater is OFF
Heater is OFF
To wire the heater in parallel, follow the directions below: To wire the heater in series, follow the directions below:
