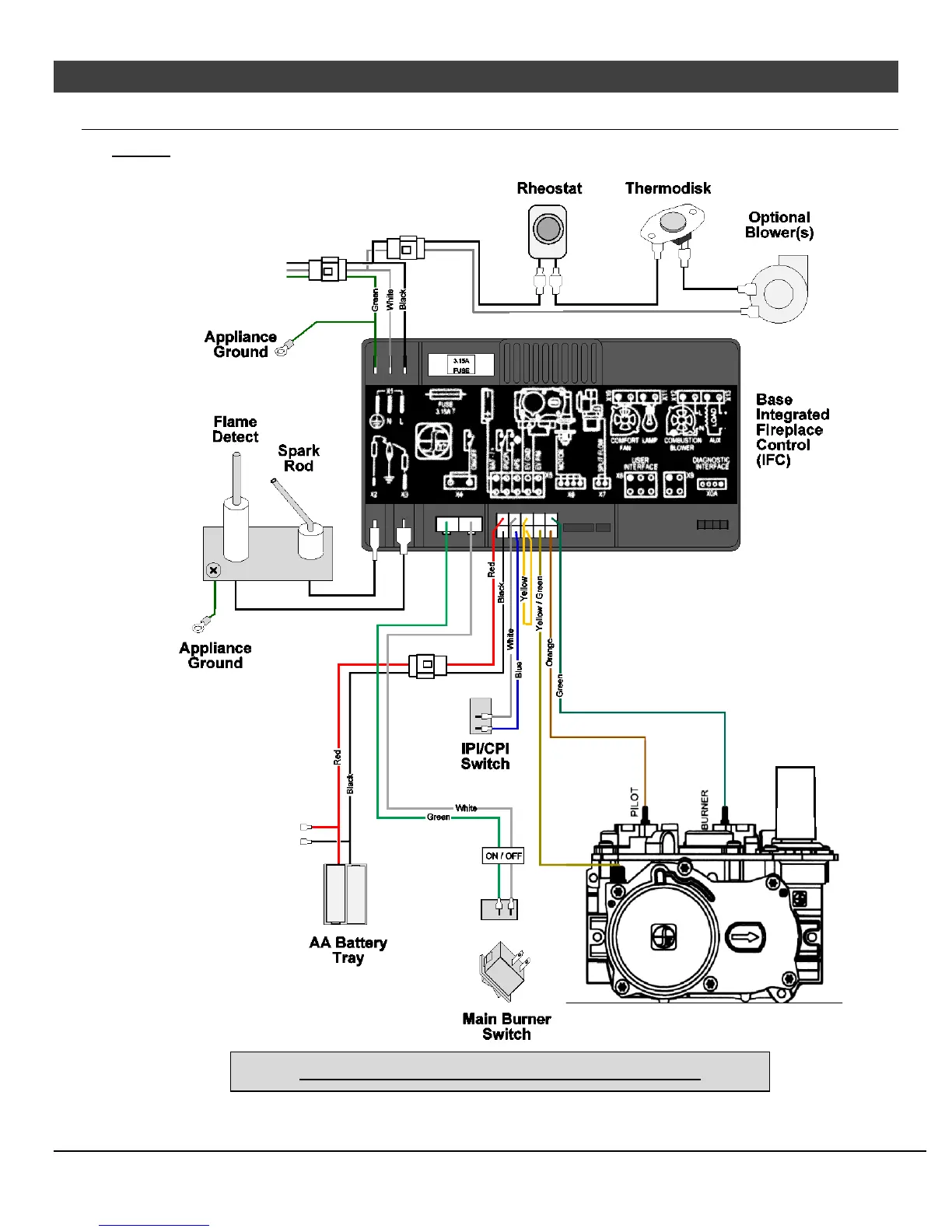

Wiring Diagram – GSB2 Version
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and
dangerous operation.
NOTE: IPI/CPI Switch may not be available in Australia
240 VAC
Power In
