30 Installation (for qualified installers only)
© Travis Industries 3/13/18 - 1474 42 & 54PB GSB2 Aust.
Vent Configuration: Vertical Termination for 42 PB ONLY
• Use 4x6-5/8” Diameter Coaxial Vent. Connect a 8” to 6-5/8” reducer directly to the
fireplace (sku 98900165).
• NOTE: The included thimble assembly is not required and may be discarded.

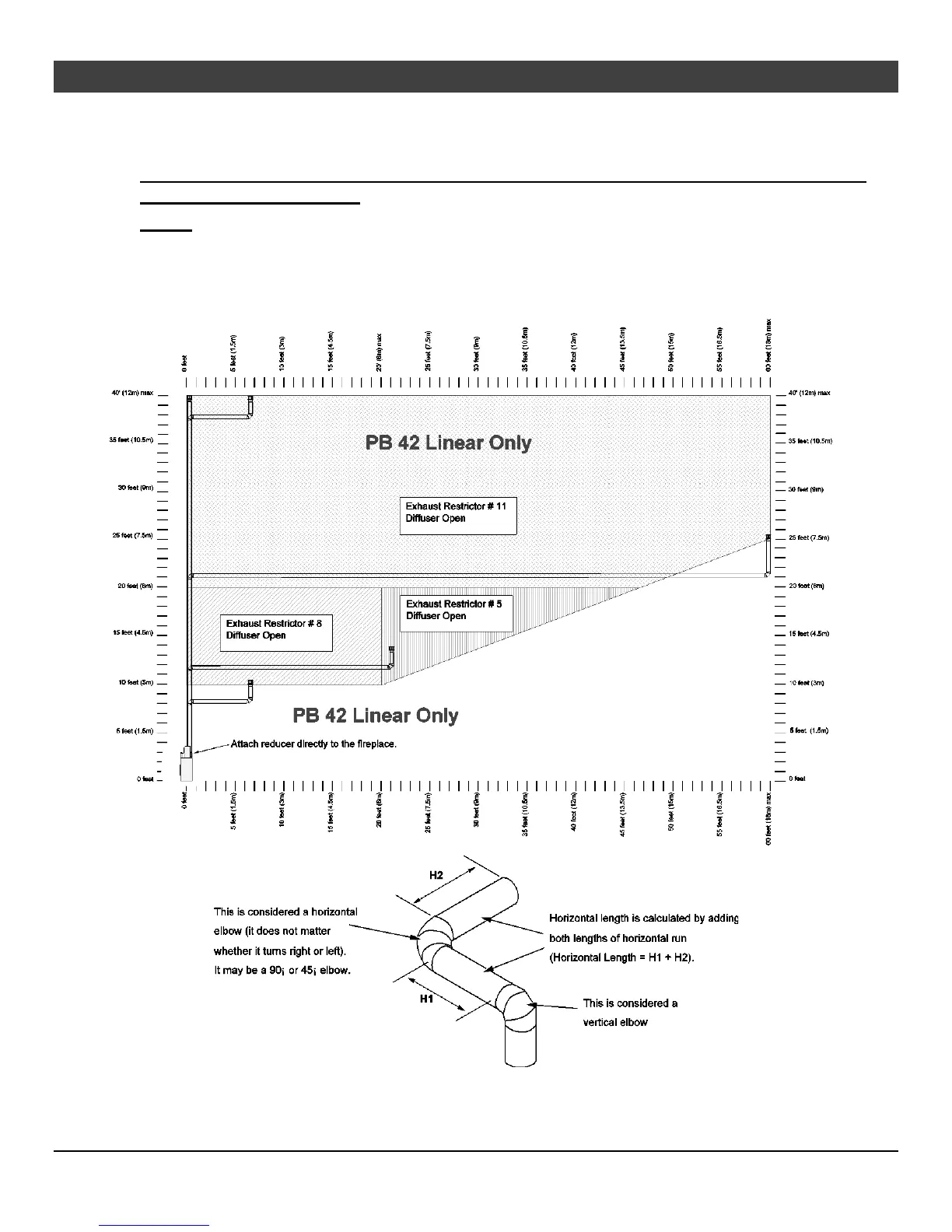

• The termination must fall within the shaded area shown in the chart. Use the indicated
restrictor positions.
• Up to four elbows (45° or 90°) may be used. Only one horizontal elbow may be used.
To Next Page
