TEW-455APBO High Power Wireless Outdoor PoE Access Point
53

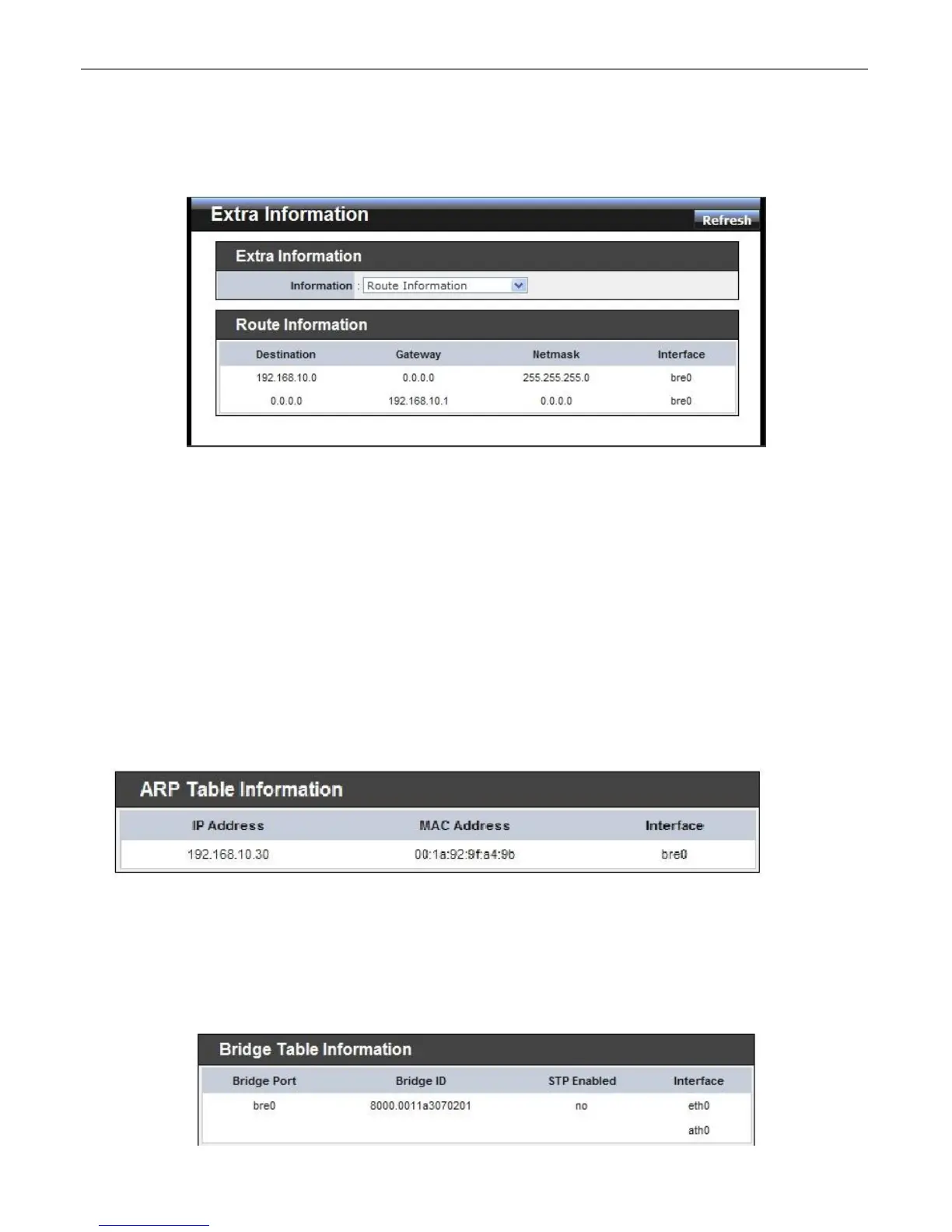

3.5.4 Extra Information
Users could pull out information such as Route table, ARP table, MAC table, Bridge table or STP available in the
drop-down list from system. The “Refresh” button is used to retrieve latest table information.
Route table information : Select “Route table information” on the drop-down list to display route table.
TEW-455APBO could be used as a L2 or L3 device. It doesn’t support dynamic routing protocols such as RIP
or OSPF. Static routes to specific hosts, networks or default gateway are set up automatically according to
the IP configuration of system's interfaces. When used as a L2 device, it could switch packets and, as L3
device, it’s capable of being a gateway to route packets inward and outward.
ARP table Information : Select “ARP Table Information” on the drop-down list to display ARP table.
ARP associates each IP address to a unique hardware address (MAC) of a device. It is important to have a
unique IP address as final destination to switch packets to.
Bridge table information : Select “Bridge Table information” on the drop-down list to display bridge
table.
Bridge table will show Bridge ID and STP's Status on the each Ethernet bridge and its attached interfaces,
the Bridge Port should be attached to some interfaces (e.g. eth0, ath0~ath7 and ath0.wds0~ath0.wds7).
