U
ser Manual
TEW
-455APBO H
igh Power W
ireless Outdoor P
oE
Access
Point
77

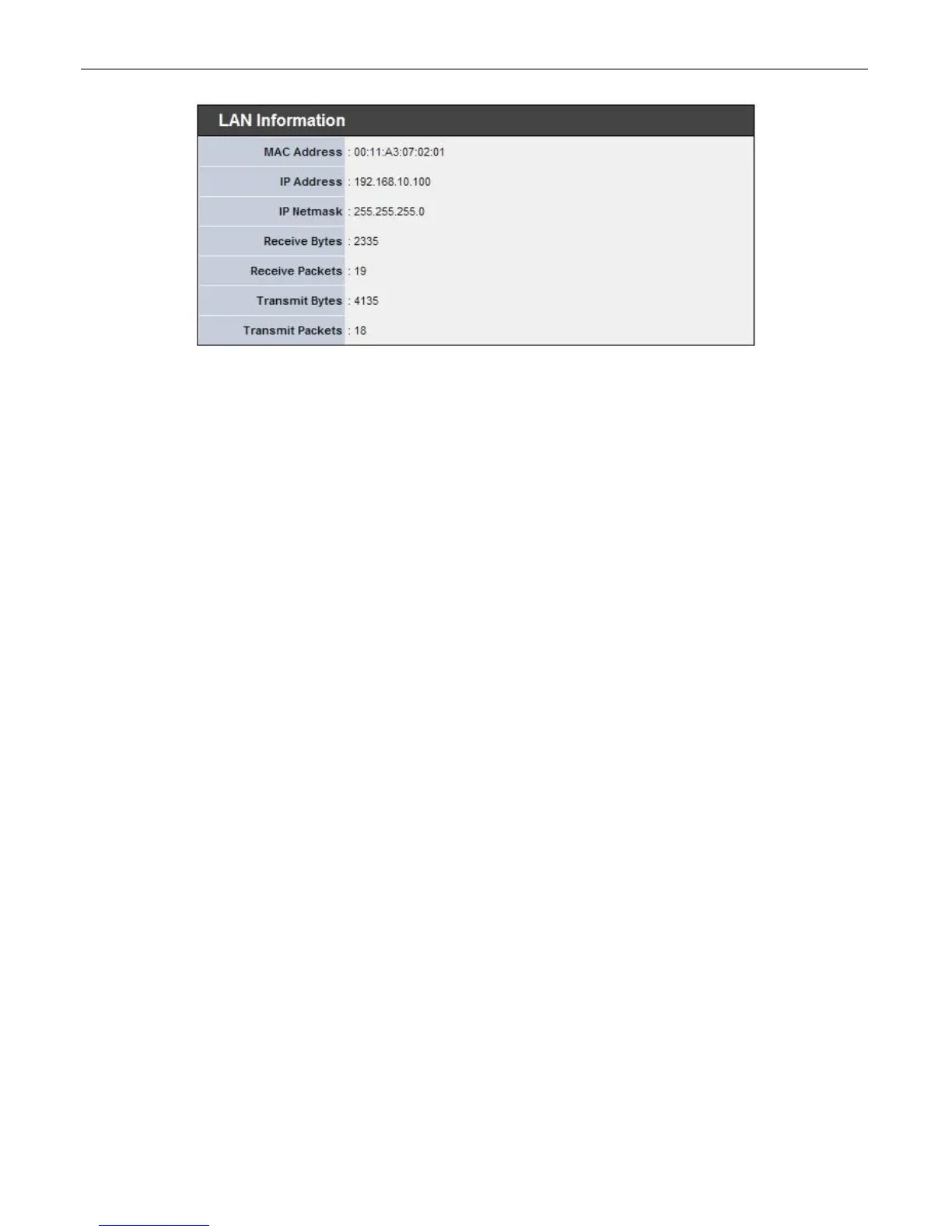

MAC Add
ress :
The MAC a
d
dre
ss of the L
AN port.
IP Addre
ss :
The IP addre
ss of the L
AN port.
IP Netma
sk
:
The IP netmask of the LAN port.
Receiv
e bytes :
The tot
al receive
d pack
ets in byt
es on the L
AN port.
Receiv
e packe
ts :
Th
e to
tal receiv
ed pack
ets of the LAN port.
T
ransmi
t
byte
s :
The total tr
ansmitte
d pack
ets in bytes o
f the L
AN port.
T
ransmi
t
pack
ets :
The t
otal transmit
ted pack
et
s of the LAN port.
79
81
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1. System Overview
4
Introduction of TEW-455APBO
4
System Concept
5
Applications in Wireless Network
6
Product Benefit
10
Specification
11
Wireless Performance Considerations
14
Chapter 2. Basic Installation
15
Hardware Installation
15
Package Contents
15
Panel Function Descriptions
15
Web Management Interface Instructions
16
Chapter 3. AP Mode Configuration
19
External Network Connection
19
Network Requirement
19
Configure LAN IP
20
Wireless LAN Network Creation
22
Wireless General Setup
22
Wireless Advanced Setup
24
Create Virtual AP (VAP)
28
Virtual AP Overview
28
Virtual AP Setup
30
MAC Filter Setup
37
Wireless Network Expansion
38
System Management
41
Configure Management
41
Configure System Time
44
Configure Upnp
45
Configure SNMP Setup
46
Backup / Restore and Reset to Factory
48
Firmware Upgrade
49
Network Utility
50
Reboot
51
System Status
52
System Overview
52
Associated Clients Status
54
WDS Link Status
55
Extra Information
56
Event Log
58
Chapter 4. WDS Mode Configuration
59
External Network Connection
59
Network Requirement
59
WDS Setup
60
System Status
62
System Overview
62
WDS Link Status
64
Chapter 5. CPE Mode Configuration
65
External Network Connection
65
Network Requirement
65
Configure WAN Setup
66
Configure DDNS Setup
69
Site Survey
70
Access Control List
71
IP Filter Setup
71
MAC Filter Setup
73
Resource Sharing
74
Dmz
74
Virtual Server (Port Forwarding)
75
System Status
77
System Overview
77
DHCP Clients
81
Command Line Interface(CLI)
82
Accessing the CLI with Telnet
82
Accessing the CLI with SSH Utility
83
Using the CLI
84
Appendix A. WEB GUI Valid Characters
88
Appendix B. Network Manager Privileges
92
Appendix C. Enabling Upnp in Windows XP
93
Limited Warranty
95
