32
Apply: To activate and save the modifications.
Delete: Click to delete selected VID.

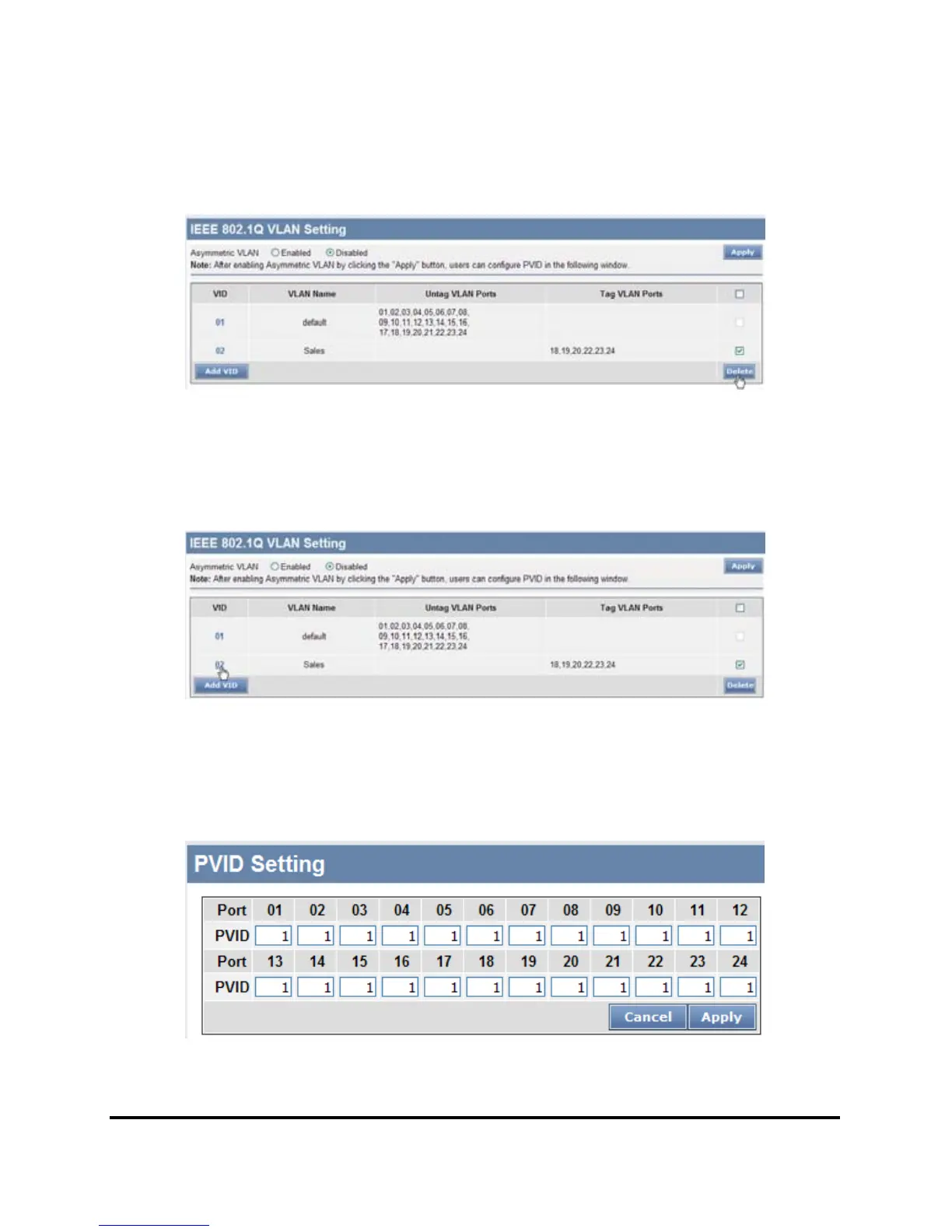

Figure 22. Delete VID
To change exist IEEE 802.1Q VLAN setting, press the VID to modify
that IEEE 802.1Q VLAN setting.
Figure 23. Modify VID
PVID settings:
While receiving an untagged frame from the port, the switch will
assign a tag to the frame, using the PVID of the port as its VID.
Figure 24. PVID Setting
