33

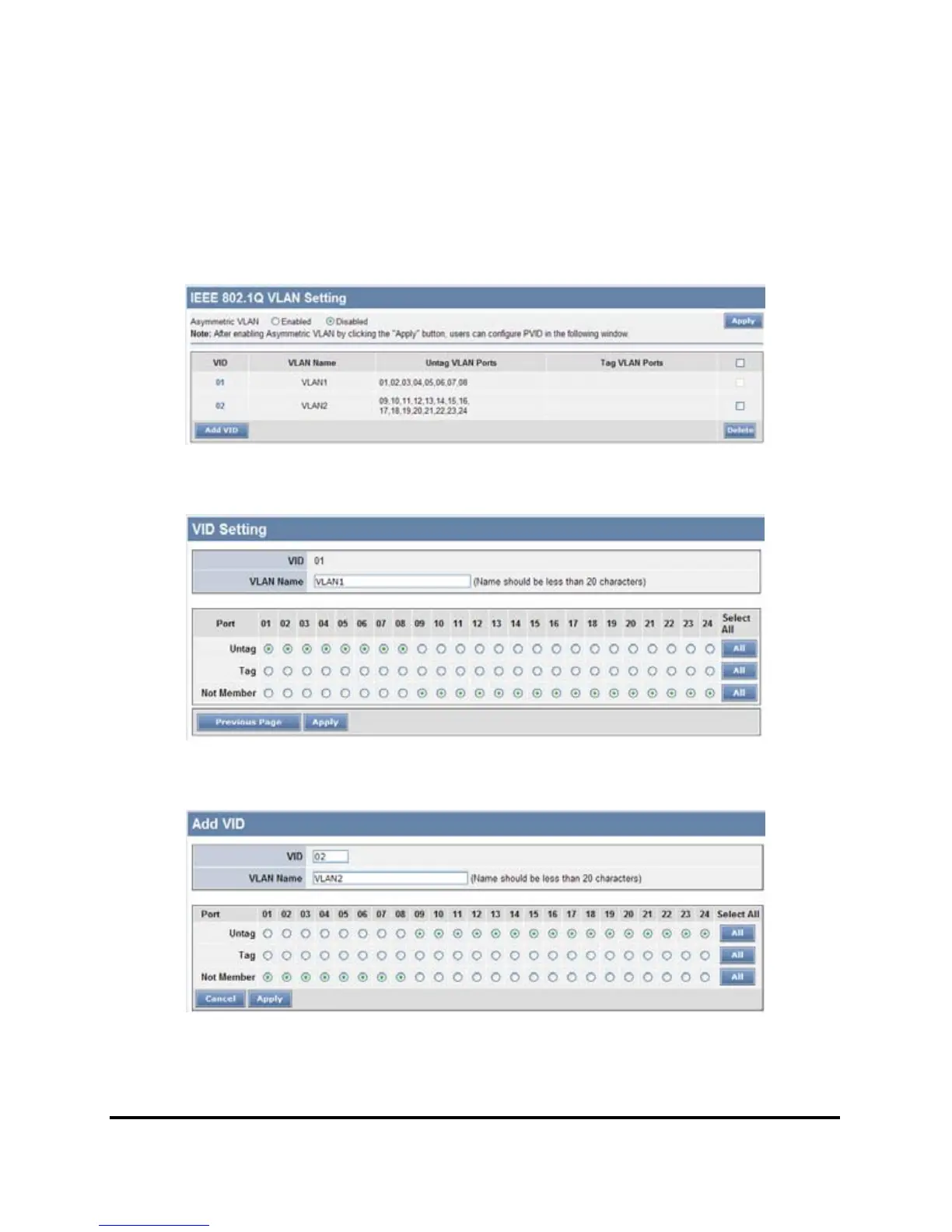

Example 1:
Here is an example of two VLAN groups with several ports in each
group and VLAN 1 (VID 01) does not have communication with
VLAN 2 (VID 02).
Figure 25.
Step1: Set VLAN1 port 9~24 to “Not Member”, then apply setting.
Figure 26.
Step2: Create VID 02 and set port 9~24 to “Untag Port” member, then apply setting.
Figure 27.
