34
Model Three - Operation Manual
Voltage
Press the
F
1
F
1
key to enter the Voltage display.
Use this function to view battery and trunk voltage measurements.
The Model Three is equipped with a built-in voltmeter that can be used
to troubleshoot problems with power supplies or power drops. The
Model Three accommodates AC or DC voltages up to 100 Volts.

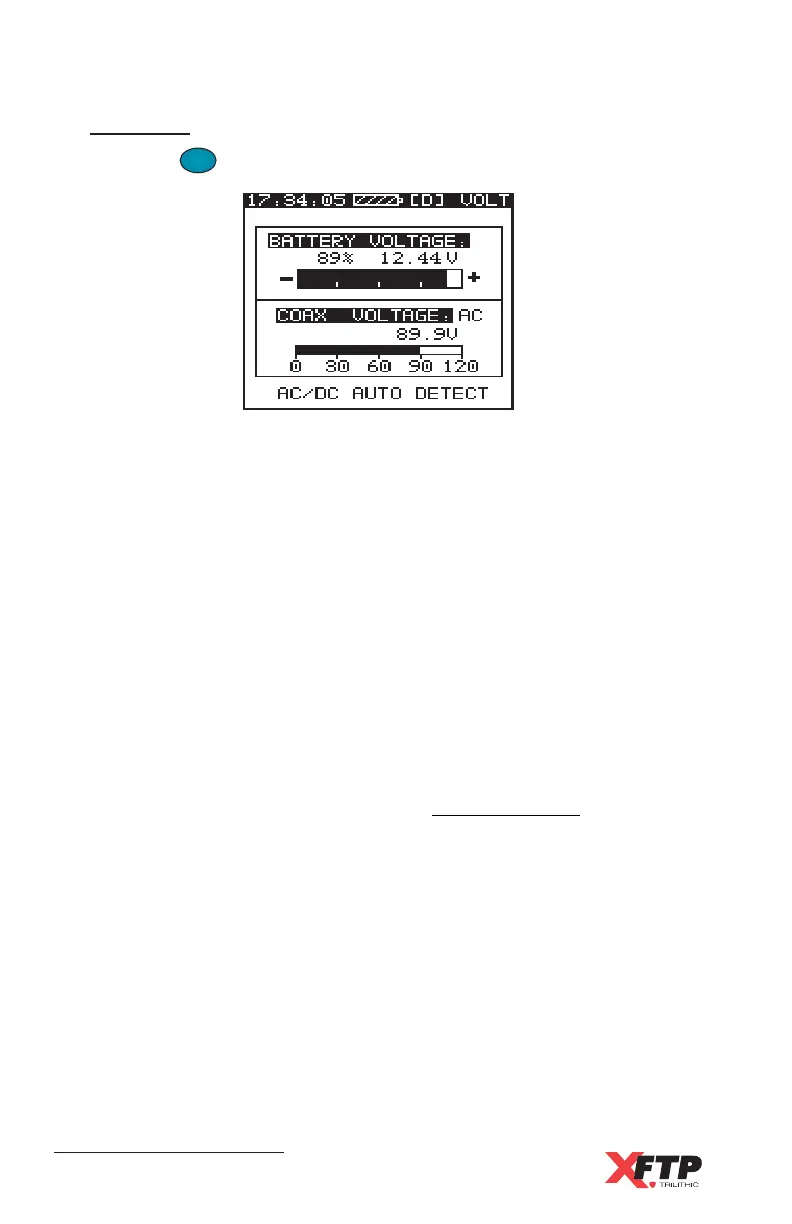

The Voltage screen displays two bar graphs.
The top bar graph indicates the battery charge of your Model Three.
This approximate charge level and the battery voltage are also
displayed numerically. As you use the device, you can access this
screen to check the remaining battery power.
When the battery charge drops below 10%, the battery symbol flashes
in the information line at the top of the display screen. If the charge
drops below 5%, the Model Three shuts off automatically to protect the
battery (see Chapter 3: Walkthrough, Battery Charging).
The lower bar graph indicates the AC or DC voltage of the system’s
trunk.
