Trillium User Guide Trillium Engineering Page 64
AUX Power Connector – 24VDC Output
The auxiliary power connector is 2-pin connector JST SH series 2-pin connector, with 1Amp
continuous current capability per pin.
Pin #
Signal
Level
Direction
Description
1
VOUT
24VDC
OUT
Regulated Output Power
2
GND
9.1.4 Sealed Electrical Interface
The input power connector is a Glenair 15pin Micro D Socket connector, part number MWDM2L-
15S-6K7-18B, with a 1 Amp continuous current capability per pin. Trillium stocks interface
connectors with flying leads with Trillium part number 50-2237. The pinout is shown below.
Pin #
Signal
Level
Direction
Description
1,2,3,4
VIN
10-21V or
17-34V
IN
Input Power
5,6,7,8
GND
Input Ground
9,11
N/A
Not Connect
10
POWER_Enable
3.3V
IN
SEE SECTION 9.1.2
12,13
GROUND
Output Ground
14,15
Vout
24VDC
OUT
Output 24VDC

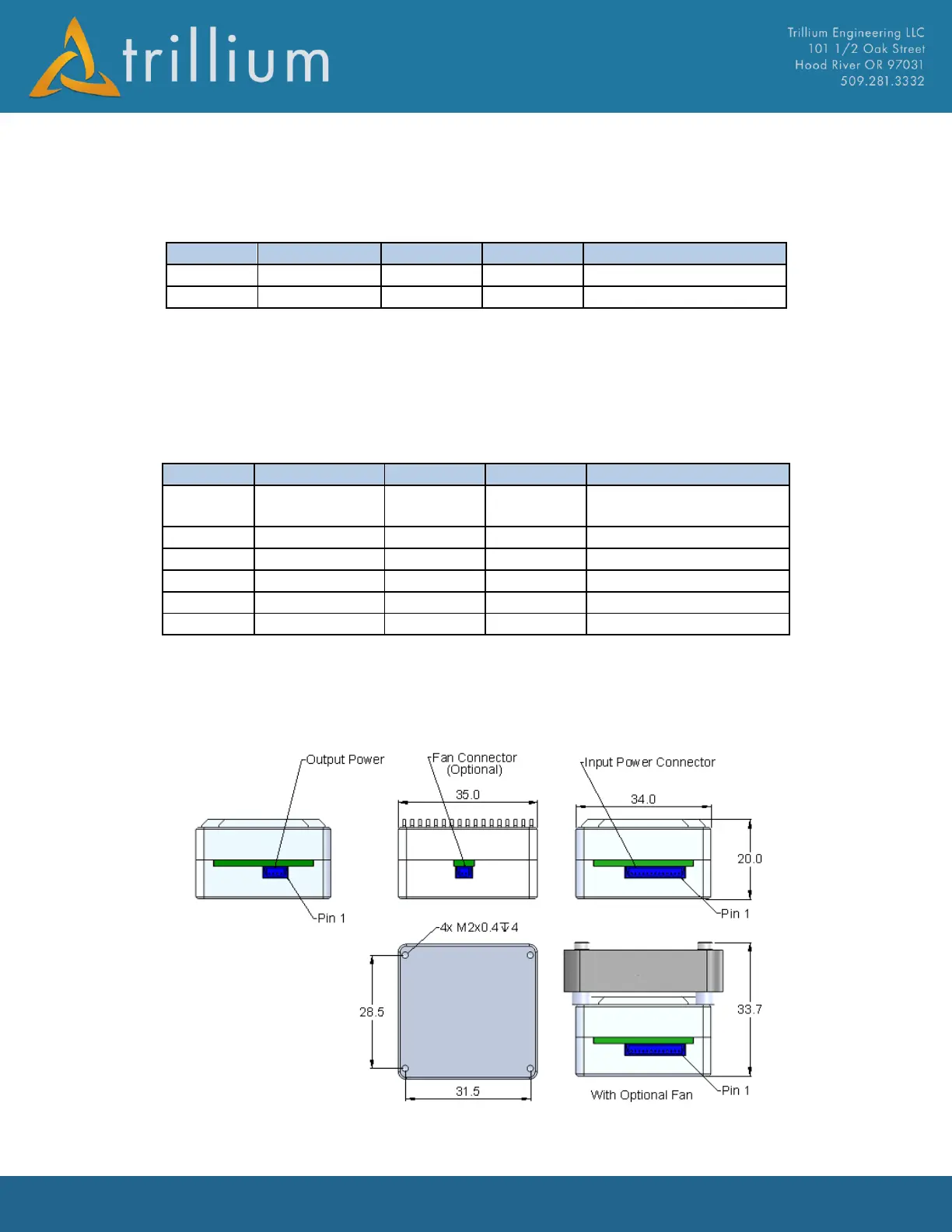

9.1.5 Mechanical Interface
The module weighs 40g without mounting fasteners. The figure below shows the mechanical
dimensions and identifies connectors on the external power supply. All dimensions are in mm.
Figure 1 Mechanical Interface 90-0344 and 90-2907
