TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
2 – Connecting the Display Only
15

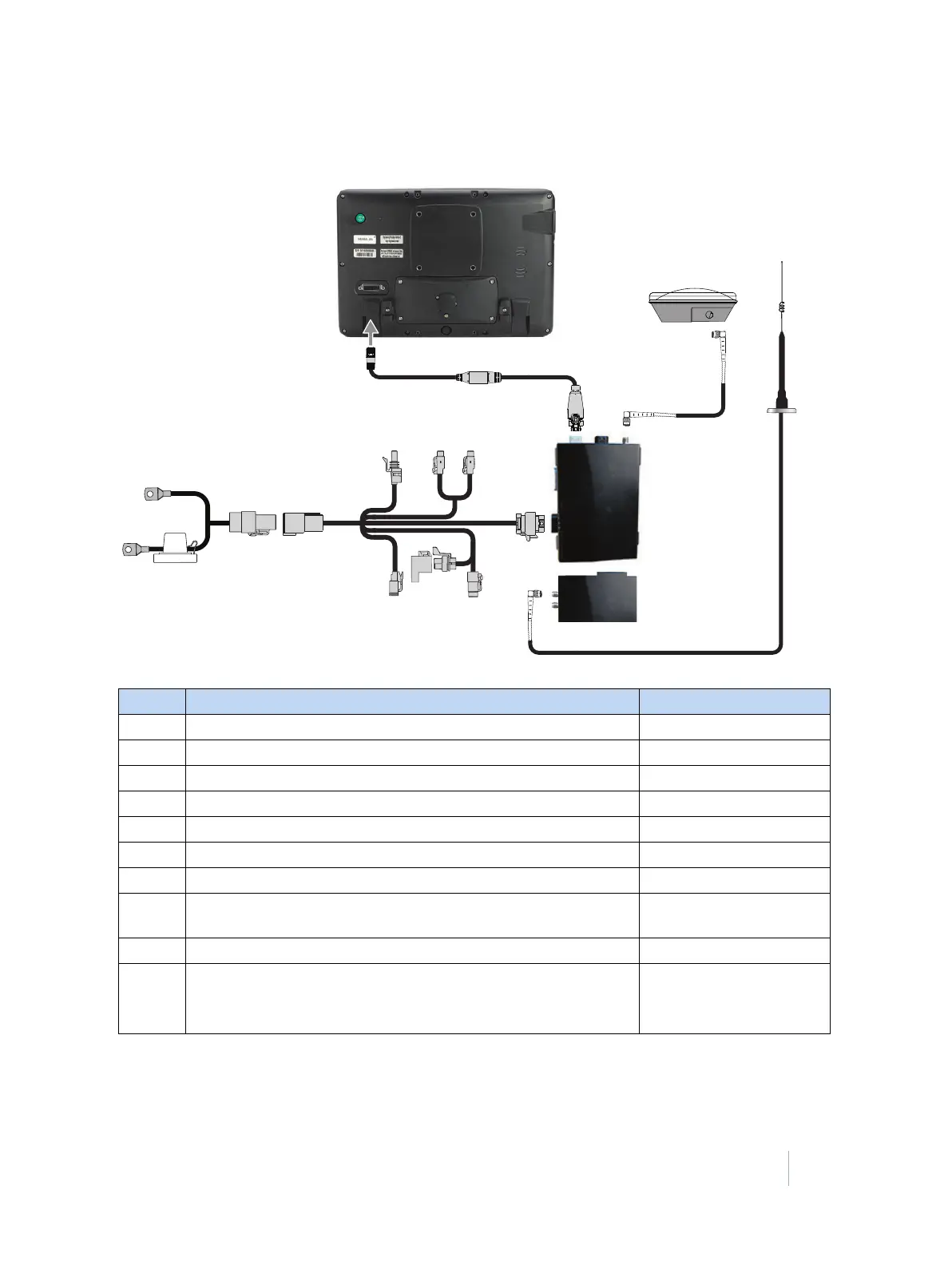

Manual guidance using radio and RTK corrections
RTK corrections require an AG-815 integrated radio ❽ and a radio antenna ❿.
Item Description Trimble part number
❶ TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
❺ TM-200 Module battery cable 92905
❻ AG-25 GNSS antenna to TM-200 Module cable 50449
❼ AG-25 GNSS antenna 77038-01
❽ AG-815 radio. For available frequencies, see TMX-2050 system
components, page 6.
95080-xx
❾ Radio antenna cable 72122
❿ Radio antenna. For available frequencies, see TMX-2050 system
components, page 6.
24253-44
24253-46
22882-10
c
e
h
g
f
i
d
j
k
l
