Trimble TMX-2050 - Autopilot system using RTK corrections

TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
4 – Connecting to the Autopilot System
28

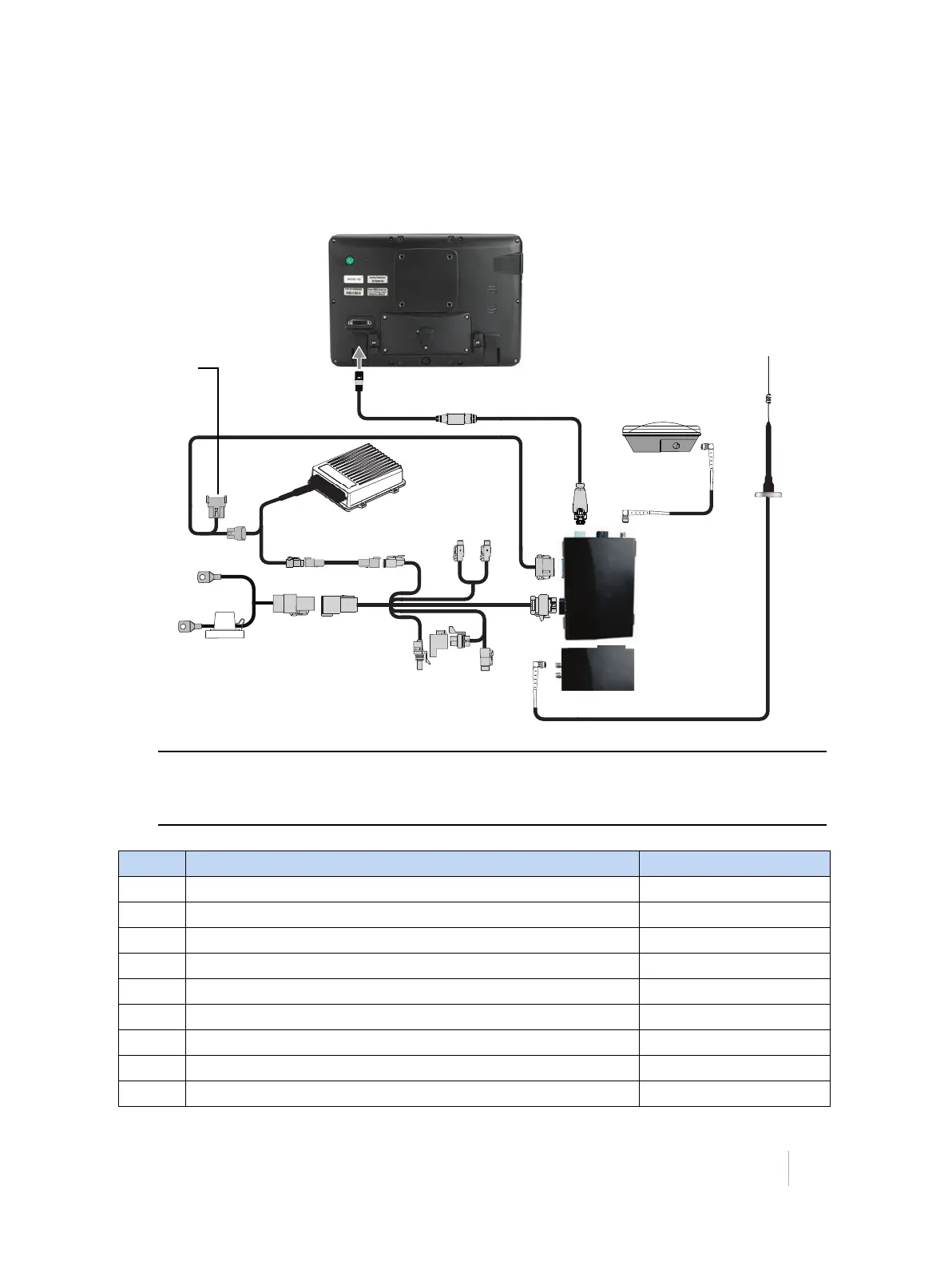

Autopilot system using RTK corrections
The Autopilot assisted steering system requires the navigation controller ⓫.
RTK corrections require the AG-815 radio ❽ and antenna ❿.
C
CAUTION – Connecting the Port Replicator of the NavController II cable ⓫ to the P4 or P12
connector of the NavController II harness
⓭ will result in damage to the equipment, and will
void the warranty.
Item Description Trimble part number
❶ TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
❺ TM-200 Module battery cable 92905
❻ AG-25 GNSS antenna to TM-200 Module cable 50449
❼ AG-25 GNSS antenna 77038-01
❽ AG-815 radio 95080-xx
❾ Radio antenna cable 72122
j
k
l
c
e
h
g
f
i
d
p
o
n
m
P3 / GPS
connectorr
