TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
5 – Connecting the Field-IQ Crop Input Control Systems
39

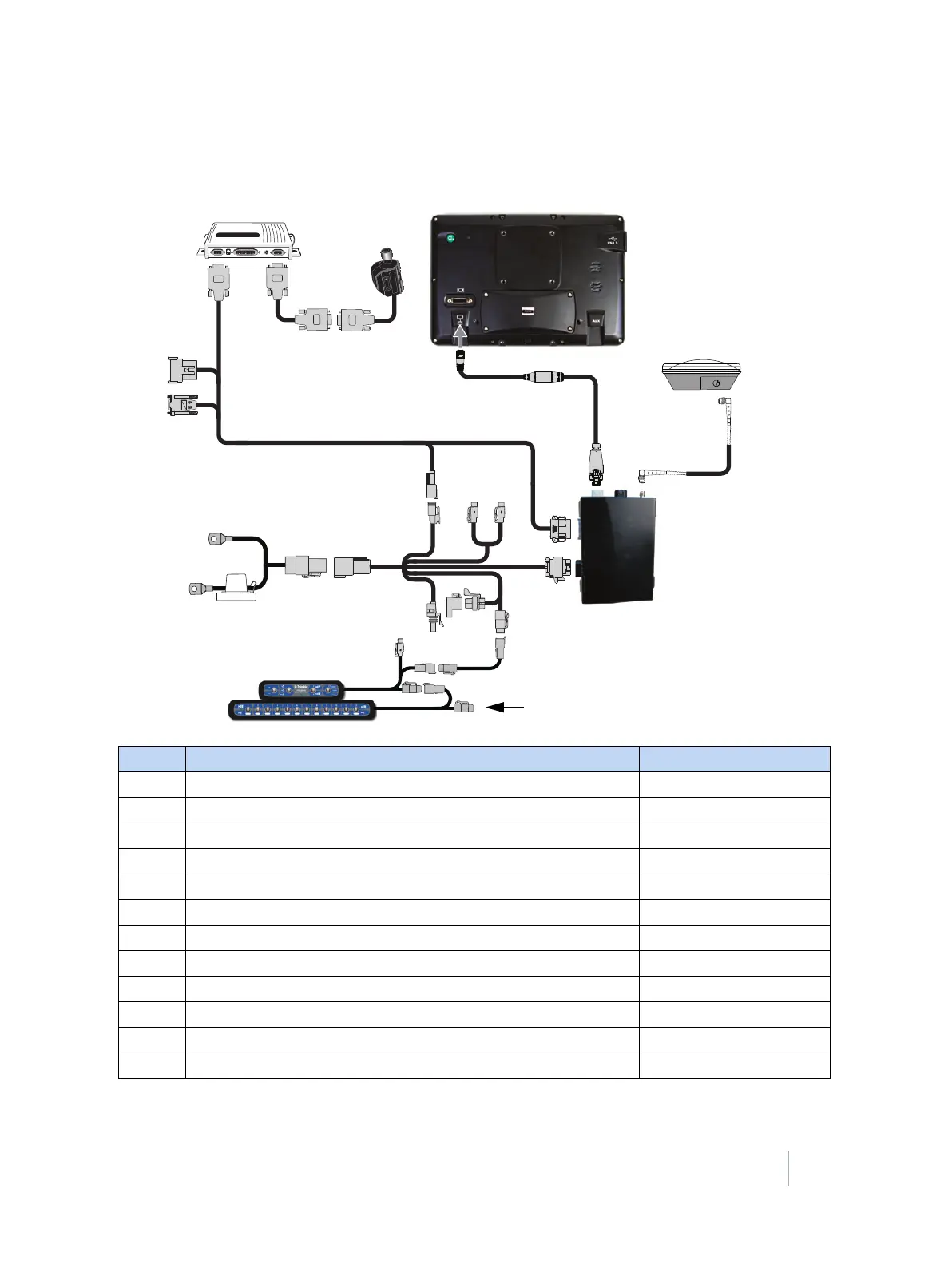

Field-IQ Rate and Section Control cab kit / EZ-Steer
system
Item Description Trimble part number
❶ TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
❺ TM-200 Module battery cable 92905
❻ AG-25 GNSS antenna to TM-200 Module cable 50449
❼ AG-25 GNSS antenna 77038-01
❽ TM-200 Module to EZ-Steer controller cable 75742
❾ EZ-Steer T2 controller 53348-10
❿ EZ-Steer controller to motor cable 53058-00
⓫ EZ-Steer motor 62257
⓬ Steering Sensor Extension cable and Field-IQ Switch Box Extension 55656
p
o
n
c
e
h
g
f
i
d
j
l
m
k
To Field-IQ platform kit
