Trimble TMX-2050 - Field-IQ Rate and Section Control cab kit; Autopilot system

TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
5 – Connecting the Field-IQ Crop Input Control Systems
35
Field-IQ Rate and Section Control cab kit/ Autopilot
system
The Autopilot system requires the NavController II ⓭.
Field-IQ Rate and Secon Control requires the Field-IQ master switch box ❽. The 12-switch box ❾
may also be used.

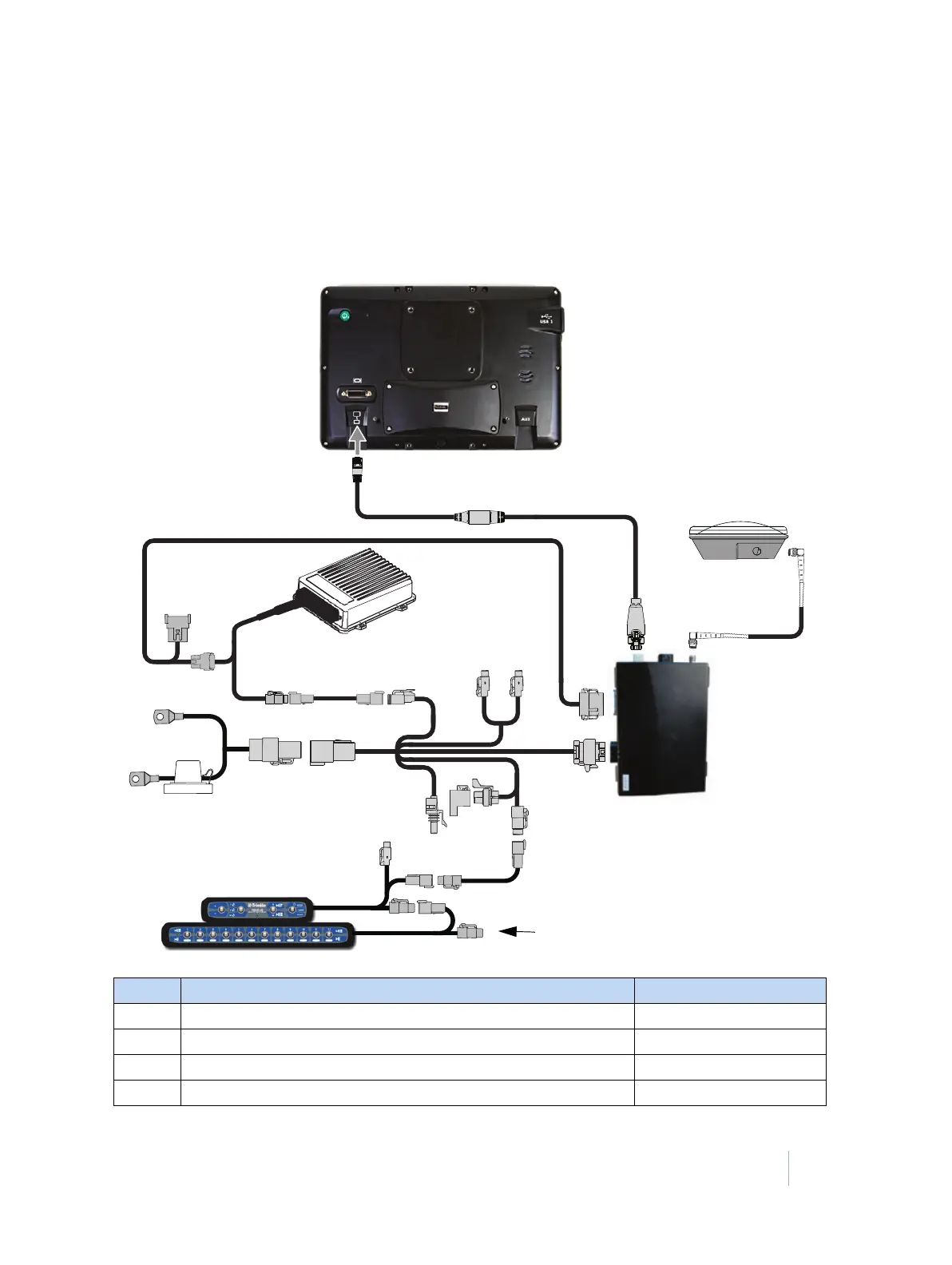

Item Description Trimble part number
❶ TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
c
e
h
g
f
i
d
m
p
l
k
o
n
j
To Field-IQ platform kit
