TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
1 – Components and Cable Configuration Guidelines
8

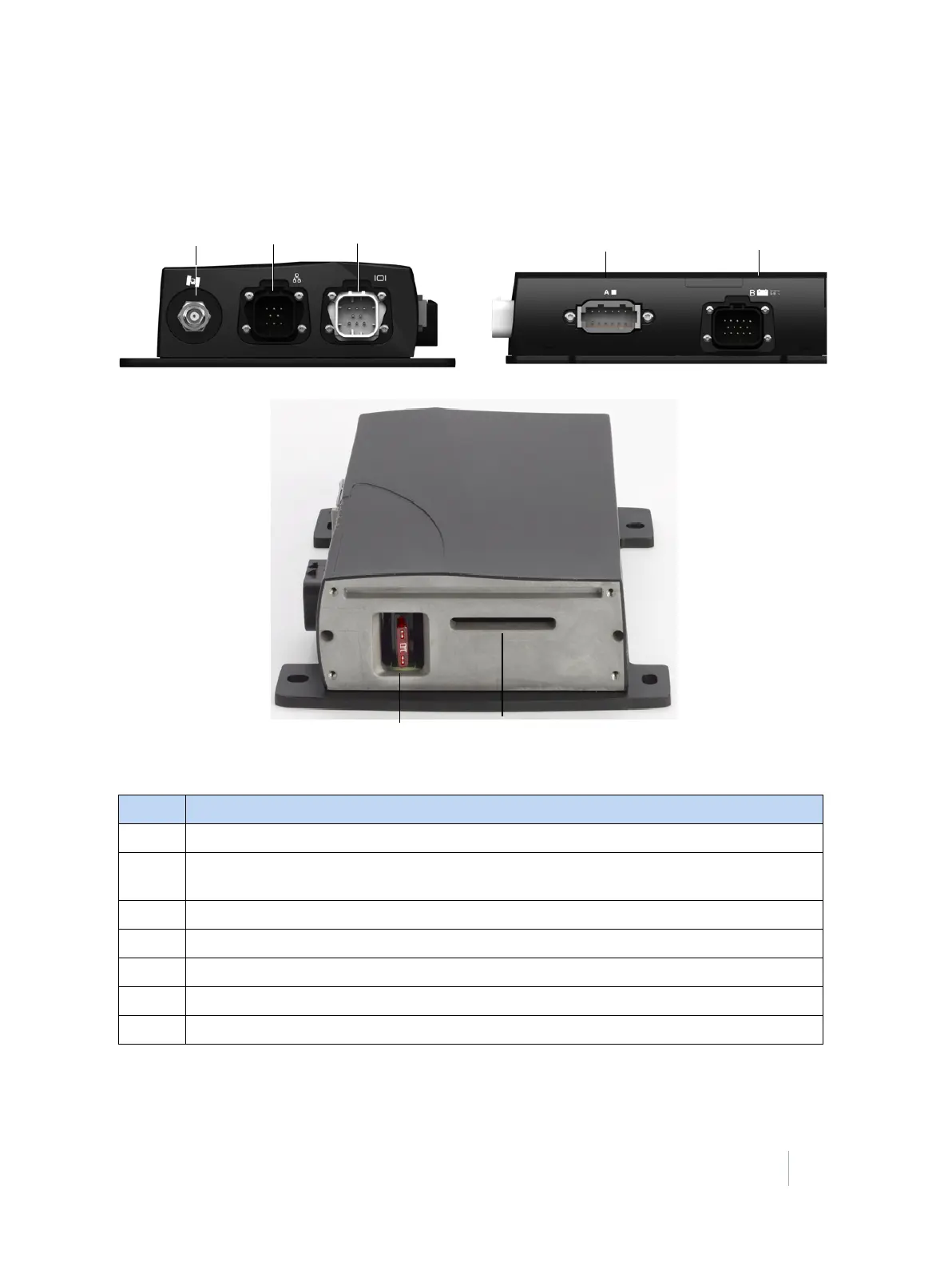

TM-200 Module
The TM-200 Module has multiple power and input/output connections, with only one connection to
the TMX-2050 display. This enables you to quickly detach the display without removing all other
connections.
Note – The TM-200 Module provides two CAN connections. If your configuration requires additional
CAN connections, you can connect another TM-200 module to your primary one.
Item Description
❶ AG-25 GNSS antenna connector
❷ 8-pin AMPSEAL Ethernet expansion port (for connecting to a DCM-300 modem or a second
TM-200 Module)
❸ 8-pin AMPSEAL connector port (for connecting to the TMX-2050 display)
❹ 12-pin DEUTSCH connector (Port A)
❺ 14-pin AMPSEAL connector (Port B) power input
❻ 10 A fuse
❼ Radio / receiver expansion slot, see AG-815 integrated radio, page 9
❶
❷
❸
❹
❻
❺
❼
