Trimble TMX-2050 - Autopilot system using SBAS; OmniSTAR; RTX corrections

TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
4 – Connecting to the Autopilot System
26

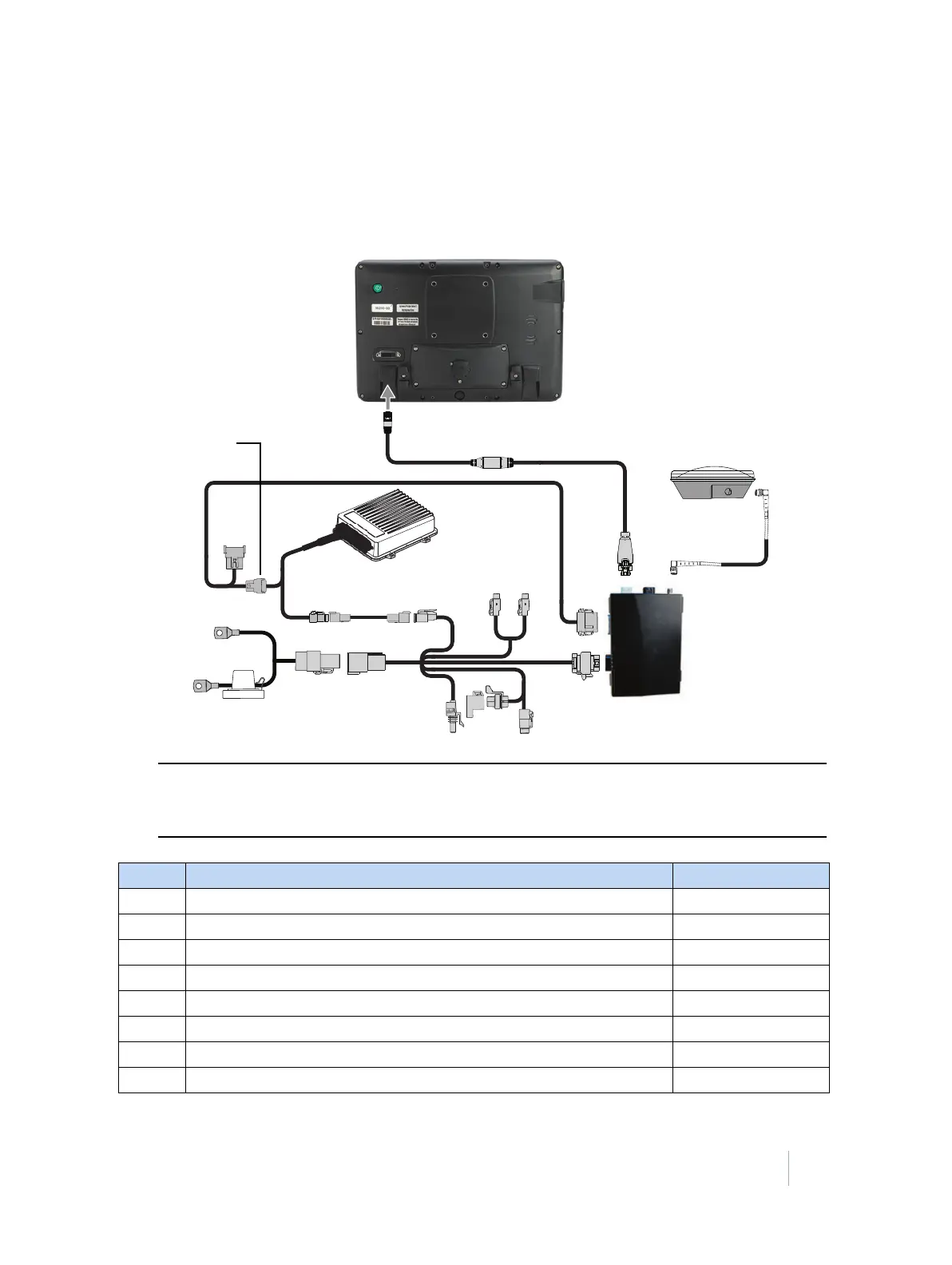

Autopilot system using SBAS / OmniSTAR / RTX
corrections
The Autopilot assisted steering system requires the navigation controller ⓫.
OmniSTAR HP/G2 /RTX corrections rquire a GNSS antenna ❼.
C
CAUTION – Connecting the Port Replicator of the NavController II cable
j
to the P4 or P12
connector of the NavController II harness
l
will result in damage to the equipment, and will
void the warranty,
Item Description Trimble part number
❶ TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
❺ TM-200 Module battery cable 92905
❻ AG-25 GNSS antenna to TM-200 Module cable 50449
❼ AG-25 GNSS antenna 77038-01
❽ TM-200 Module (port A) to NavController II cable with port replicator 75741
c
e
h
g
f
i
d
m
l
k
j
P3 / GPS
connector
