TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
3 – Connecting to the EZ-Steer / EZ-Pilot System
24
EZ-Pilot steering system

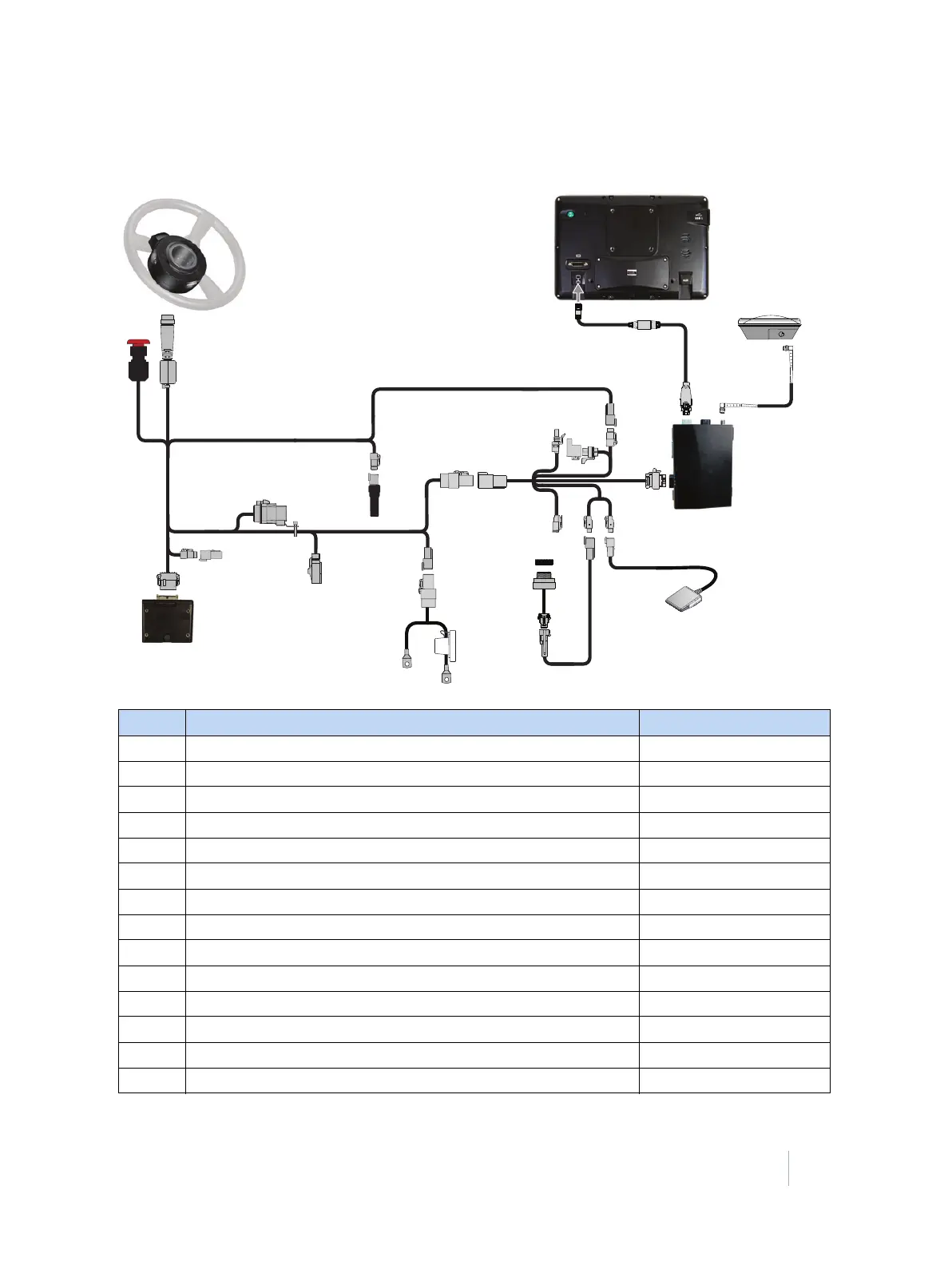

This figure shows how to connect the display with the Trimble EZ-Pilot® steering system:
Item Description Trimble part number
❶ TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
❺ TM-200 Module battery cable 92905
❻ AG-25 GNSS antenna to TM-200 Module cable 50449
❼ AG-25 GNSS antenna 77038-01
❽ IMD-600 unit 83390-00
❾ SAM-200 motor 83382-00
❿ IMD-600 unit to SAM-200 motor to CAN and power 76351
⓫ CAN bus terminator 59783
⓬ Sonalert 43104
⓭ Display to Sonalert cable (P5 connector only) 94121
⓮ EZ-Pilot foot switch remote engage (P6 connector only) 78150-00
c
e
h
g
f
i
d
n
o
m
l
j
k
p
