TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
4 – Connecting to the Autopilot System
32

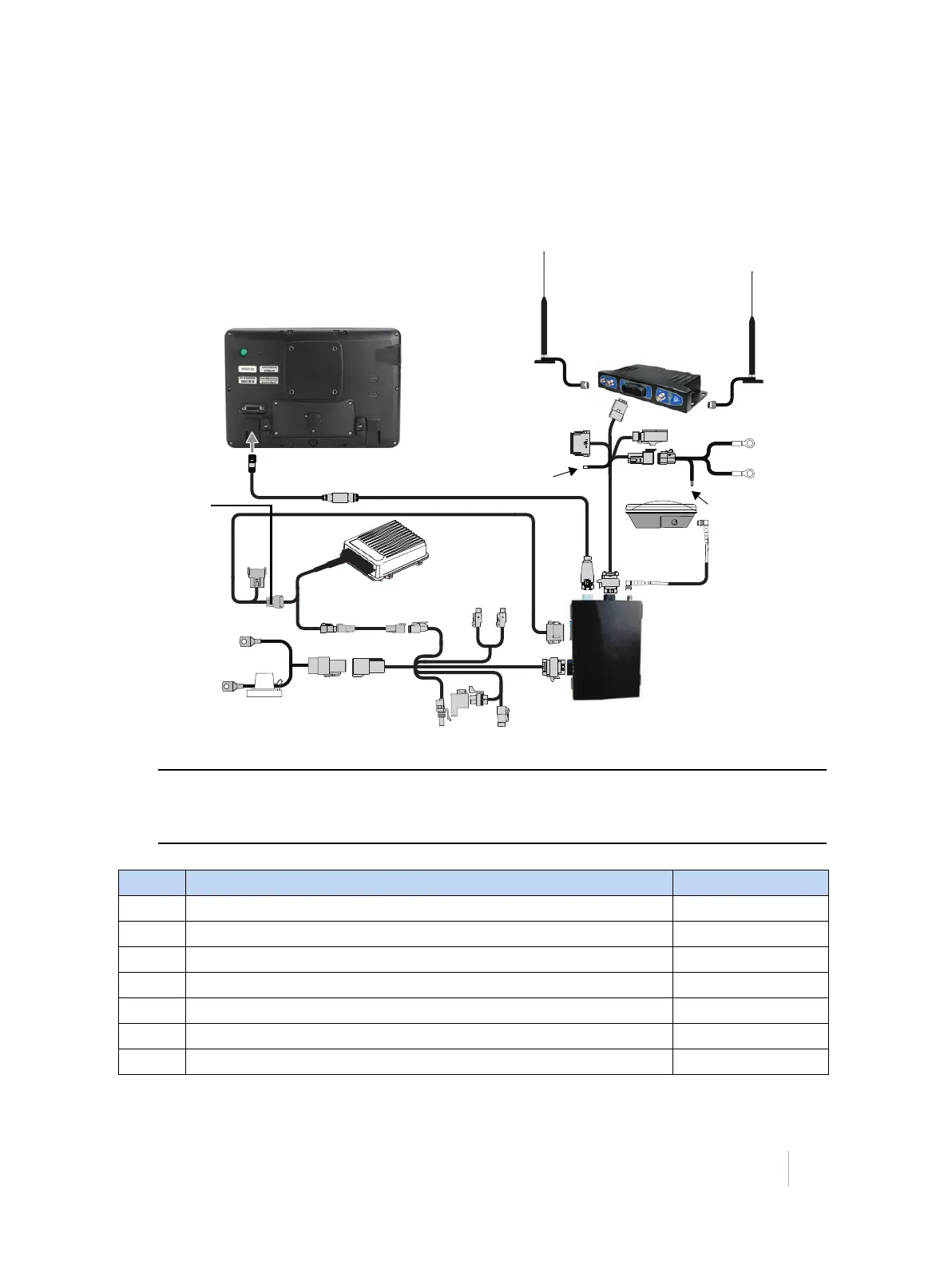

Autopilot system using VRS corrections with a
DCM-300 modem
The Autopilot assisted steering system requires the navigation controller ⓯.
VRS corrections require a DCM-300 modem ❾.
C
CAUTION – Connecting the Port Replicator of the NavController II cable ⓮ to the P4 or P12
connector of the NavController II harness
⓭ will result in damage to the equipment, and will
void the warranty.
Item Description Trimble part number
❶ TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
❺ TM-200 Module battery cable 92905
❻ AG-25 GNSS antenna to TM-200 Module cable 50449
❼ AG-25 GNSS antenna 77038-01
c
e
h
g
f
i
k
j
n
o
m
l
d
q
p
P3 / GPS
connector
To vehicle ignition
To vehicle
source
chassis ground
