TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
3 – Connecting to the EZ-Steer / EZ-Pilot System
20

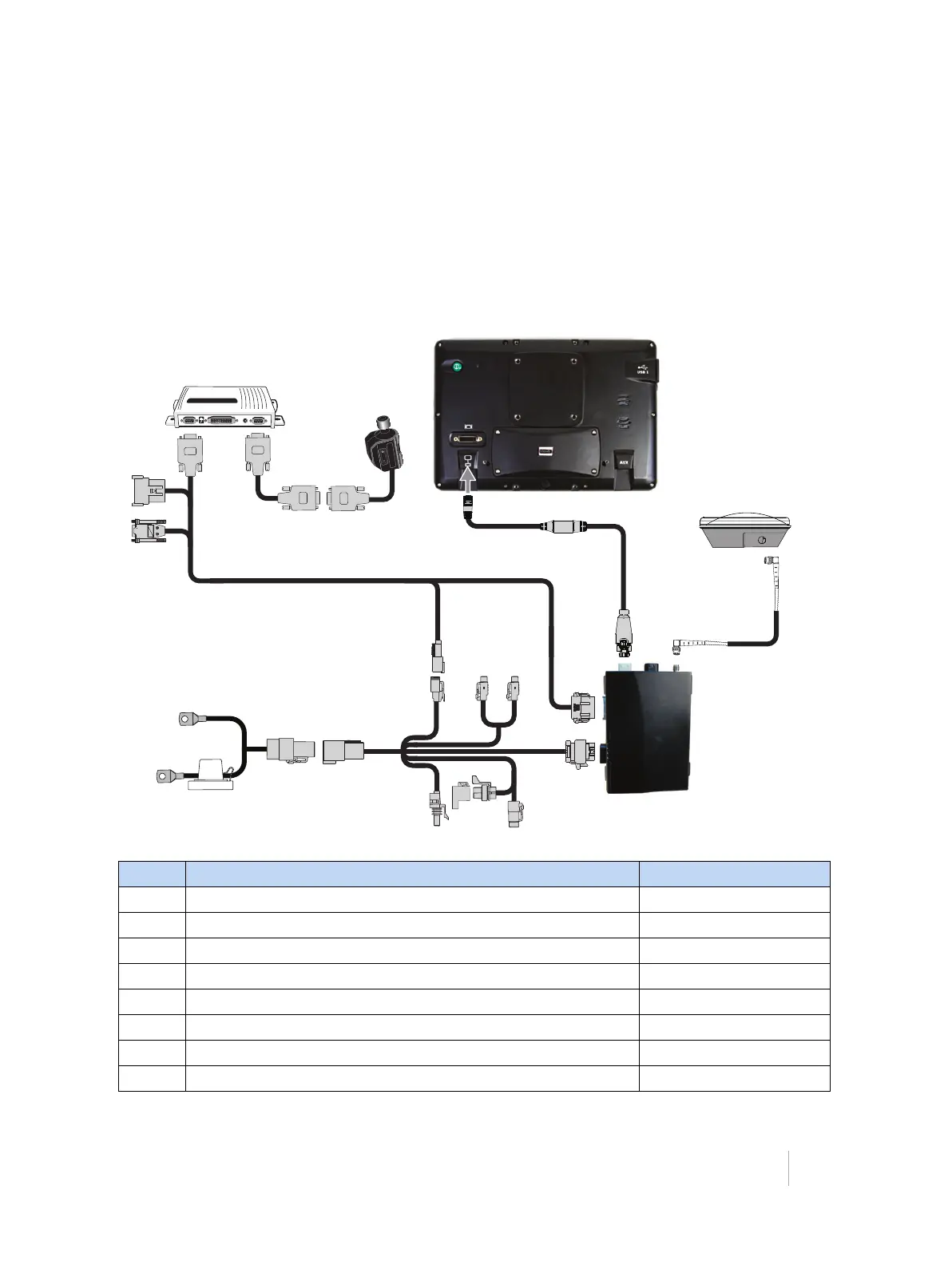

EZ-Steer system using SBAS / RangePoint RTX /
CenterPoint RTX / OmniSTAR HP|G2 corrections
The EZ-Steer system requires the navigation controller ❿ and motor ⓬.
SBAS, RangePoint RTX, CenterPoint RTX, and OmniSTAR HP/G2 corrections require a GNSS
antenna ❼.
Note – The EZ-Steer assisted steering system must have a separate power source (such as the
TM-200 Module) to power the EZ-Steer motor
⓬.
Item Description Trimble part number
❶ TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
❺ TM-200 Module battery cable 92905
❻ AG-25 GNSS antenna to TM-200 Module cable 50449
❼ AG-25 GNSS antenna 77038-01
❽ TM-200 Module to EZ-Steer controller cable 75742
c
e
h
g
f
i
d
j
lm
k
