TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
5 – Connecting the Field-IQ Crop Input Control Systems
41
Field-IQ Rate and Section Control cab kit/ Sprayer full
platform kit

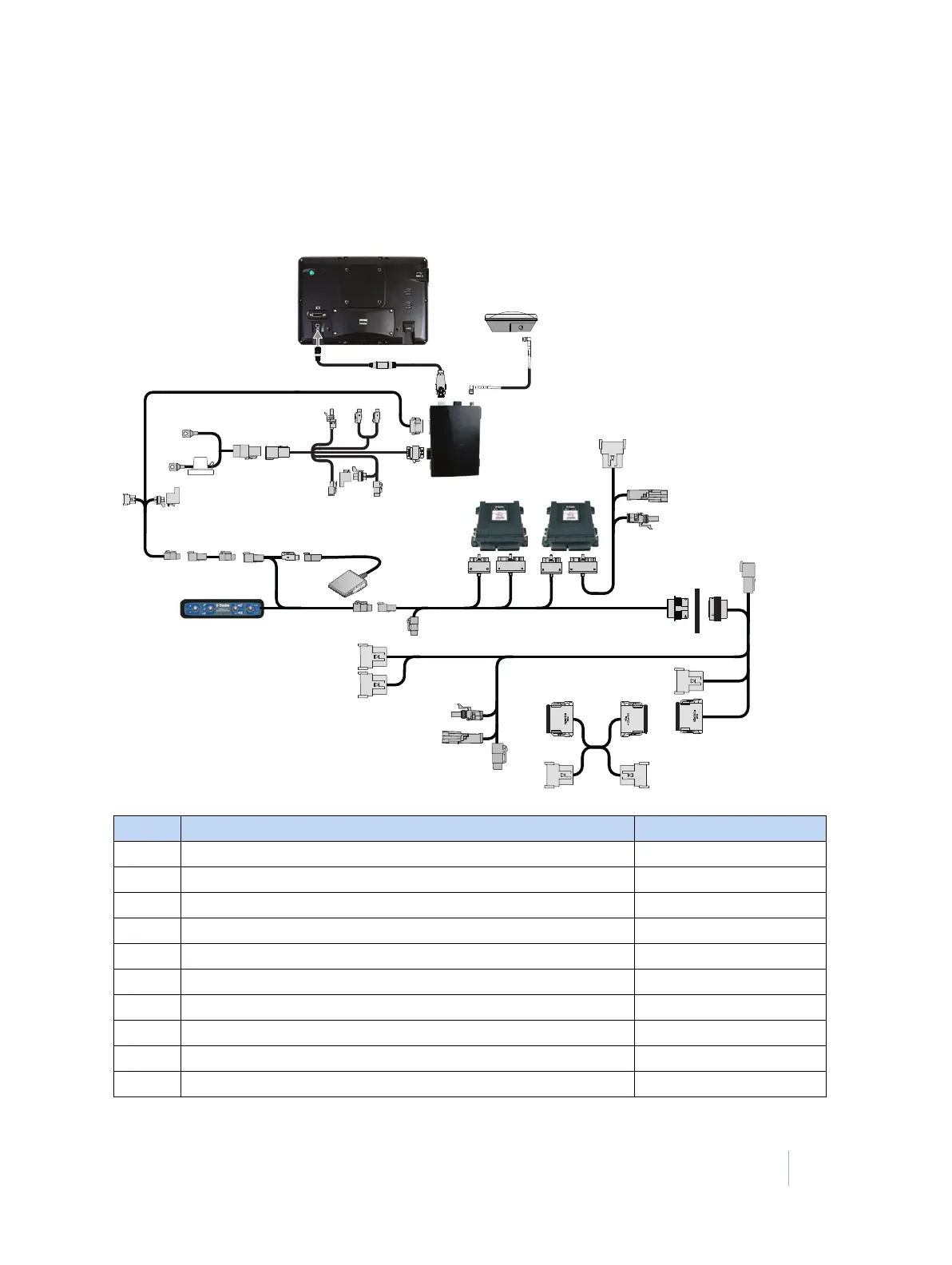

This figure shows how to connect the display with the Field-IQ rate and section control system to
sprayers.
Item Description Trimble part number
❶
TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
❺ TM-200 Module battery cable 92905
❻ AG-25 GNSS antenna to TM-200 Module cable 50449
❼ AG-25 GNSS antenna 77038-01
❽
TM-200 Module to Field-IQ cable 75834
❾ Steering Sensor Extension cable and Field-IQ Switch Box Extension 55656
❿ Field-IQ master switch box 75050-01
c
e
h
g
f
i
d
op
m
l
q
n
r
s
j
k
