Trimble TMX-2050 - Manual guidance using CenterPoint VRS or VRSNow corrections

TRIMBLE TMX-2050 DISPLAY CABLING GUIDE
2 – Connecting the Display Only
16

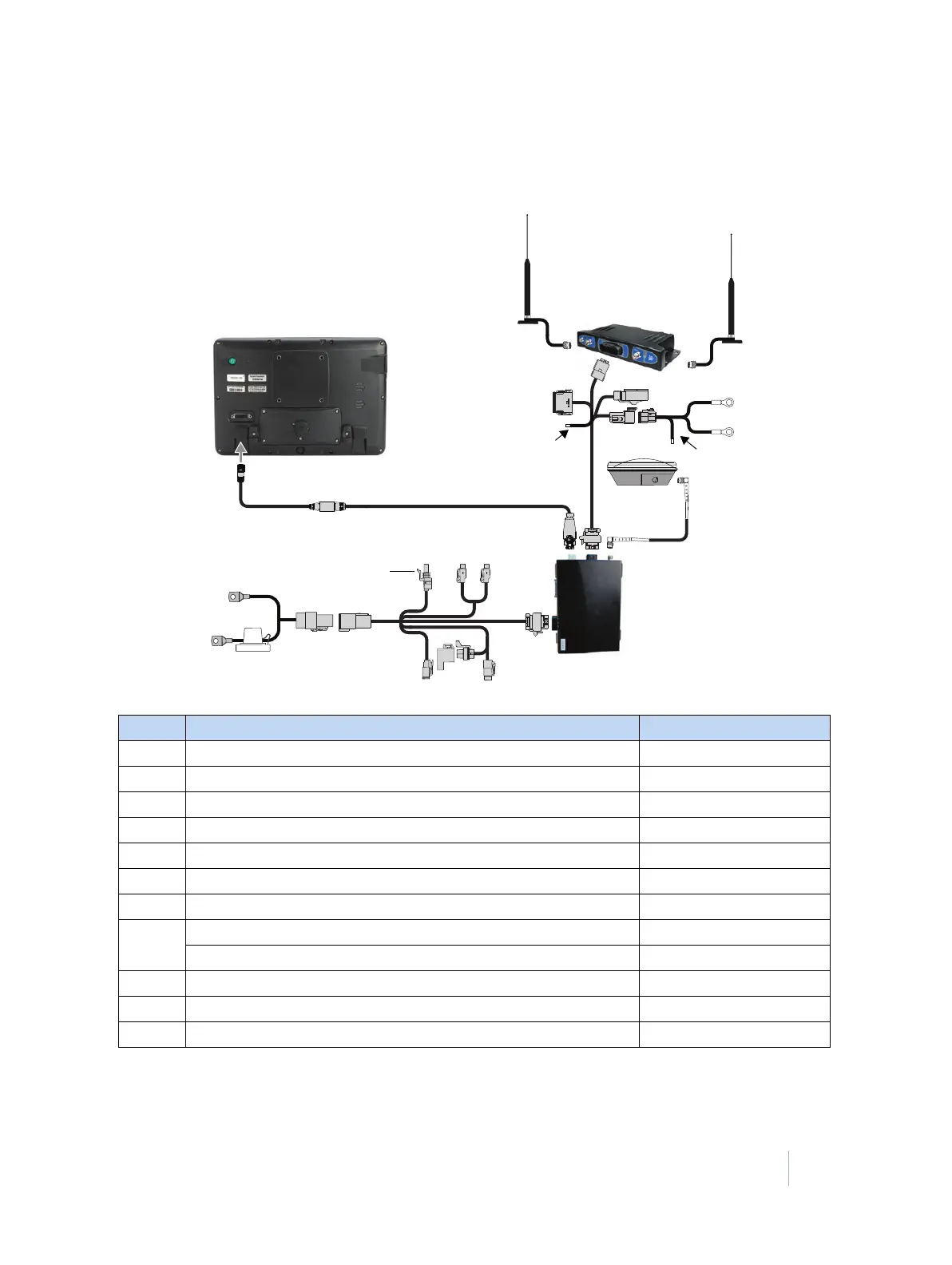

Manual guidance using CenterPoint VRS or VRSNow
corrections
CenterPoint VRS™ or VRSNow™ corrections require the DCM-300 modem ❾.
Item Description Trimble part number
❶ TMX-2050 display 96700-00
❷ TM-200 Module to display cable 93843
❸ TM-200 Module 95060-00
❹ TM-200 Module power and I/O cable connected to port B 92676
❺ TM-200 Module battery cable 92905
❻ AG-25 GNSS antenna to TM-200 Module cable 50449
❼ AG-25 GNSS antenna 77038-01
❽ DCM-300 cellular antenna 72122
DCM-300 cellular antenna 51227
❾ DCM-300 cellular modem 80632-xx
❿ DCM-300 modem to TM-200 Modem to power cable 94267
⓫ WiFi antenna 83700-05
d
c
e
h
g
f
i
k
j
m
l
To vehicle ignition
To vehicle
ground
source
chassis
To vehicle ignition
