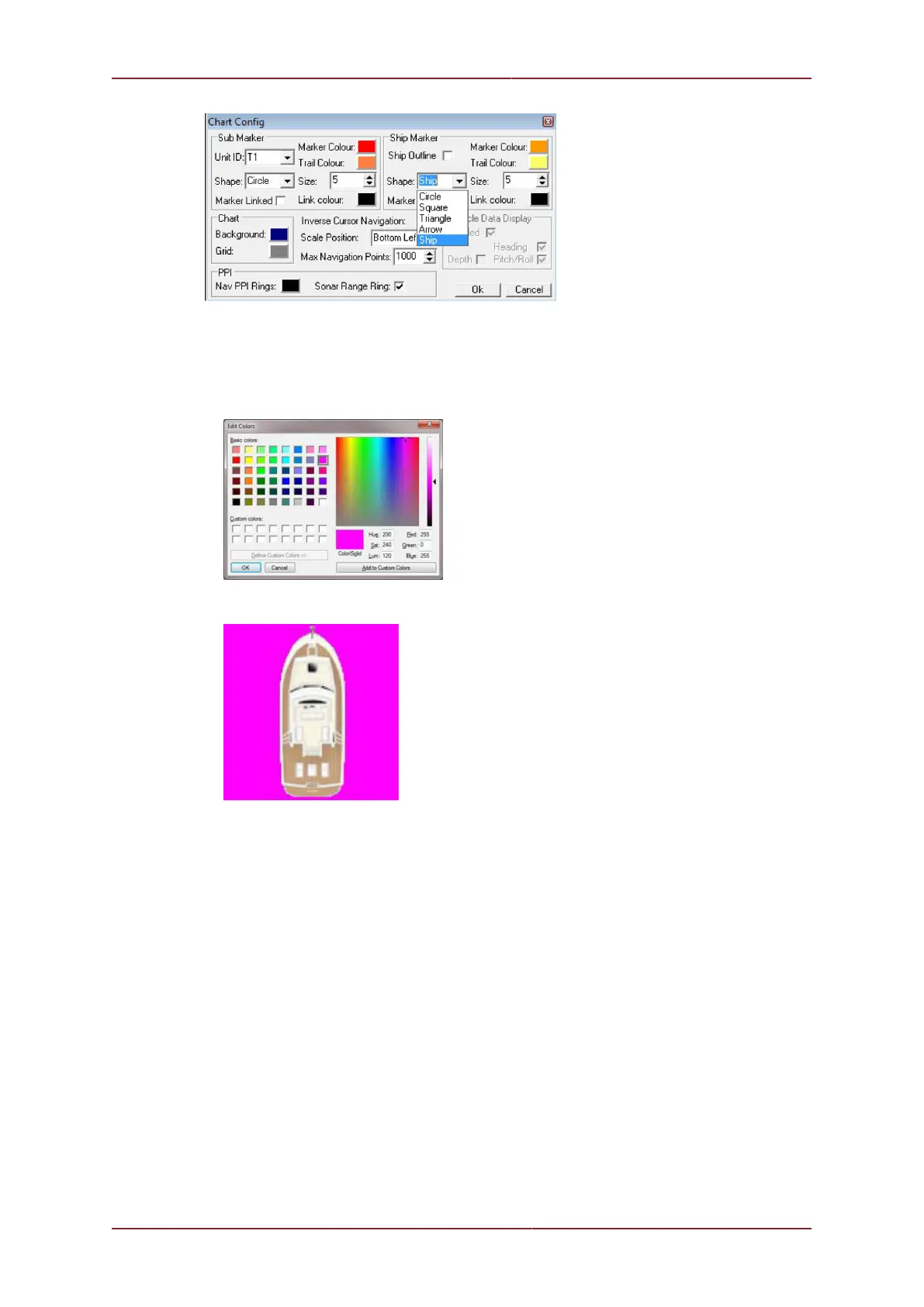

3. The boat.bmp file has the following constraints:
a. Image must be square (e.g. 100 x 100 pixels) and can be any sensible size.
b. Image background must be fuchsia (colour #FF00FF), e.g.
c. Bow must be top centre, e.g. as follows:
4. The scaling of the boat image will be applied from the MicronNav Job settings. As the
boat image is square then only one dimension needs to be used for the scaling and this
is the ‘Length’ value.
