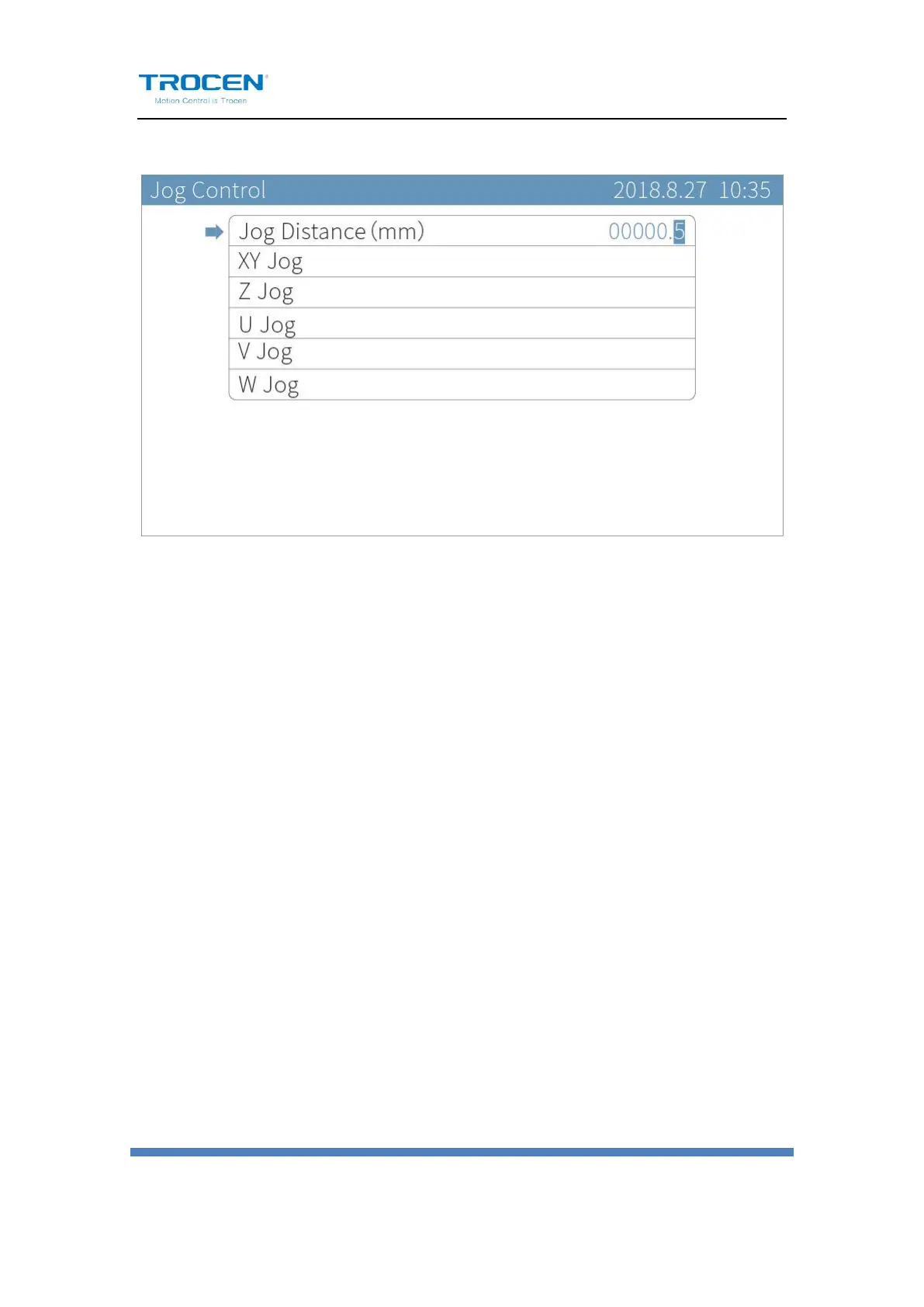

Fiugre6-3-1 Jog Control Interface
6.4 Cut Box
On the main page, press【Menu】and move cursor to【Cut Box】, press
【Enter】to enter the Cut Box page. Move cursor to【Blank Distance】,
and press number keys to modify parameters, then move cursor to【Start
cutting box】and press【Enter】to start cut box function.
When cutting box, the laser head keeps a certain distance (Blank Distance)
from the outside edge of the graphics s from the registration point, and
cuts a square, which is used to determine the location of the origin point
of the laser head and the actual size of graphics.

Trocen AWC708C Plus Specifications

General

Model	AWC708C Plus
Supported Laser Types	CO2 Laser
Communication Interface	USB, Ethernet
Control Software	LaserCAD
Compatible Operating Systems	Windows XP/7/8/10
Operating Voltage	24V DC
Control Signal	PWM
Axes	3
File Format	DST, PLT, BMP, DXF, AI
Control System	DSP
Input Voltage	DC 24V
