Trocen AWC708C Plus User Manual

AWC708C PLUS Motion Control User Manual
WWW.SZTROCEN.COM
62

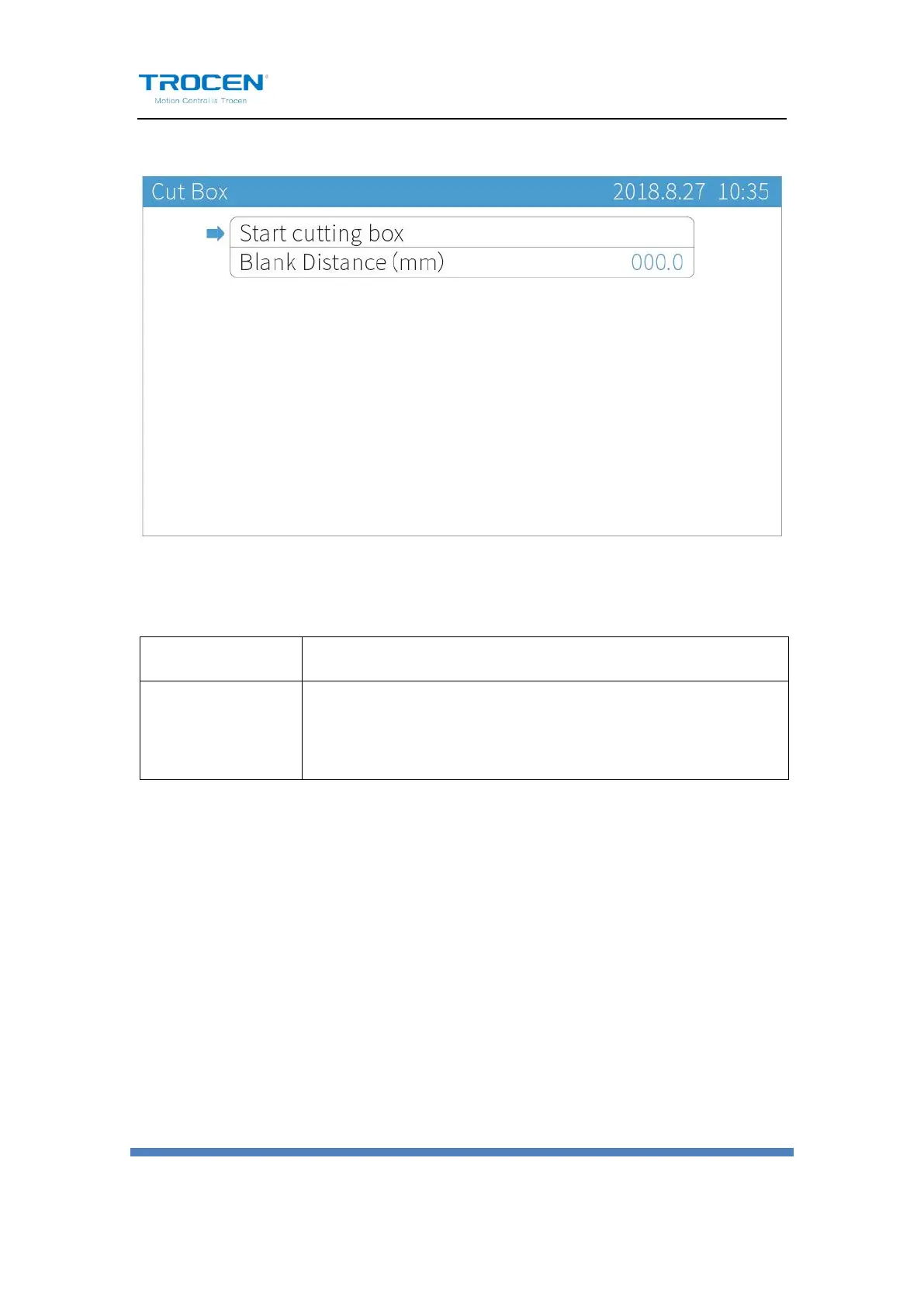

Fiugre6-4-1 Cut Box Interface
Table6-4-1 Cut Box Instruction
Name
Instruction
Blank Distance
(mm)
The distance between the border of graphics s and the border
of cutting.
6.5 Axes Control
On the main page, press【Menu】and move cursor to【Axes Control】,
press【Enter】to enter Axes Control page. Press【↑】【↓】to move cursor,
and press【Enter】to make axis reset.
The Z axis can be used as the lifting shaft, platform lifting shaft and multi-
head shifting shaft. When the Z axis is reset, the Z axis will stop at the

Trocen AWC708C Plus Specifications

General

Model	AWC708C Plus
Supported Laser Types	CO2 Laser
Communication Interface	USB, Ethernet
Control Software	LaserCAD
Compatible Operating Systems	Windows XP/7/8/10
Operating Voltage	24V DC
Control Signal	PWM
Axes	3
File Format	DST, PLT, BMP, DXF, AI
Control System	DSP
Input Voltage	DC 24V
