AWC708C PLUS Motion Control User Manual
WWW.SZTROCEN.COM
19

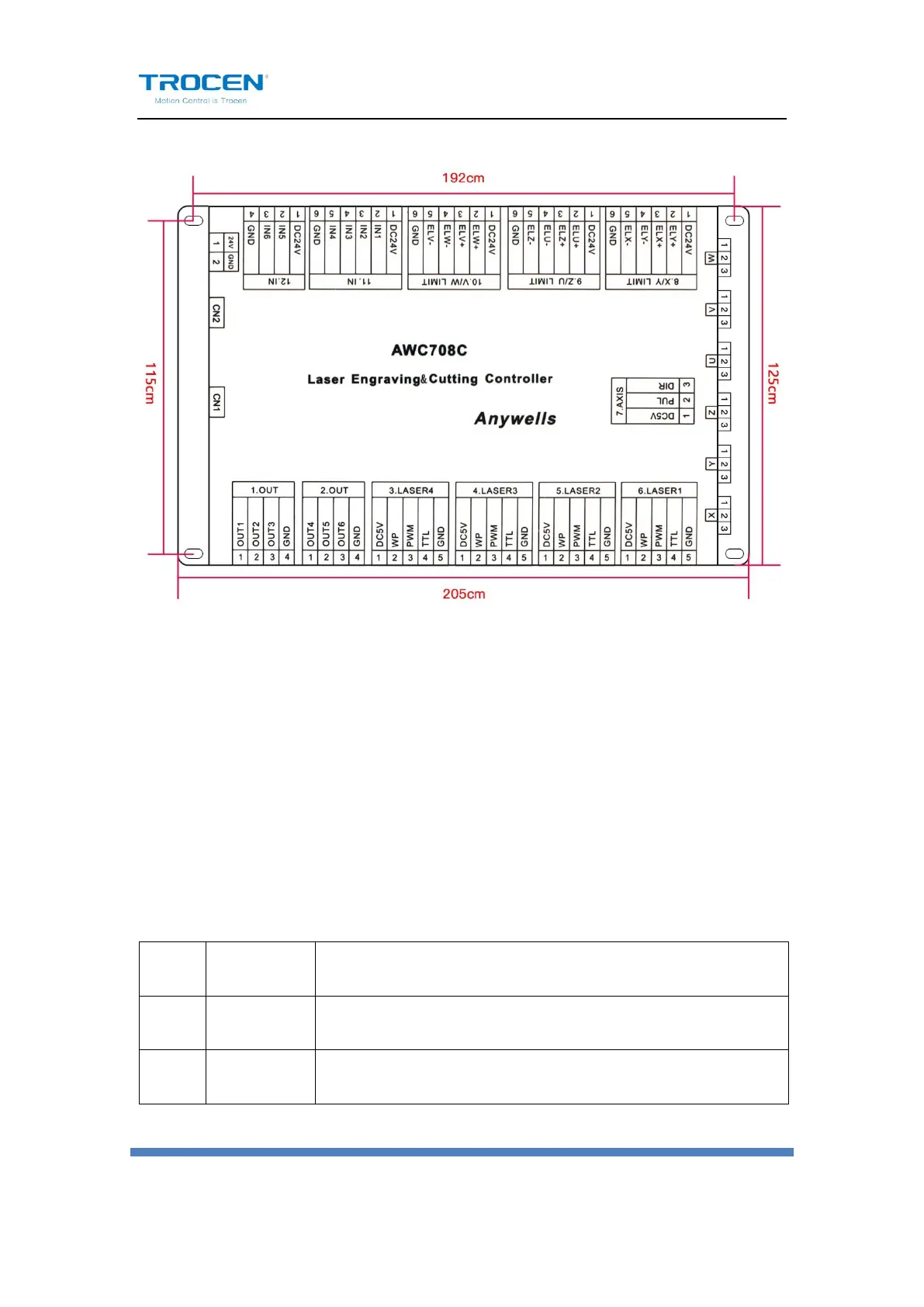

Figure1-6-2 Wiring Board Ports Introduce
1.6.2 Port Instruction
1.6.2.1 Power Supply Port
The power supply ports provide power to wiring board and panel. Please
pay more attention to polarity when connect them. Don’t make the
polarity reverse.
Table1-6-1 Instruction of Wiring Board Power Supply Port
Pin
Name
Introduction
1
+24V
24V positive polarity.
2
GND
Negative pole.
