If enable this function, when power on or reset the machine,
the W axis will reset to origin point.
7.5 HardLimit Settings
On the Manufacture Params Settings page, move cursor to【HardLimit
Settings】and press【Enter】. Press【↑】【↓】to move cursor, press【←】
【→】to modify options and press【Enter】to save settings.
AWC708C PLUS supports working range limit, users do not need to install
hard limiter in general, just set the【Range】on the axis parameters page.

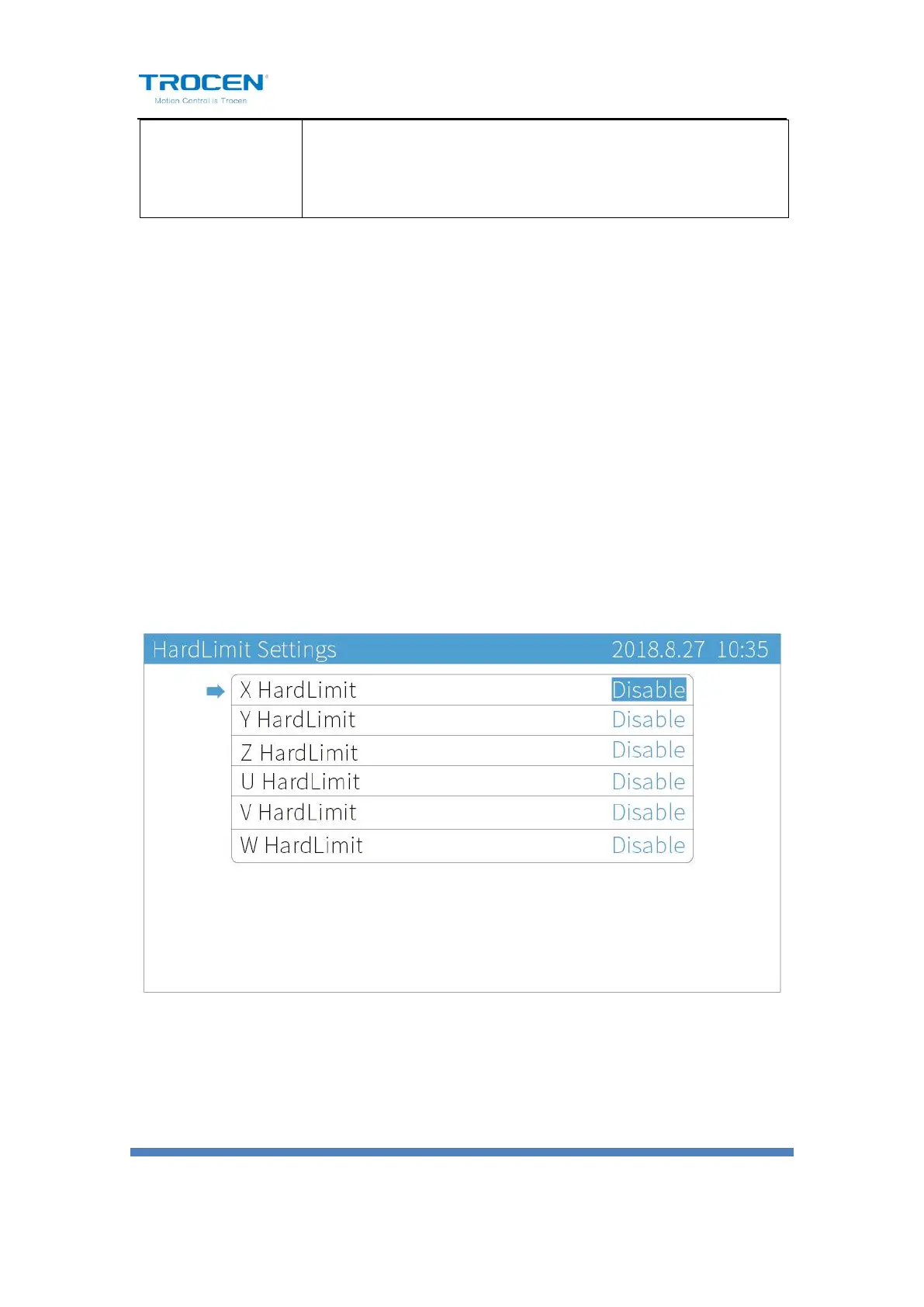

Figure7-5-1 HardLimit Setting Interface
