⚫ Figure 3-1-1 shows the diagram of ordinary glass tube laser.
⚫ Connect the blow control ports to corresponding electromagnetic
valves to control blow.
⚫ Connect the axis limit ports to corresponding axis limiters.
⚫ Please refer to the Chapter 1.6.2.6 to know more detail about
X/Y/Z/U/V/W motor driver connection. When multi-head cutting, the
laser head 1/2/3/4 are controlled separately by X/Z/V/W driver.
3.2 Input Test
On the main page, press【Stop】and press【Menu】two times at the same
time, you will see the Input Test interface.

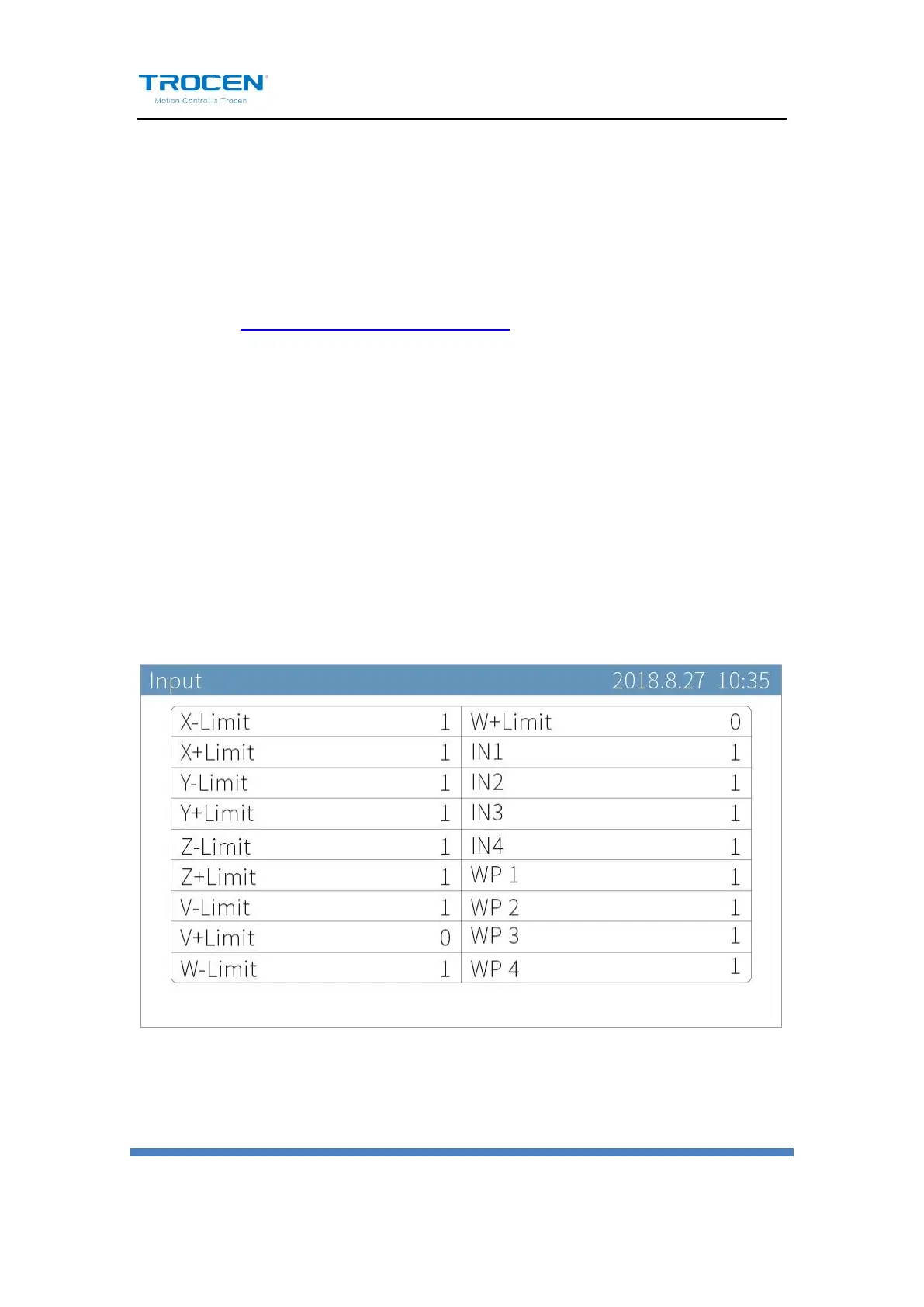

Figure3-2-1 Input Test Interface
According to different types of sensors, you could choose metal products
or other shielding objects to close to the sensors in order to detect
