3. Simplified Installation
The content of this chapter is mainly about the hardware initial installation
of the product and the setting of basic software parameters. Please refer
to the following chapters for the detail settings and descriptions of other
parameters.
3.1 Hardware Connection

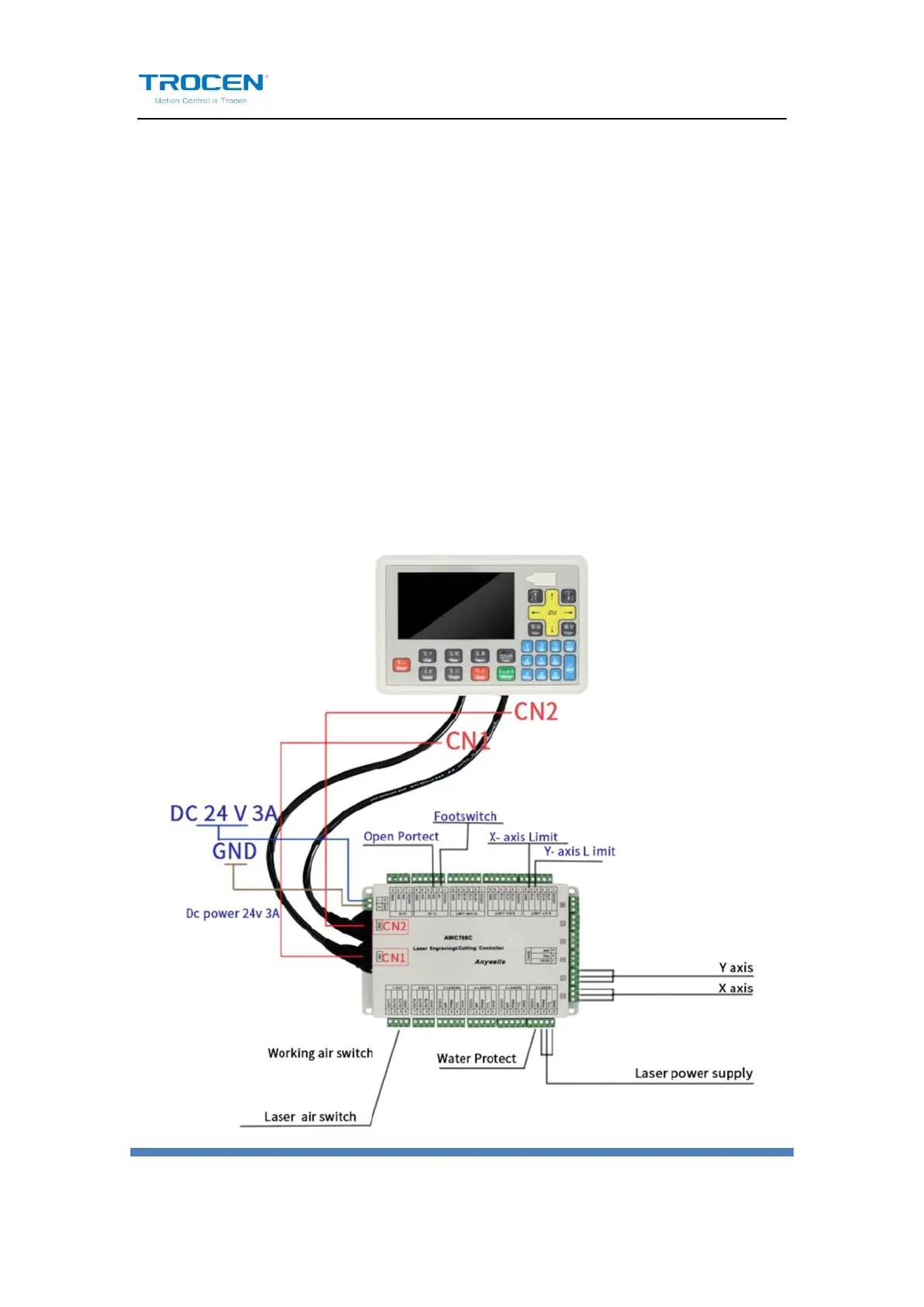

Figure3-1-1 Integral Wiring Diagram
