6. Move the engraving head manually to 725/220 and focus on the table.
7. Measure the distance to the table.
8. Open the lead screw nut fixing rings.
9. Now move the engraving head to 10/60 and rotate the lead screw nut close
to the engraving head until you reach the correct height level of the table.

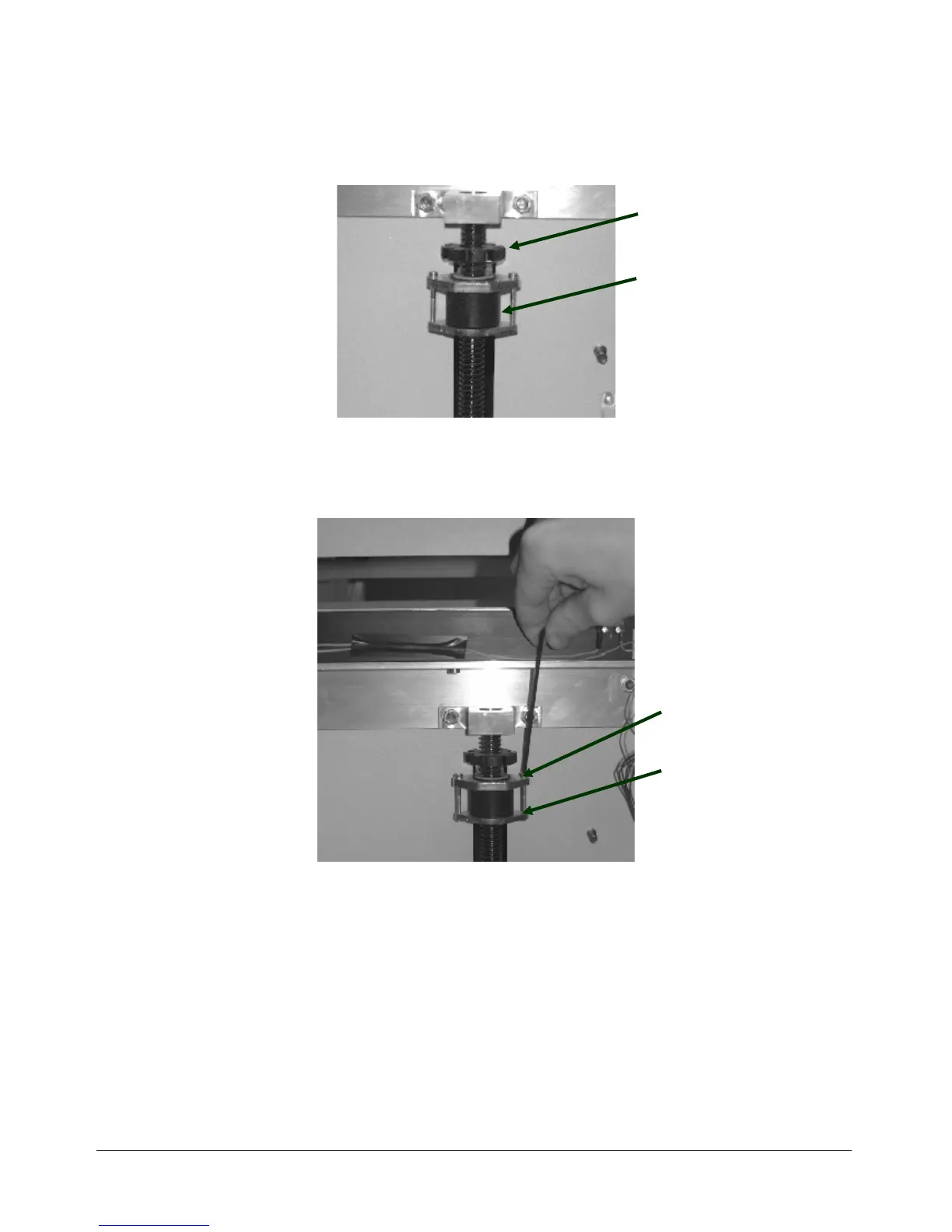

upper lead
screw nut
lead screw
nut
lead screw nut
fixing ring
fixing screw
