Seite 43 von 87
I N D I V I D U A L M A R K I N G
table leveling
10. Do the same at 10/350.
11. For fine tuning repeat the steps 7 to 10.
12. Now tighten the lead screw nut fixing rings again.

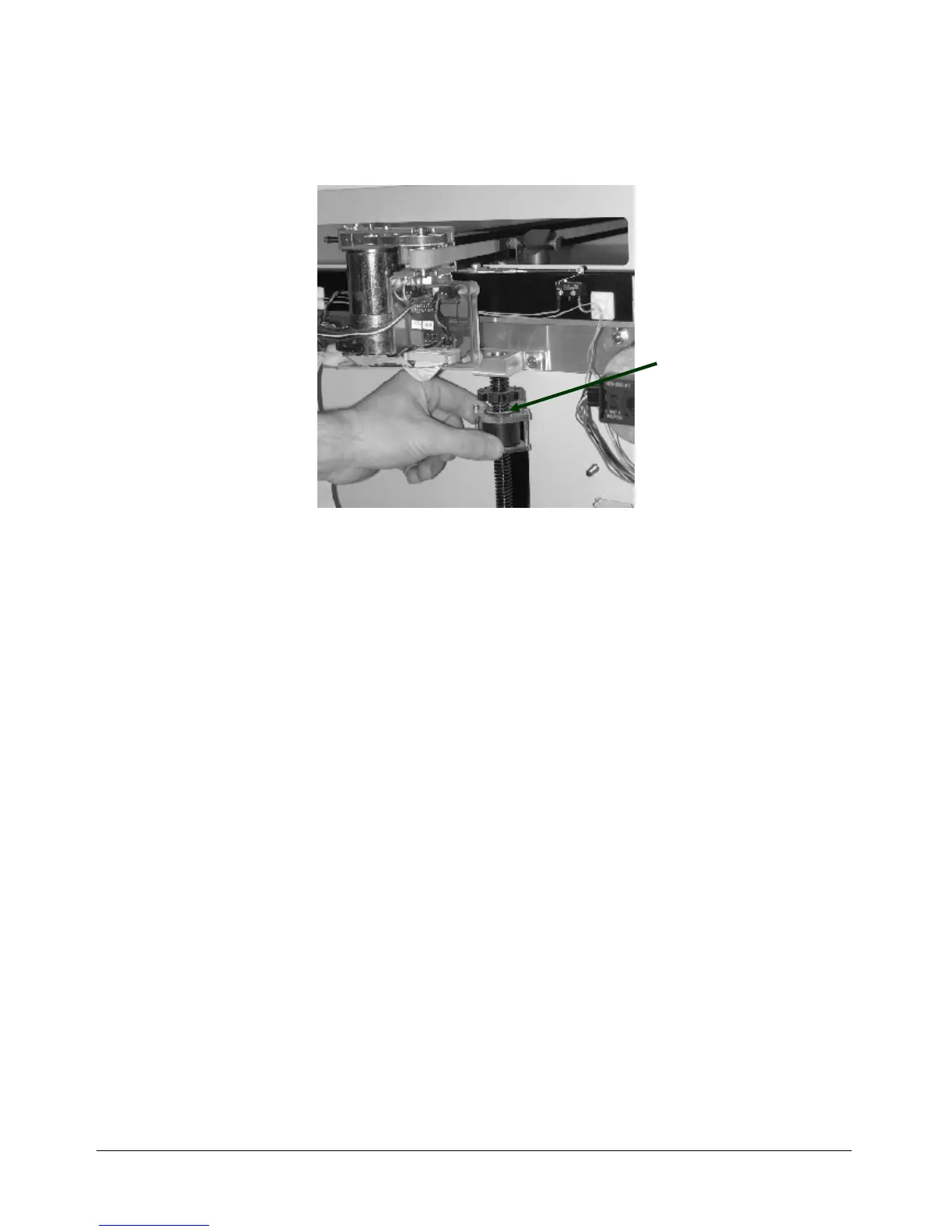

13. Compress the rubber rings (on later versions the steel springs) by rotating
the upper lead screw nuts until you feel that there is enough compression,
then fix their position.
14. Assemble back all remaining components.
rubber ring
