APPLY MAGNALUBE-G
TURNTABLE
NEEDLE THRUST BEARING
THRUST WASHER
CONVERTING THE UNIT FOR SMALL ANGLES
For compacting samples at an angle less than 0.7°, the user must
convert the unit as follows:
4-40 x 1/4” FLATHEAD SCREWS (6)

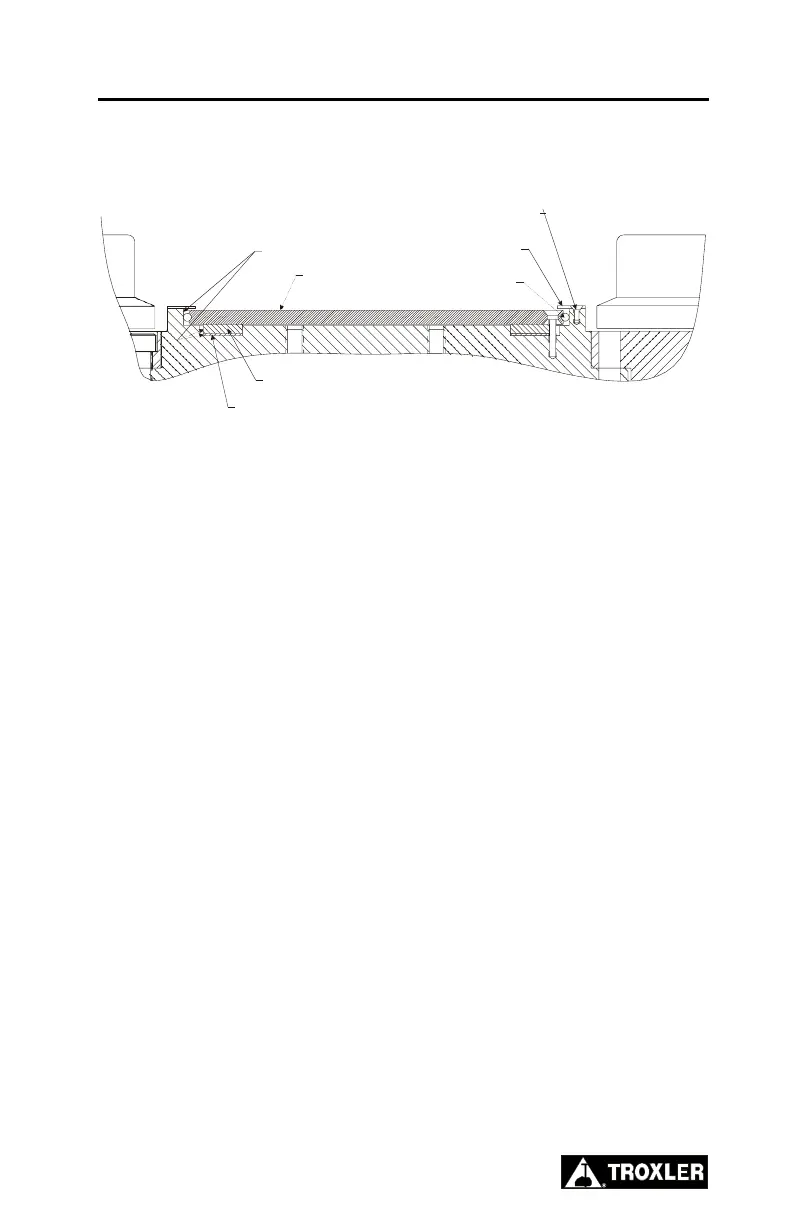

Figure 3-5. Converting the Unit for Small Angles
✓
Remove the six 4-40 x 1/4" flathead screws that attach the
retaining ring to the unit (see Figure 3-5).
✓
Clean the retaining ring with a degreasing cleaner and clean rag.
✓
Remove the turntable by inserting a small screwdriver into one
of the three holes in the turntable and lifting it up. When the
turntable is removed, the bearing may also come out.
✓
If the bearing came out with the turntable, then detach them.
✓
Remove the o-ring that is around the turntable.
✓
Clean the o-ring with isopropyl alcohol and a clean rag.
✓
Set the o-ring aside.
✓
Clean both the turntable and the bearing with a degreasing
cleaner and a clean rag.
✓
Set the bearing aside.
✓
Using a small screwdriver, remove the washer.
