XRS2 and SRS2 EID Stick Reader
Issue 5, 03/2018
39
Th

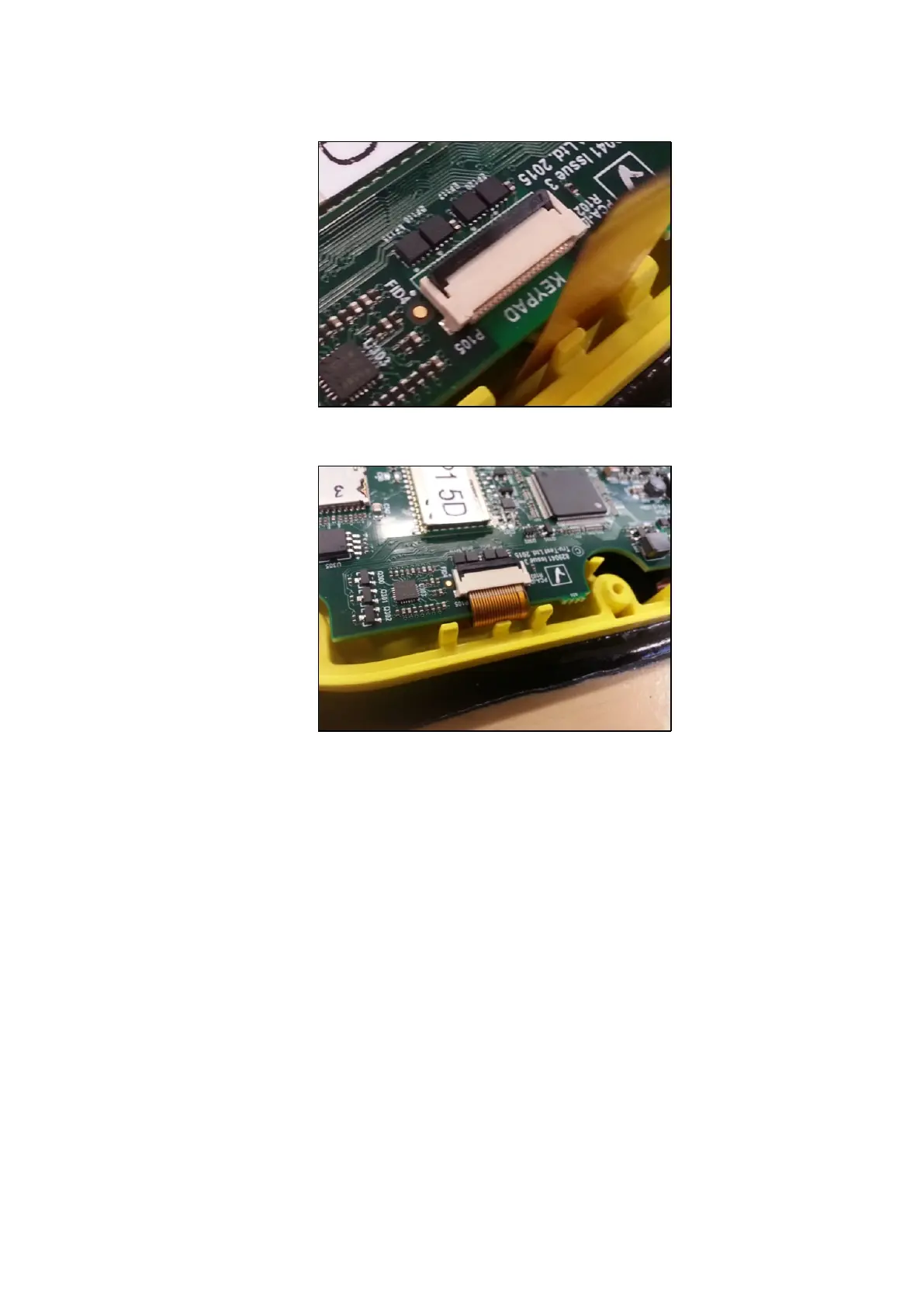

e keypad connector in the open position:
The tail connection in the closed position:
5 Ensure that the FFC is fully engaged and straight before pushing down and engaging the connector's
retention flap.
6 Reconnect the display FFC to the main module. See page 21.
7 Reconnect the battery and USB loom to the main module.
8 Replace the antenna assembly. See page 36.
9 Close the case. See page 31.
