TSC TTP-244 Plus Service Manual

18
TTP-244 Plus Bar Code
Printer Service Manual
7. Move the mechanism in the label feed direction about 5 mm.

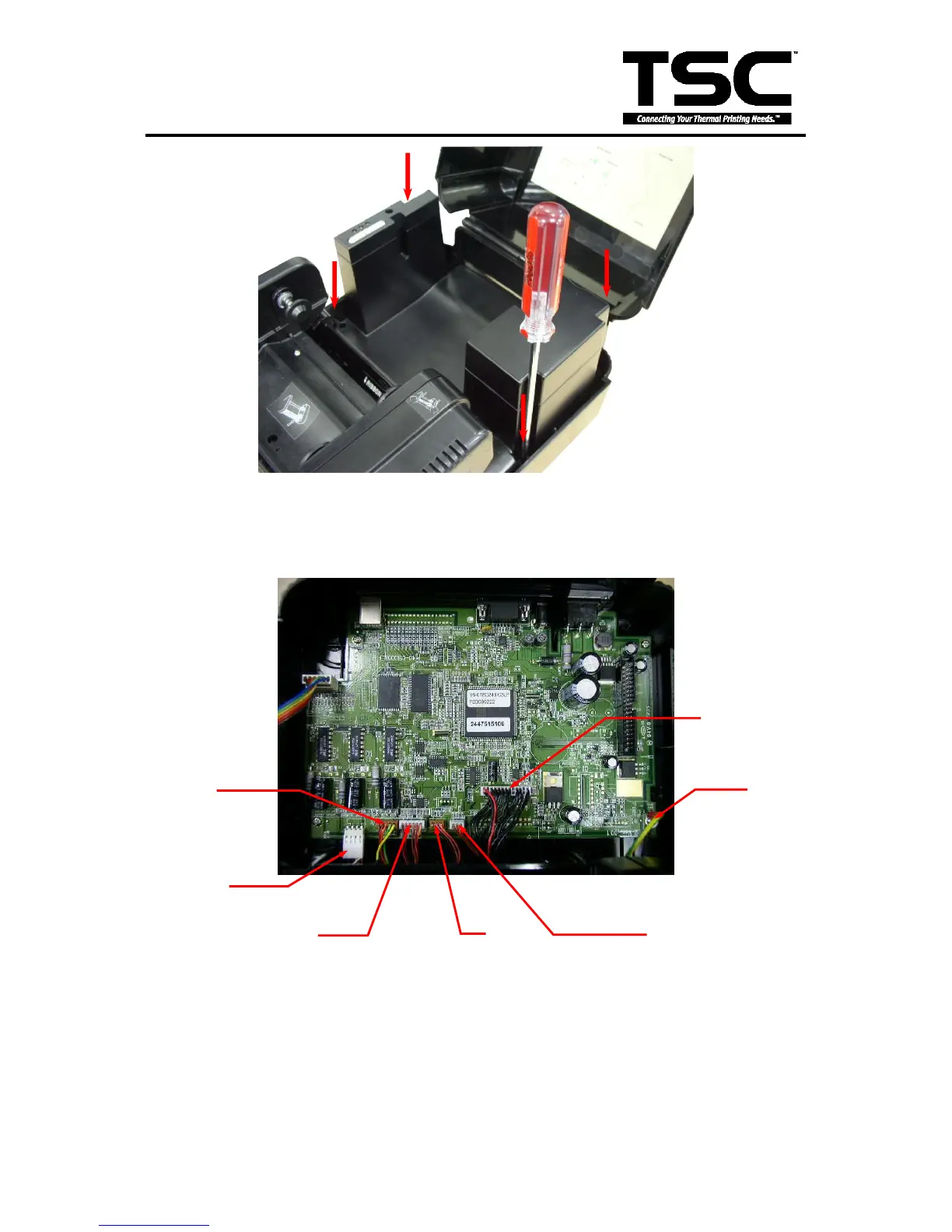

8. Take out the internal label roll mount and remove connectors as below.
9. Remove the screw of ground wire on the mainboard.
10. Take out the mechanism.
Ground Wire
JP14
JP53
JP37
JP46
JP18
JP42

TSC TTP-244 Plus Specifications

General

Resolution	203 dpi
Print Speed	4 ips
Print Method	Thermal Transfer / Direct Thermal
Weight	2.5 kg
Max. Print Width	4.25 inches
Max. Print Length	90 inches
Processor	32-bit RISC CPU
Interface	RS-232
Label Width	1 inch to 4.4 inches
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Humidity	25% to 85% non-condensing
Label Thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
